Fluke 5725A - Accessing the High Voltage Amplifier (A3); Correct Way to Dress Cables

5725A
Instruction Manual
6-12
CURRENT
AMPLIFIER
(A2)
BRIDGE
RECTIFIER
HEAT SINK
DRESS CABLES
AS SHOWN
aq18f.eps

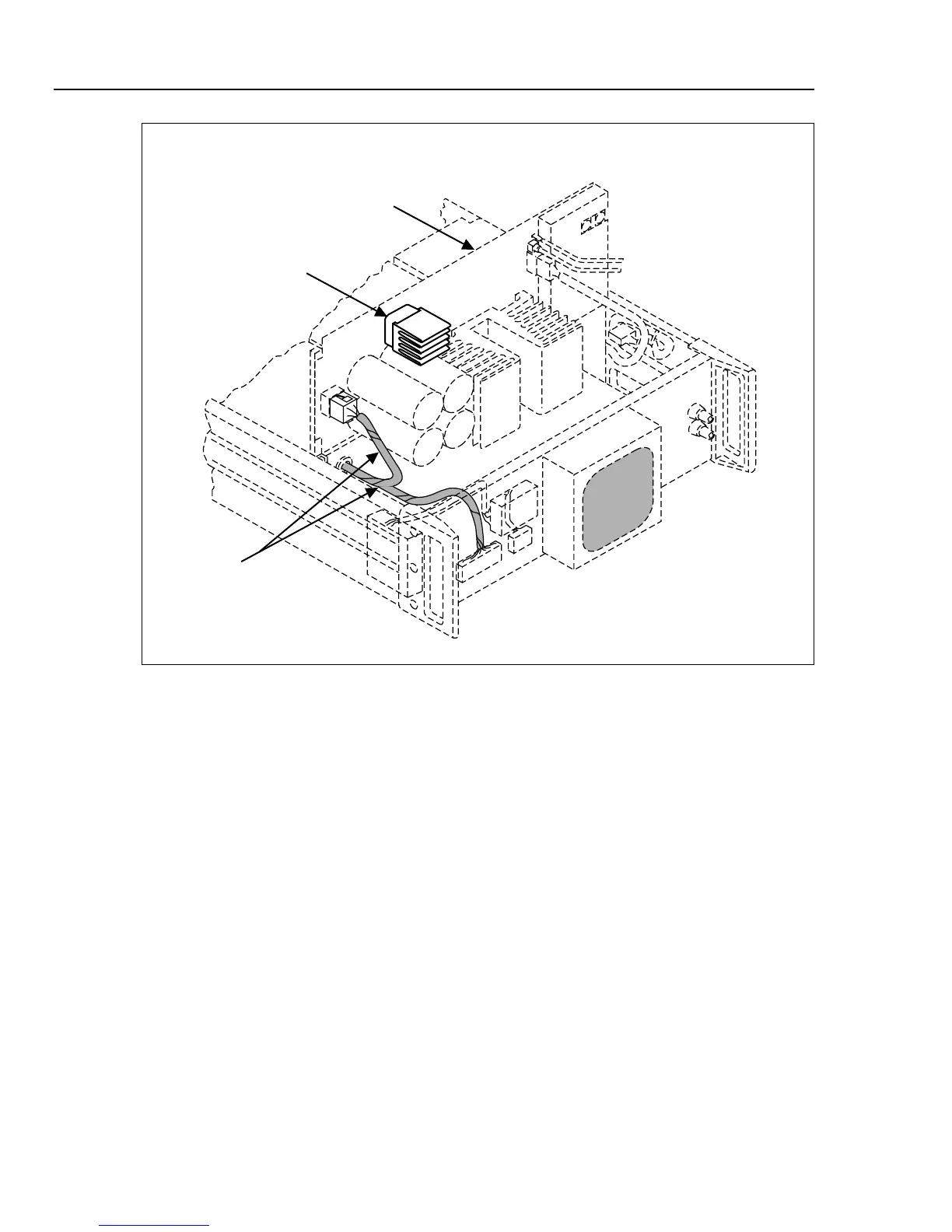

Figure 6-6. Correct Way to Dress Cables
6-11. Accessing the High Voltage Amplifier (A3)
The High Voltage Amplifier assembly lays flat on the top of the instrument, toward the
front. To access the High Voltage Amplifier assembly, simply do the Initial Access
Procedure. This leaves the assembly in the service position.
Note
When reinstalling the assembly, lower it into place squarely to make sure
its connector seats correctly in the Interconnect assembly connector.
