Fluke 5725A - Enabling Front or Rear Binding Posts

5725A
Instruction Manual
6-16
J222
FRONT OUTPUT
CABLE
REAR OUTPUT
CABLE
CURRENT
AMPLIFIER
(A2)
SECURE UNUSED
CABLE
aq23f.eps

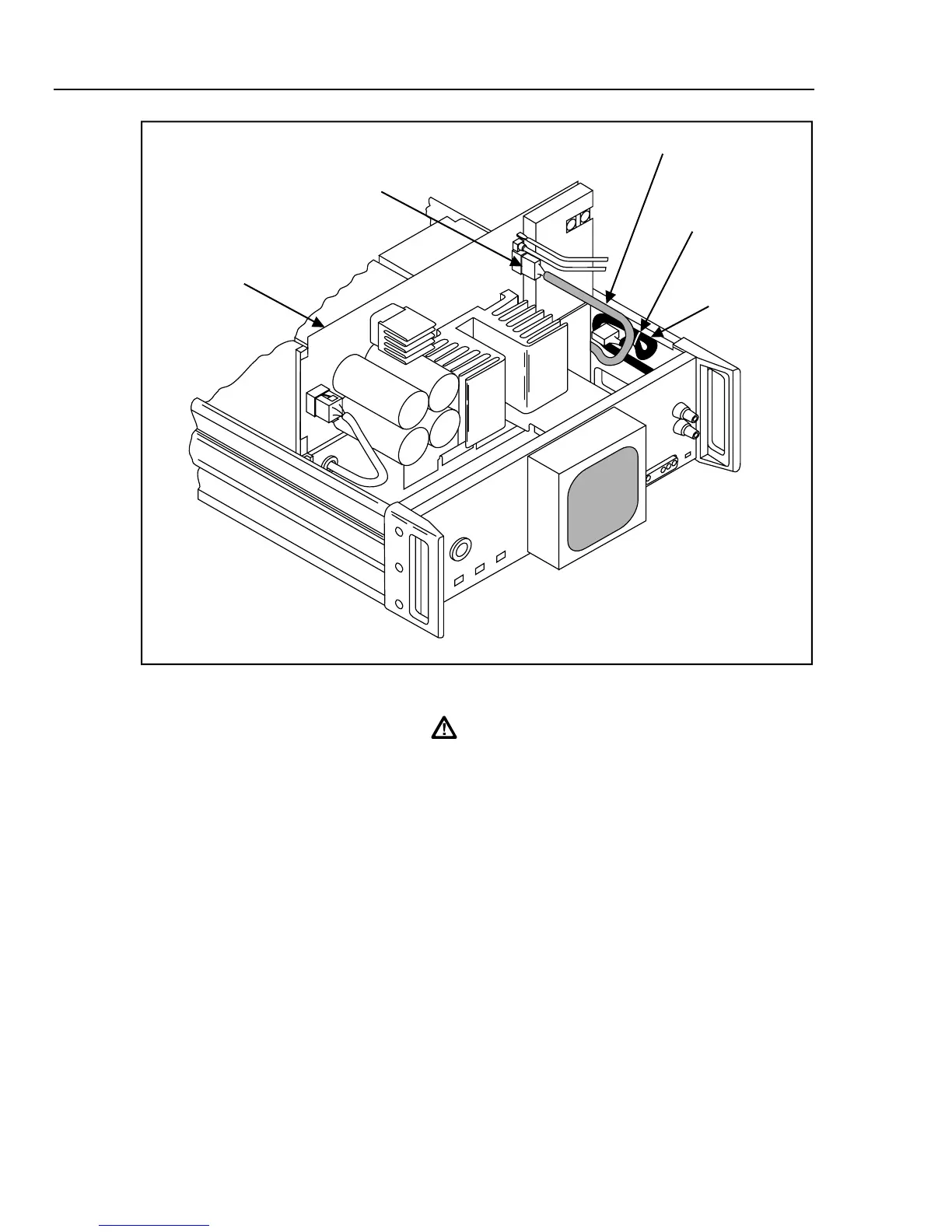

Figure 6-7. Enabling Front or Rear Binding Posts
Caution
Make sure that the unused connector is neatly secured in the
recessed area of the chassis side, away from the High Voltage
Sense assembly as Figure 6-7 shows. If it is allowed to hang
down, shorting can occur.
8. Reconfiguration is complete. Reinstall the Current Amplifier and High Voltage
Amplifier assemblies, being careful to correctly seat each assembly into the
connector on the Interconnect assembly.
9. Reinstall the top cover.
