Fluke 5725A - Page 198

5725A
Instruction Manual
9-18

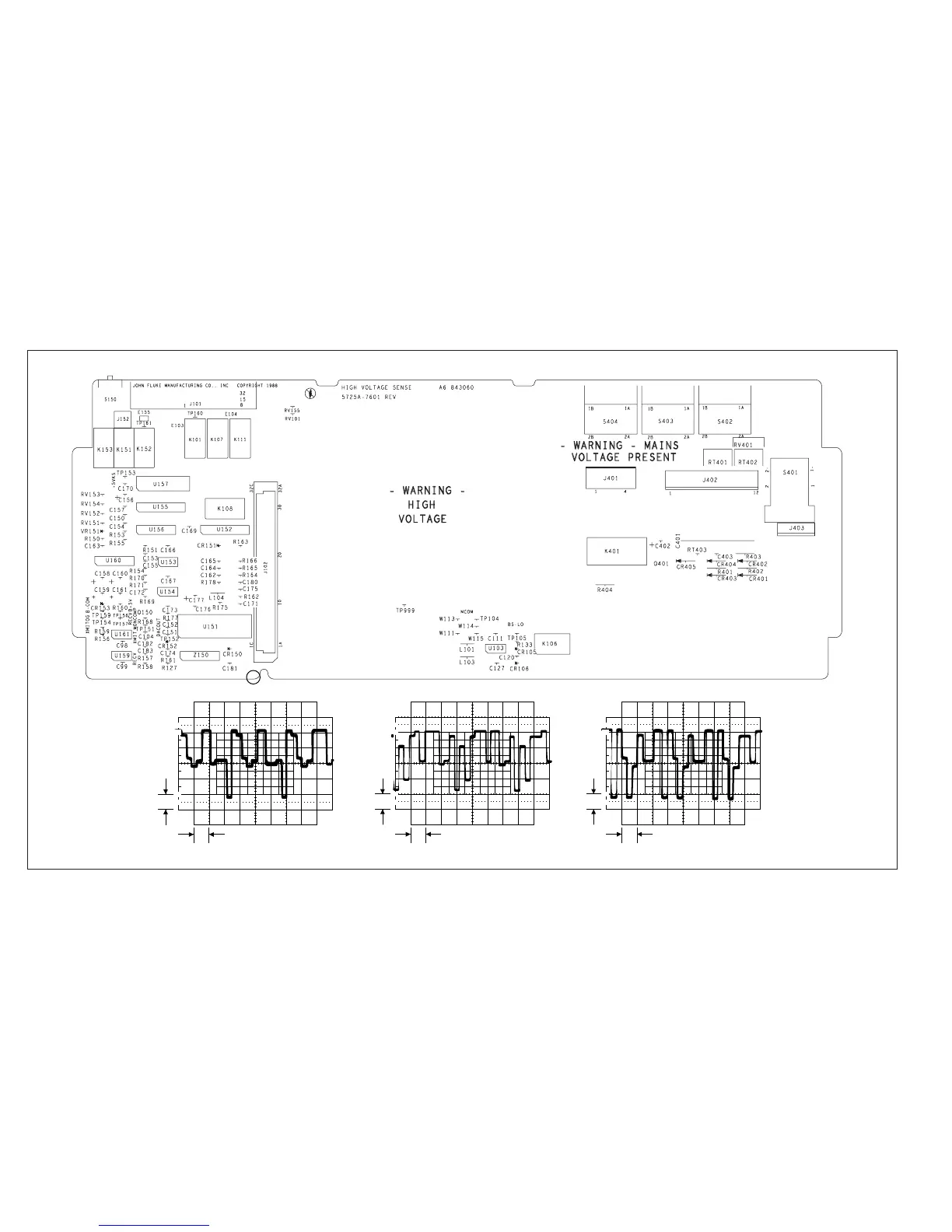

Figure 9-6. A6 High Voltage Sense PCA
100
90
10
0
1 V
10 ms
100
90
10
0
1 V
10 ms
VOLTAGE STANDBY
STANDBY
100
90
10
0
1 V
10 ms
CURRENT STANDBY
A
aq44f.eps
5725A-1601
aq63f.eps
