Always use a container of adequate size to hold the FULL LOAD of fluid. Some
oils are more easily drained at higher temperatures. (See caution note in next
section.)
6. The model and serial number

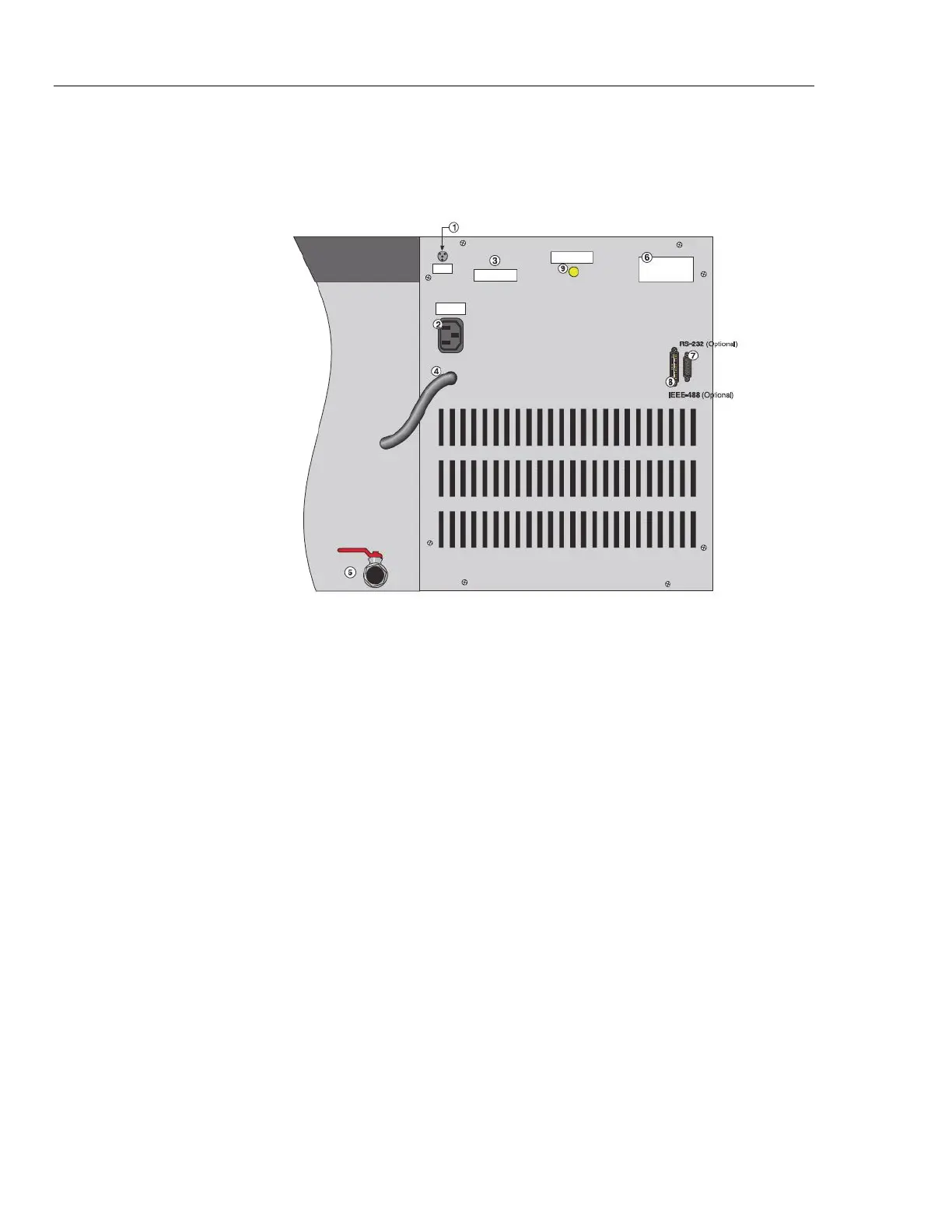

Figure 4. Back Panel
7. If the bath is supplied with a serial RS-232 interface, the interface cable
attaches to the back of the bath at the connector labeled “RS-232”.
8. If the bath is supplied with a GPIB IEEE-488 interface, the interface cable
attaches to the back of the bath at the connector labeled “IEEE-488”.
9. The "Mains out of Range" indicator shows when the AC mains are out of
range for the instrument to operate.
WARNING
Extreme caution must be maintained to prevent harm to the
user or the surrounding environment. Do not exceed a 120 °C
fluid temperature for draining. The valve could be damaged if
120 °C is exceeded. Insulate the container from the floor or
other objects that may be damaged by high temperatures as
required.
