Fluke 712B/EN Calibration Manual

RTD/Thermocouple Calibrator
712B Calibration Adjustment

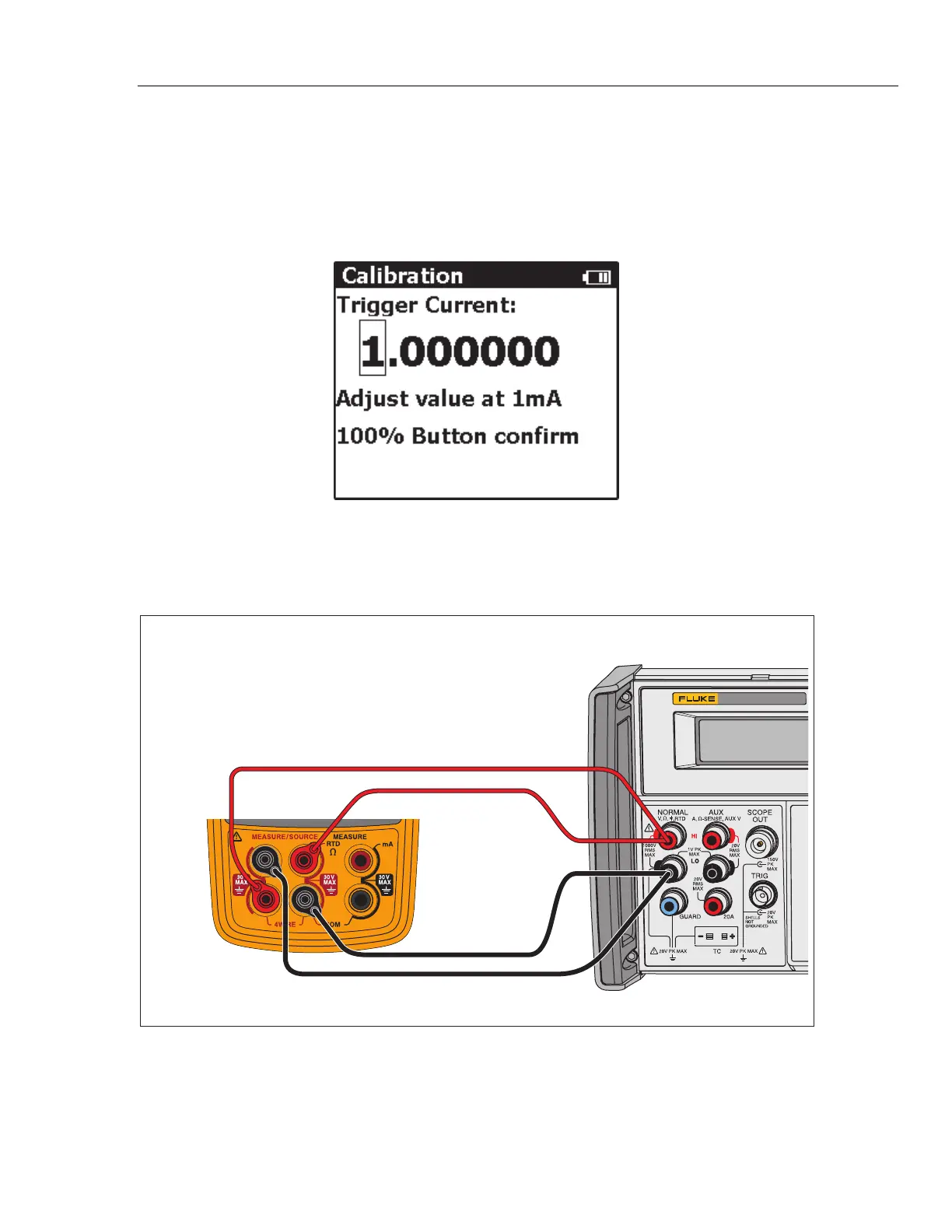

Adjust 1 mA Trigger Current
1. Push  on the 712B to enter 1 mA trigger current calibration mode.
2. Wait approximately 15 seconds until the 8508A shows a stable reading.
3. Input the reading into the 712B.
4. Confirm the input.
Adjust Ohms Measure
Before the calibration adjustment, set the 5522A to Ohms source output mode,
and use two sets of banana plug patch cords to connect the 712B and the 5522A,
as shown in Figure 12.
Fluke 5522A
5522A
CALIBRATOR
Fluke 712B
Figure 12. Adjust 712B Ohms Measure
hwp003.eps
25
