Fluke 712B/EN Calibration Manual

712B/714B
Calibration Manual

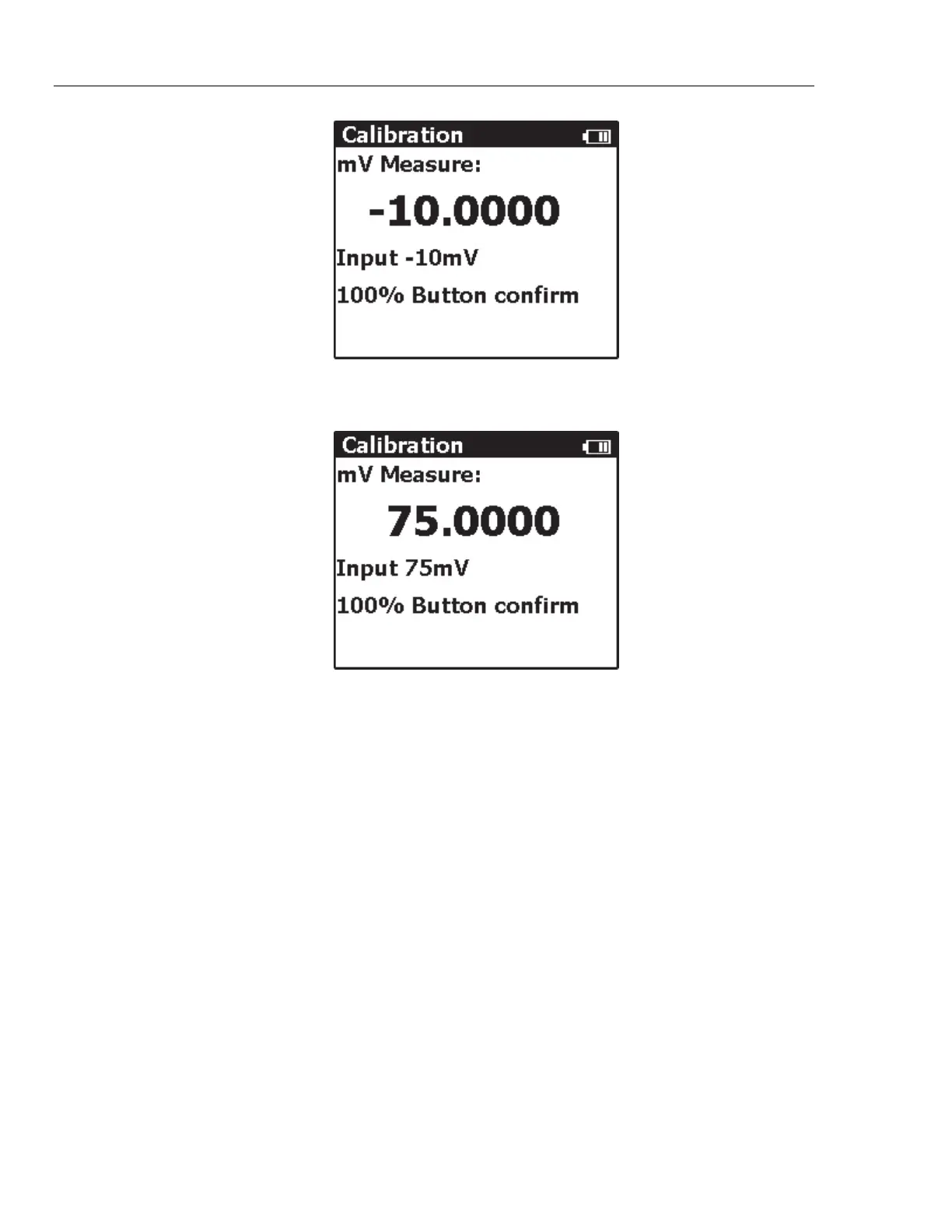

The 5522A outputs the value (Voltage
75mV
Setting).
2. After approximately 10 seconds, push  to calibrate the value.
Adjust Internal Cold Junction Temperature
Use the Fluke 9101-256 or a lag bath to calibrate the internal cold junction
temperature.
Use the Fluke 9101-256
To use the Fluke 9101-256 to calibrate the internal cold junction temperature:
1. Connect the Fluke 9101-256 and the 714B via the J type thermocouple
sensor, as shown in Figure 17.
34
