712B/714B
Calibration Manual

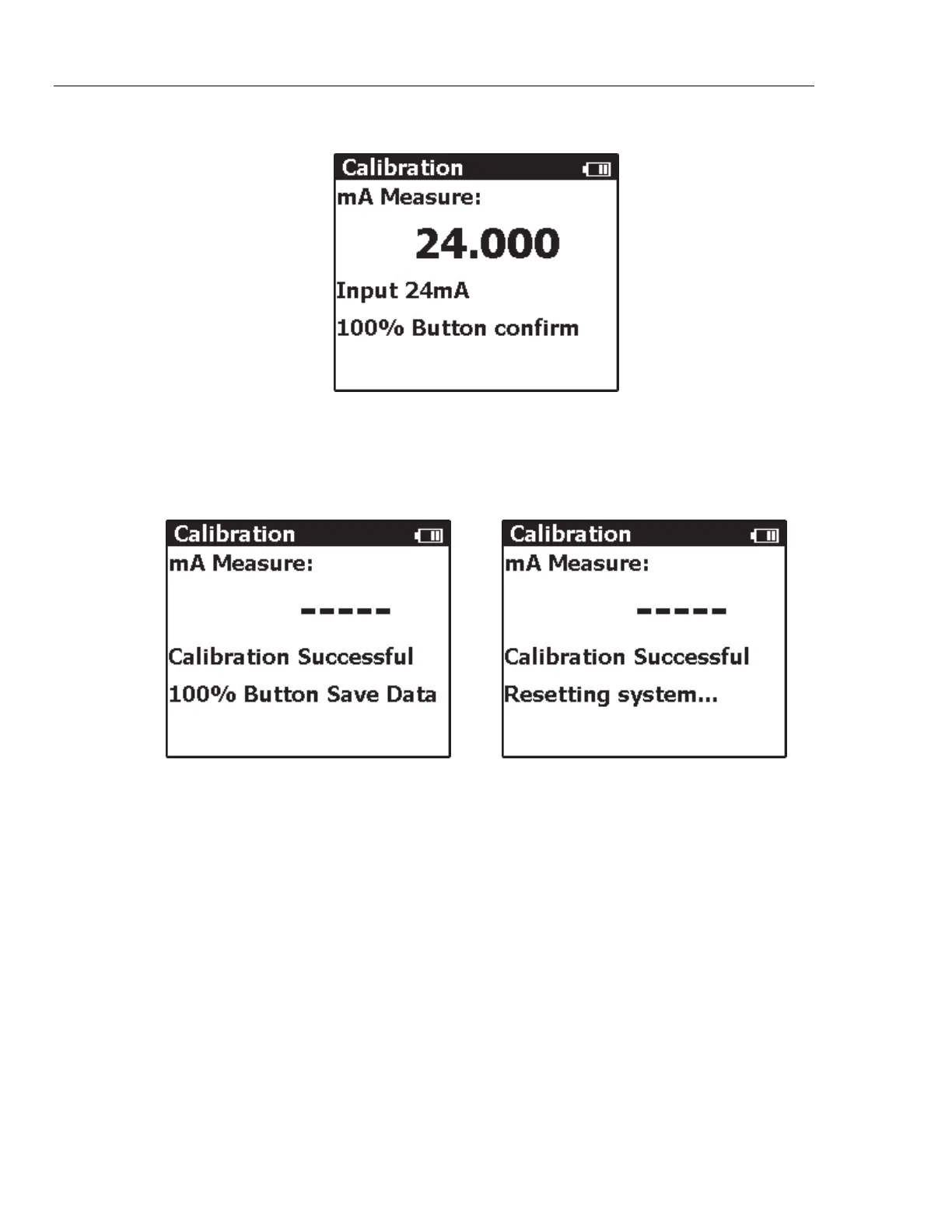

2. Push
. The 5522A outputs 24mA.
3. Push
to adjust.
Save Data and Reset the 714B System
After the calibration procedur
e described above is done, push
to confirm and
store the calibration data. The 714B system is automatically reset.
38
45
47
Table of Contents
Table of Contents
3
Introduction
9
Contact Fluke
9
Safety Information
9
Symbols
10
712B Specifications
11
DC Ma Measurement
11
Ohms Measurement
11
Ohms Source
11
RTD Input and Output
12
General Specifications
13
714B Specifications
14
Thermocouple MV Input
14
Thermocouple MV Output
14
Thermocouple Ma Input
14
Thermocouple Input and Output
14
General Specifications
16
Maintenance
17
Replace the Batteries
17
Clean the Product
17
Required Equipment
18
712B Performance Verification
19
Verify Ohms Source
19
Verify 4-Wire Ohms Measure
20
Verify 3-Wire Ohms Measure
21
Verify Ma Measure
22
714B Performance Verification
24
Verify MV Source
24
Verify MV Measure
25
Verify TC Measure (Type K)
25
Verify TC K Source
26
Verify Ma Measure
27
712B Calibration Adjustment
28
Enter Manual Calibration Mode
28
Adjust Ohms Source
28
Adjust 50 Ω Source
29
Adjust 350 Ω Source
29
Adjust 500 Ω Source
30
Adjust 3500 Ω Source
30
Adjust Trigger Current for Ohms Measure
31
Adjust 0.1 Ma Trigger Current
31
Adjust 0.25 Ma Trigger Current
32
Adjust 0.5 Ma Trigger Current
32
Adjust 1 Ma Trigger Current
33
Adjust Ohms Measure
33
Adjust 50 Ω Input
34
Adjust 350 Ω Input
34
Adjust 500 Ω Input
35
Adjust 3500 Ω Input
35
Adjust Ma Measure
36
Adjust 0.1 Ma Input
36
Adjust 24 Ma Input
37
Adjust External Trigger for Ohms Source
37
Adjust 0.1 Ma External Trigger
38
Adjust 1 Ma External Trigger
38
Save Data and Reset the 712B System
39
714B Calibration Adjustment
39
Enter Calibration Mode
39
Use 8508A to Adjust the 5522A Output
40
Adjust MV Source
40
Adjust MV Measure
41
Adjust Internal Cold Junction Temperature
42
Use the Fluke 9101-256
42
Use a Lag Bath
44
Adjust Ma Measure
45
Save Data and Reset the 714B System
46
User-Replaceable Parts and Accessories
47
