724/725/726
Calibration Manual
52
Cal ISO Volts
Connect the UUT as shown in Figure 22.
aal03f.eps

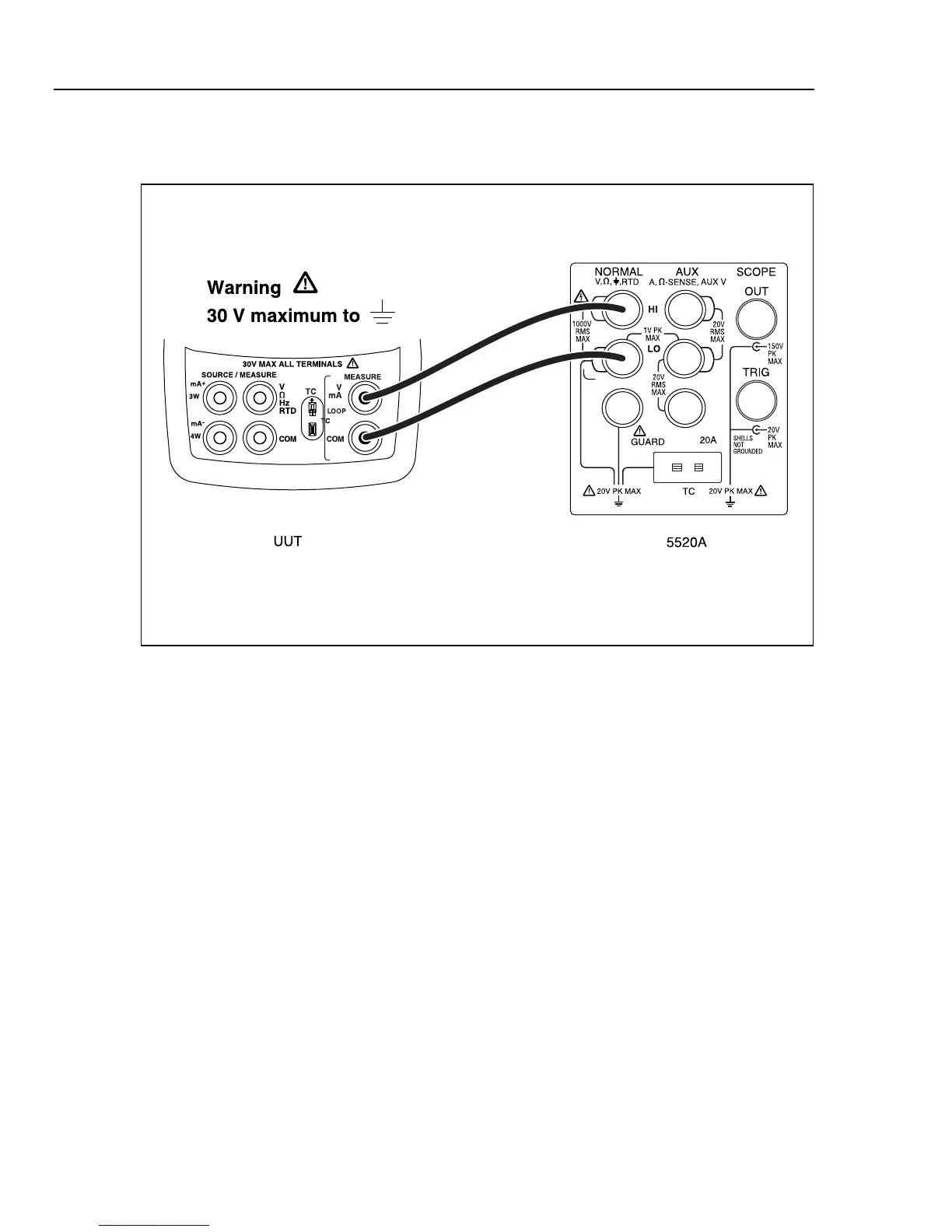

Figure 22. ISO Volts Calibration Connections
From the Calibration Menu, enter the cal step for Cal ISO Volts. The PC displays:
Enter 0 Volts - press space bar to continue
Set the Fluke 5520A to output 0.0000 V, then press the space bar on the PC. After a short
while the PC displays the following a calibration constant and new prompt:
Offset = -324
Enter 30.00 Volts - press space bar to continue
Set the Fluke 5520A to output 30.0000 V, then press the space bar on the PC. After a
short while, the PC displays the following calibration constants and prompt:
diff = (Counts - Offset)
30700 = 30376 - -324
Volts per count = 0.000977
- press space bar to continue
Press the space bar to return to the Calibration Menu.
