Fluke Hydra Series II User Manual

Front Panel Operations
Setting Operating Conditions
2
2-25
Typical
Required
ENTER
X . X X X X
X X
. X X X
X X X
. X X
X X X X
. X
ENTER
ENTER
x1
m
M
k
Selecting the B Numerical Value. Press the
up/down and left/right arrow keys to enter a five
digit number that defines the numerical value for
the measurement offset, ignoring the decimal
point or scale multiplier. The column being
configured has a bright display. For example, for
a B of -115, enter -11500. When the entry is
correct, press the ENTER key.
Selecting the B Decimal Value. Press the
left/right arrow keys to position the decimal point
in the number selected in the previous step. For
the example above, the setting would be -115.00.
When the decimal point is correct, press the
ENTER key.
Selecting the B Scale Modifier. Press the
up/down arrow keys to select the desired scale
modifier: X1 (x1), m (x .001), M (x1,000,000), or k
(x1,000). For the example above, the -115.00
scale modifier would be x1. When the scale
modifier is correct, press the ENTER key.
SET Mx+B
SET Mx+B
A
(Continued from the previous page)
SET Mx+B
± 0 0 0 0 0
- to -
± 9 9 9 9 9

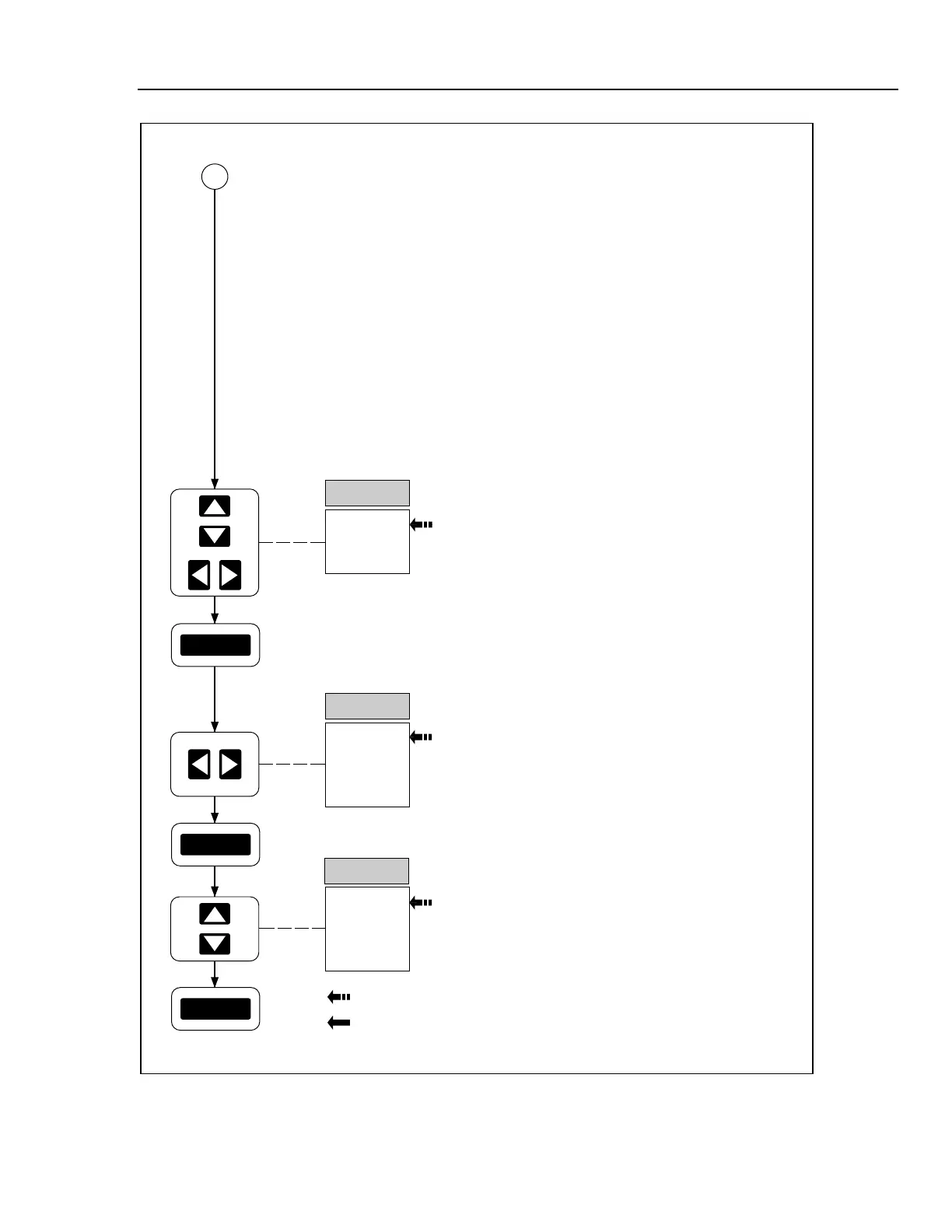

op26af.eps
Figure 2-14. Setting the Mx+B Scaling (cont)
