LinkRunner AT 1000/2000 Network Auto-Tester
Users Manual
14
General Configuration
Select Tools > General Configuration.

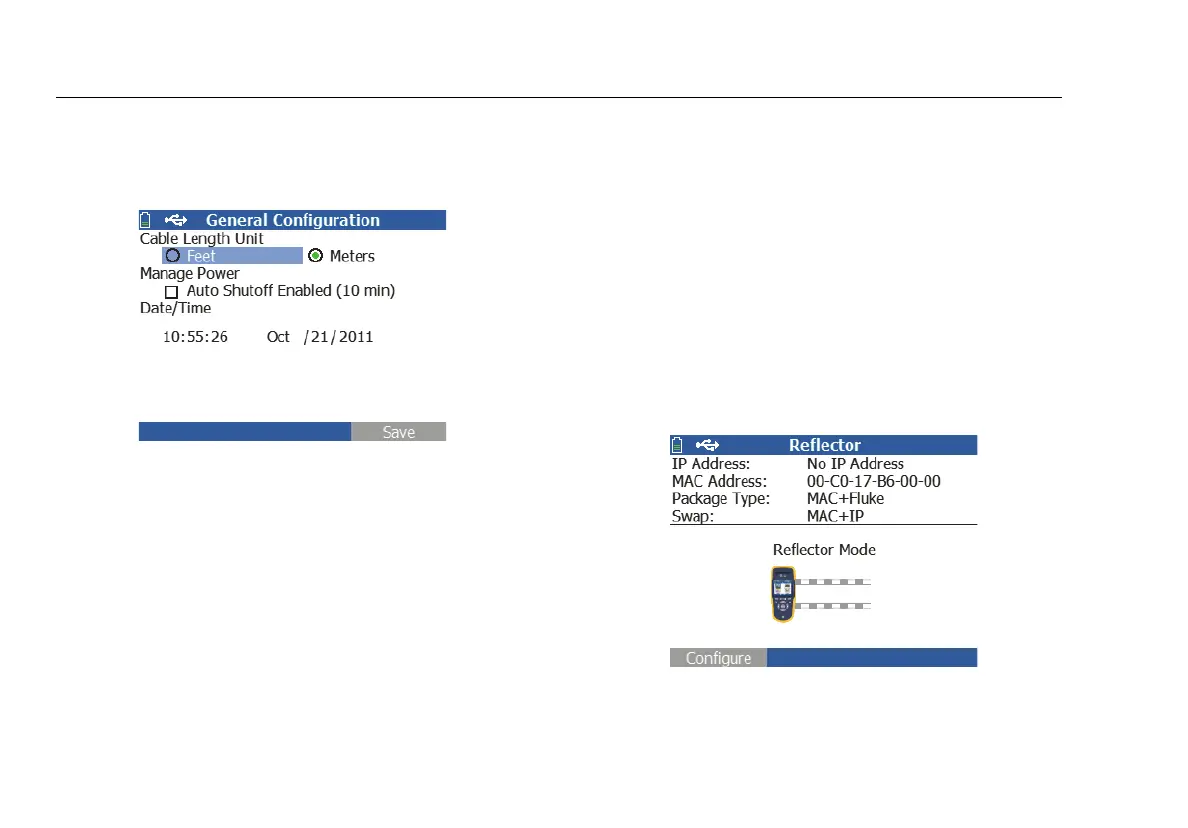

Figure 10. General Configuration Screen
This screen allows you to set the units for the Cable test
screen, Manage Power (10 minute automatic shutoff -
default), and set the time/date.
Reflector Configuration (LR-AT 2000 Model)
This screen is used to configure the LR-AT 2000 for remote
access to Fluke Networks EtherScope Network Assistant,
MetroScope Service Provider, and OptiView Analyzer’s
throughput performance tests.
Note
The LR-AT 2000 can reflect jumbo frame sizes up to
9600 bytes.
Select Tools > Reflector. The default or pre-configured
Reflector settings are displayed below
Figure 11. Reflector Settings Screen
