789/787B
Calibration Manual
14
Loop Power Test (789 only)
1. Enable the dc volts autorange function of the multimeter.
2. Turn the rotary knob of the UUT to LOOP POWER.
3. Measure the open circuit voltage of the UUT and verify it is >29.2 V and <32 V.
4. Press J (BLUE) on the UUT to enable the 250 Ω HART resistor.
5. Repeat step 3.
6. Disable the 250 Ω HART resistor by pressing J (BLUE).
7. Connect the 1-kΩ shunt across SOURCE + and SOURCE - of the UUT.
8. Measure the loaded down voltage and verify it is >23.8 V and <32 V, see Figure 2.
9. Remove the 1-kΩ shunt.
10. Disconnect the UUT from the multimeter and turn the UUT off.
11. Select the dc current function on the multimeter and set it to the 1-amp range (a 0.1
Ω shunt is used in the 1-amp range).
12. Connect the current input terminals of the multimeter to the SOURCE + and
SOURCE - terminals of the UUT.
13. Turn the rotary knob of the UUT to LOOP POWER.
14. Verify the short circuit current is >24 mA and <35 mA.
0%
RANGE HOLD
REL
MIN MAX
Hz
100%
789
PROCESSMETER
UUT
adm006F.EPS

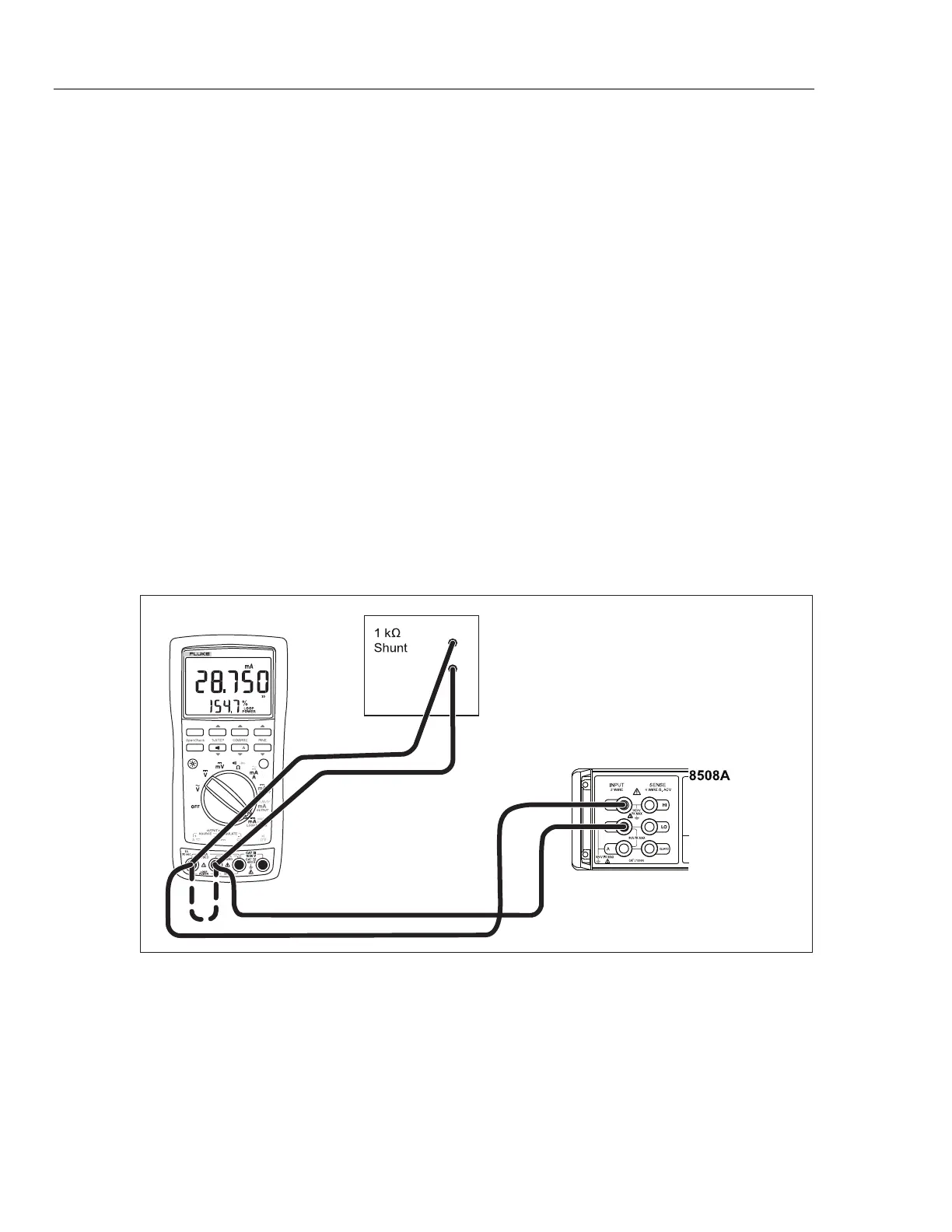

Figure 2. Verifying Loop Power
