Fluke ProcessMeter 789 Calibration Manual

ProcessMeter™
Performance Verification
23
DC Volts Measurement Tests
 Warning
To prevent possible electrical shock, fire, or personal injury:
• Some of the calibration verification tests involve the use of high
voltages and should be performed by qualified personnel only.
• Always place the calibrator in the Standby (STBY) mode between
tests and before handling the test connections or test cables.
1. Put the calibrator in Standby (STBY) mode.
2. Put the UUT rotary switch in the T position; select the autoranging mode.
3. Connect the calibrator to the COM and
 terminals on the UUT as shown in
Figure 9.
4. Apply the values from the calibrator shown in Table 10 and compare the readings on
the UUT to the acceptable readings shown.
POWER
I
O
0•
123
456
789
ENTER
M
k
m
VHz
FIELD
EDIT
/
+
F
OPR EARTH EXGRD SCOPE MENU
PREV
SHIFT
RESET
CE
SETUP
REF
NEW
TC
MEAS
¡F

n
p
W
dBm sec
¡CA
MULT
x
DIV

MODES
MORE
STBY
HI
LO
TRIG
GUARD
TC
20A
NORMAL AUX
5520A CALIBRATOR
SCOPE
OUT
V, , ,
RTD
A, -SENSE,
AUX V
20V PK MAX
20V PK MAX
5522A
UUT
adm009F.EPS

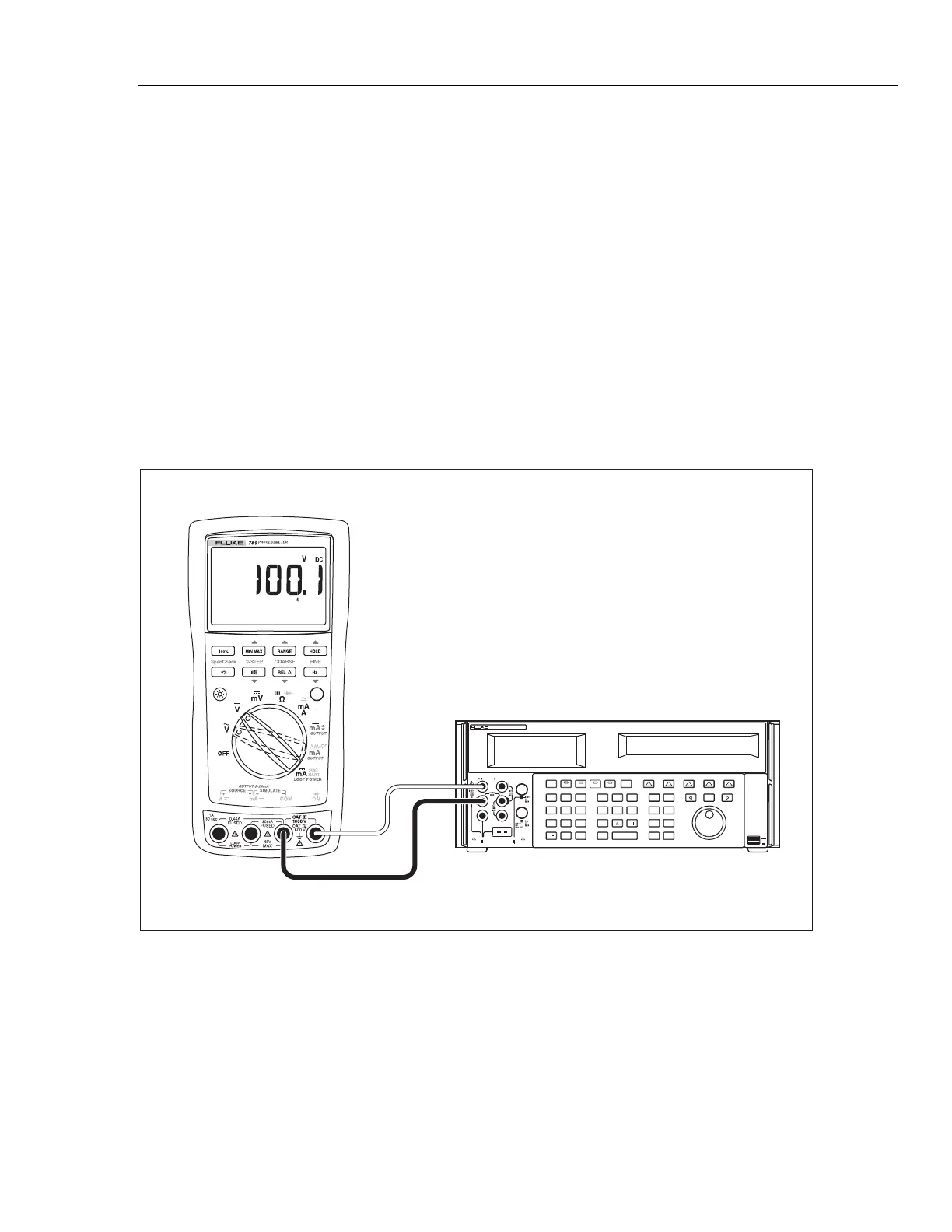

Figure 9. AC/DC Voltage Measurement Test Connections

Fluke ProcessMeter 789 Specifications

General

Diode test	Yes
Frequency range	0 - 19.999 kHz
AC current range	0 - 1 A
AC voltage range	0 - 1000 V
Resistance range	0 - 40000000 Ω
Resolution (AC voltage)	0.1 mV
Dimensions (WxDxH)	100 x 203 x 50 mm

Weight and Dimensions

Weight	610 g
