Fluke ProcessMeter 789 Calibration Manual

ProcessMeter™
Performance Verification
15
Current Sourcing Test
1. Put the calibrator in Standby (STBY) mode.
2. Connect the SOURCE + (A) and − (mA) terminals on the UUT to the current
terminals on the multimeter as shown in Figure 3.
3. Put the multimeter in the dc mA mode and manually select the 100 mA range. (Do
not allow the multimeter to autorange.)
4. Turn the UUT rotary switch in the OUTPUT
X position.
5. Use the SpanCheck, %STEP and COARSE keys on the UUT to apply the values
shown in Table 4 and compare the readings on the multimeter to the acceptable
readings shown.
Table 4. Current Sourcing Test
789 Range 789 Output Current
Minimum Acceptable
Multimeter Reading
Maximum Acceptable
Multimeter Reading
No Range Switching 4.000 mA 3.990 mA 4.010 mA
No Range Switching 12.000 mA 11.990 mA 12.010 mA
No Range Switching 20.000 mA 19.990 mA 20.010 mA
adm001F.EPS

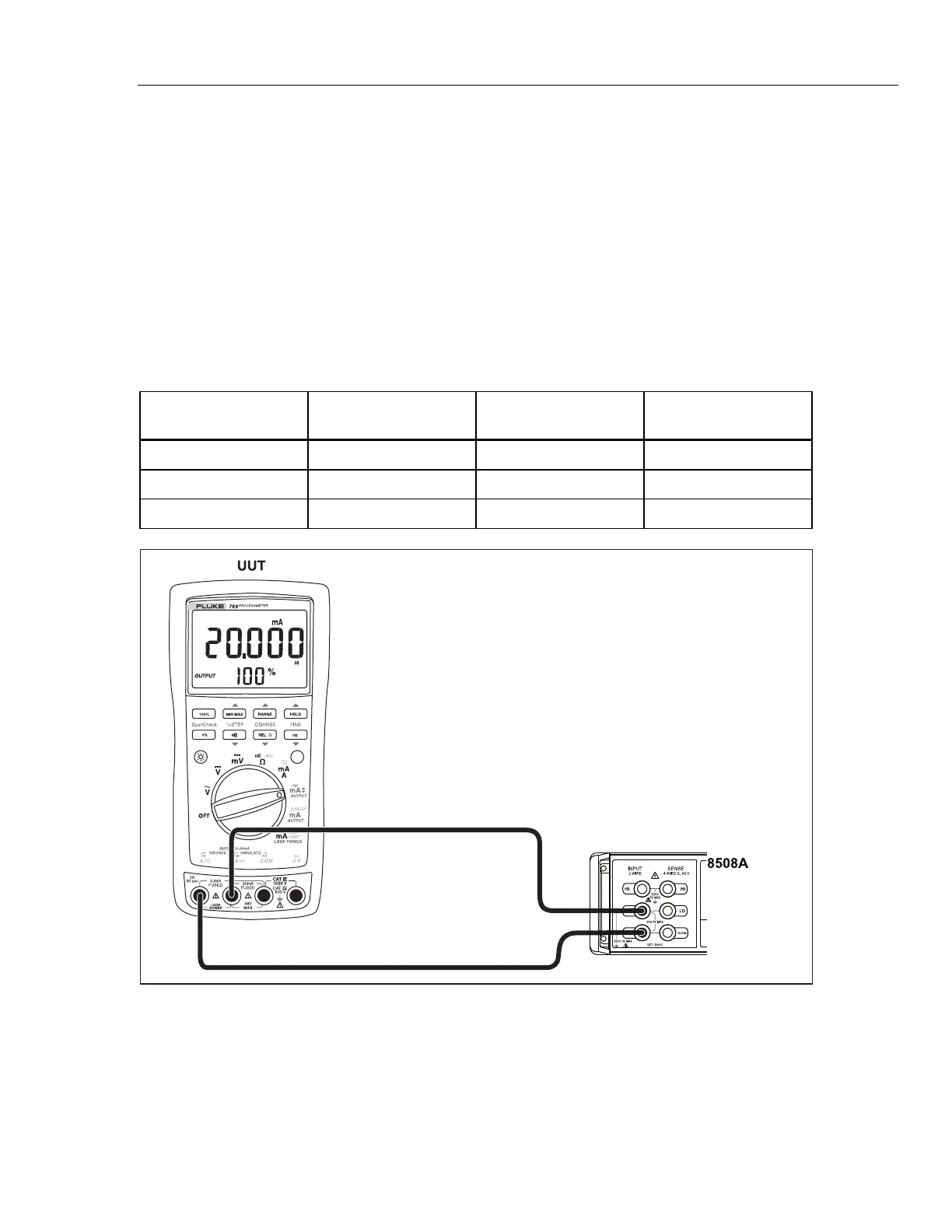

Figure 3. Current Sourcing Connections Using the HP 3458A

Fluke ProcessMeter 789 Specifications

General

Diode test	Yes
Frequency range	0 - 19.999 kHz
AC current range	0 - 1 A
AC voltage range	0 - 1000 V
Resistance range	0 - 40000000 Ω
Resolution (AC voltage)	0.1 mV
Dimensions (WxDxH)	100 x 203 x 50 mm

Weight and Dimensions

Weight	610 g
