Fluke SimpliFiber Pro - 2 Jumper Method for Loss Testing

SimpliFiber Pro Meter and Test Kits
Users Manual
52
amd67.eps

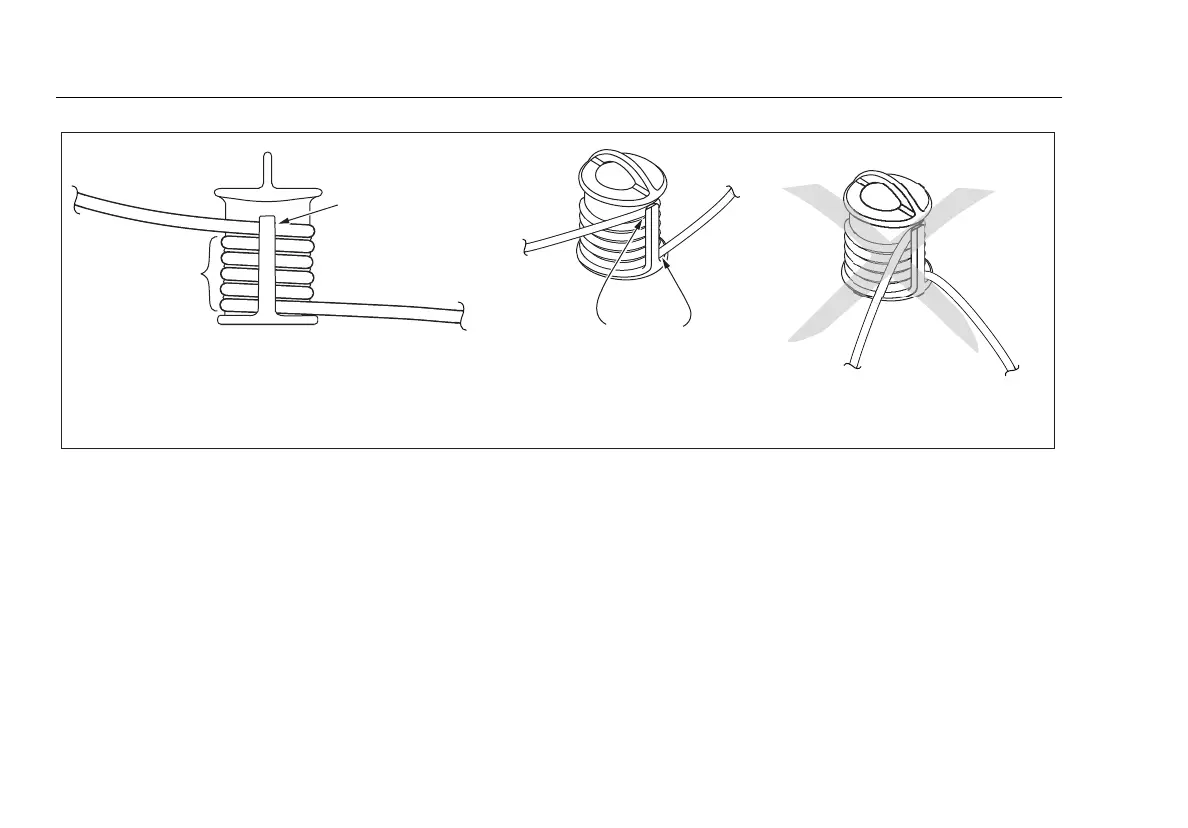

Figure B-1. Wrapping a Test Reference Cord Around a Mandrel
Wrap 5 times
in grooves
Place top wrap
in groove under
retainer
Right:
no bends
at retainer
Wrong:
bends at
retainer
