Fluke Ti30 - Accessing Imager Settings Switches

A hinged door on the top surface of the Ti30 imager hides five switches that allow you to
change the basic imager settings. Open the hinged door by lifting it up.
Pull door up to
show control
switches
Push buttons
(toggle)
3-position
Switches
Thumbwheels

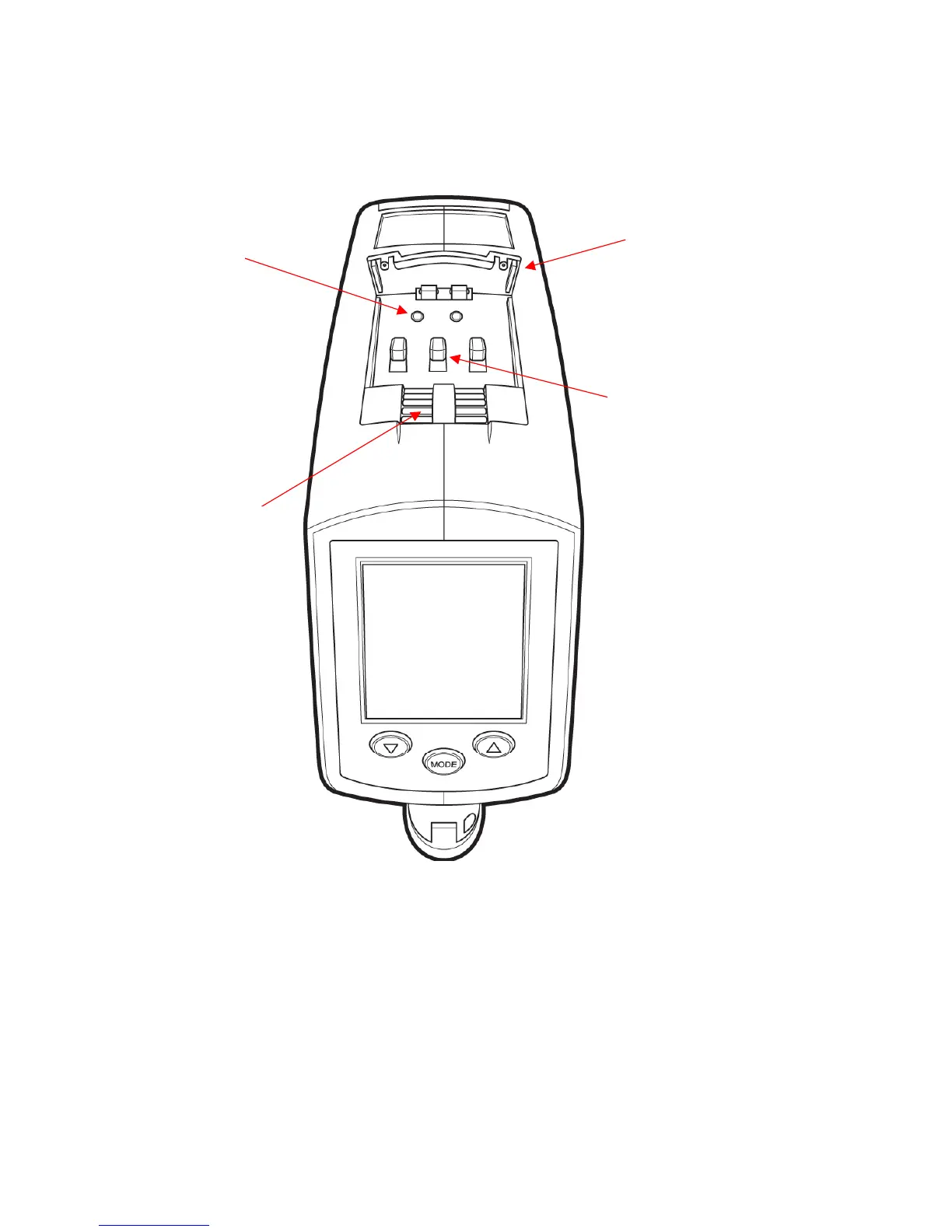

Figure 10. Ti30 Imager Settings Switches (icons not shown)
