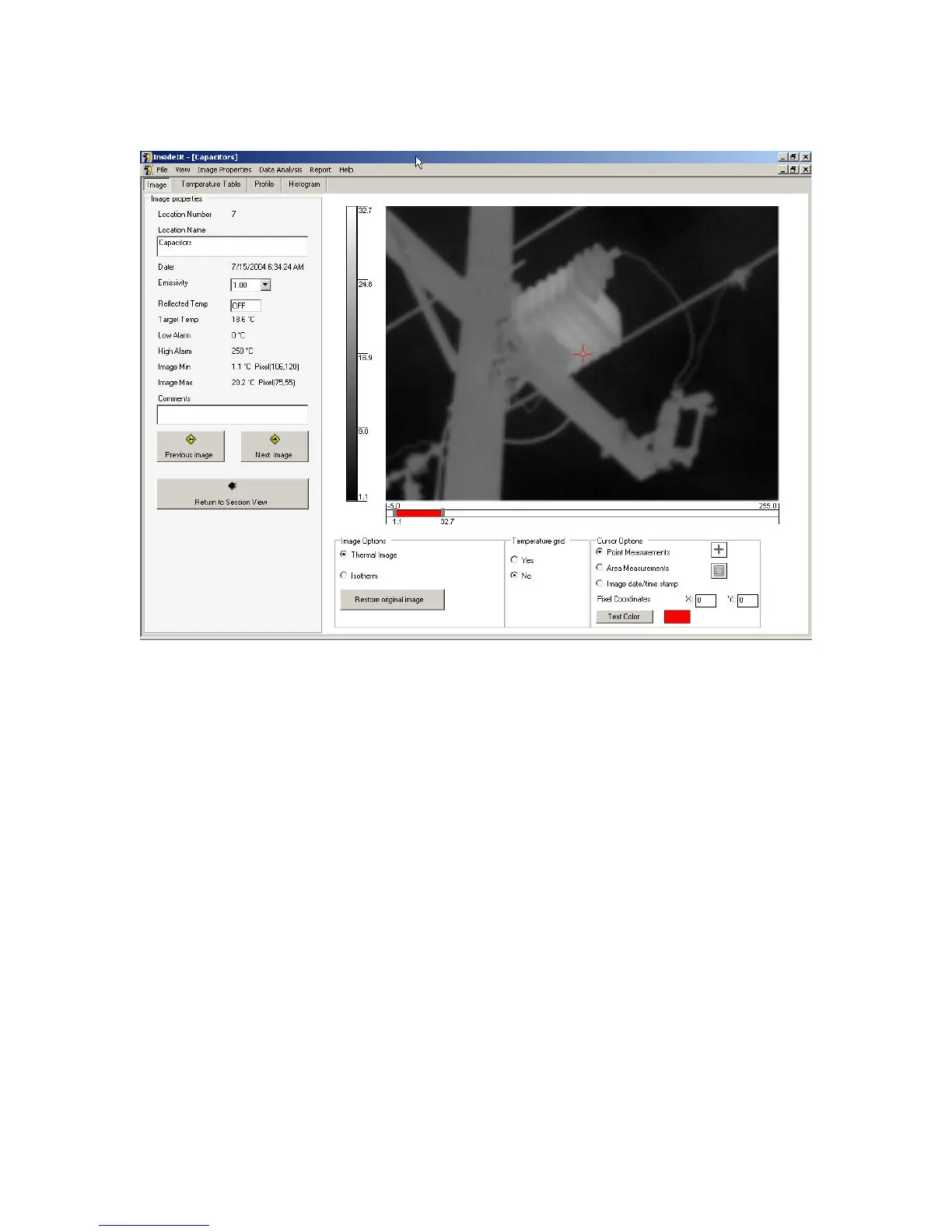

Figure 63. Sample Image After Increasing Scale Limits
Isotherms
As indicated in the section above, the limit bar indicates the temperature range your Ti30
imager is capable of measuring. However, when the Isotherm radio button is selected, the
red portion of the bar indicates the temperature range that will be “highlighted” in red in the
thermal scene.
Changing of the limits and the interval is done the same way for isotherms as it is for scale
limits—by moving the limit arrows or the red portion of the limit bar.
