Focus Wheel
The Focus Wheel is located on the bottom of the imager’s housing in front of the trigger as
shown in Figure 14. Adjust the focus by turning the Focus Wheel with your fingers or
thumb.
Focus Wheel

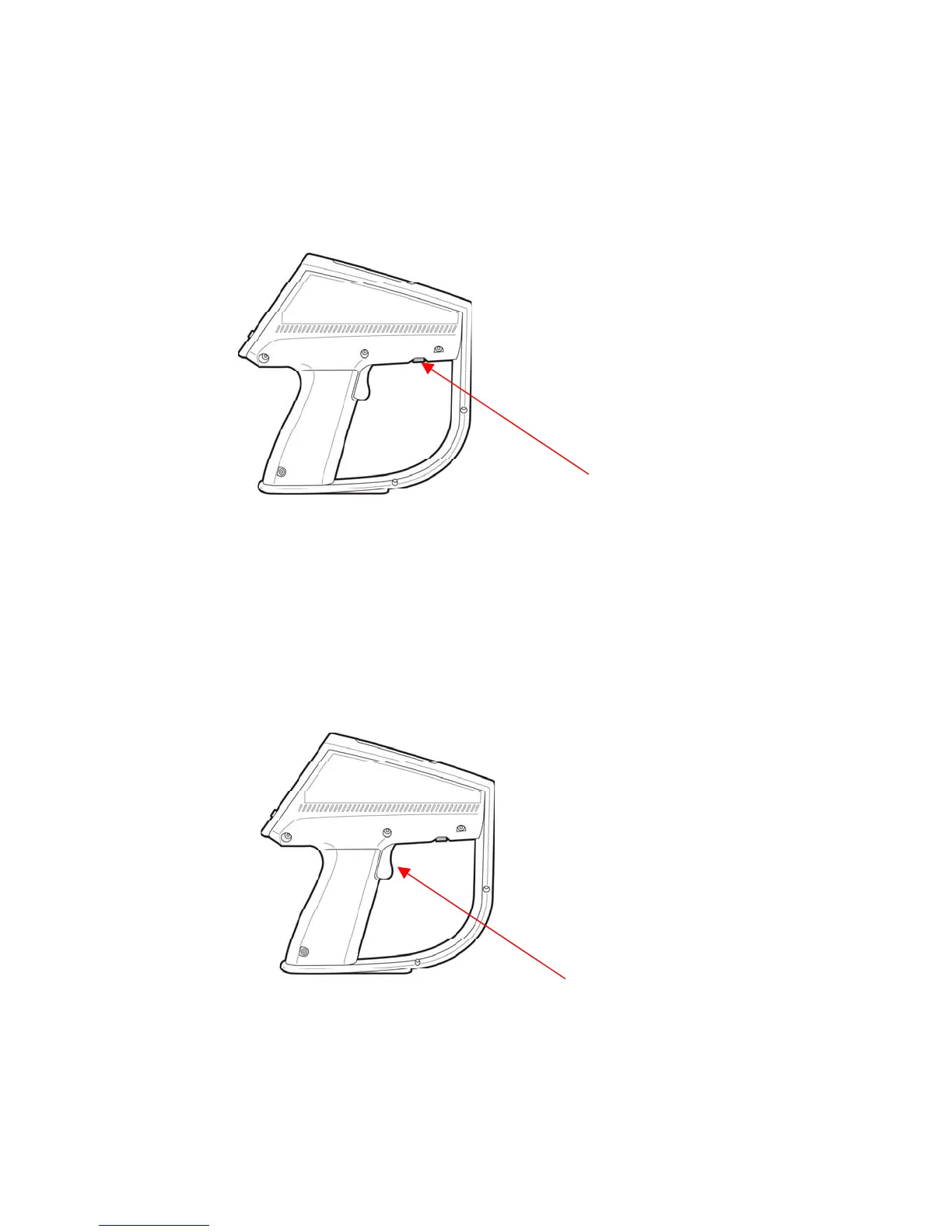

Figure 14. Location of the Focus Wheel
See The Importance of Focusing on page 57 for more details.
Trigger
Actuating the trigger freezes an image prior to storage. While in a regular measurement
mode, pull the trigger momentarily, release it, and the thermal image on the display will be
frozen so you can evaluate it for storage. If you don’t want to store it, simply pull the trigger
again and the unit will go back to measurement mode.
Trigger
Figure 15. Location of the Trigger
Jan 31st, 2005 - 24 -
