Figure 8: Phase sequence
Connection locations

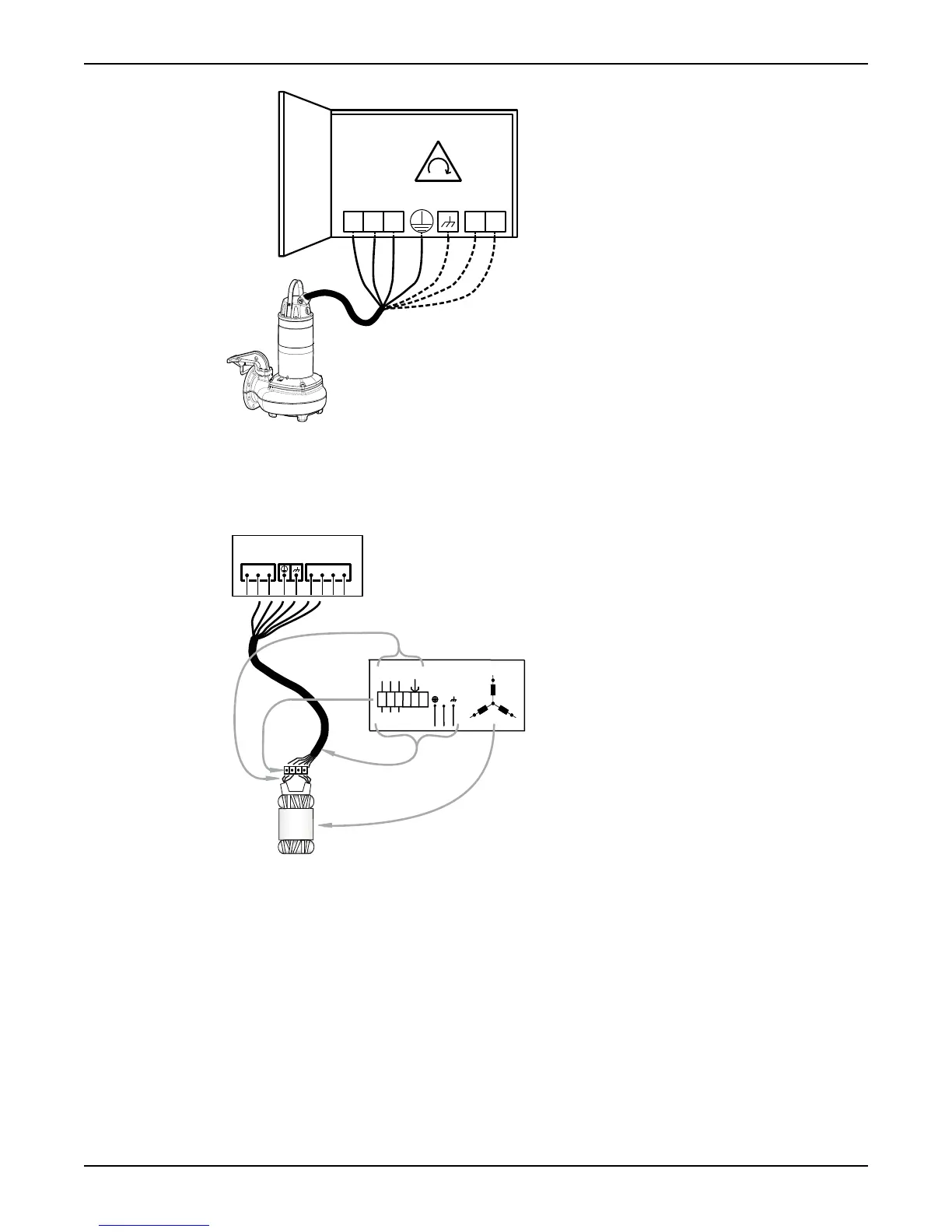

The figures in this section illustrate how to interpret the connection strip symbols.
L1 L2 L3
T3 T4T1 T2
U1
V1
W1
U2
W2
V2
U1
V1
W1
W2
U2
V2
U1
V1
W1
GC
W2
U2
V2
L1
L2
L3
*YE
GN/YE
WH
L1
U1
U2
W2
V2
W1
V1
L3
L2
WS004133C
1. Stator leads
2. Terminal board
3. Motor cable leads
4. Stator (internal connection illustrated)
