FLYGT 3153 - Impeller Rotation Check

Connection to the monitoring equipment
MiniCAS II
24 V AC/DC
R
CC
P
C
L2
L1
102
6
7 +T1
T15
T2
FLS10
5 -
11
1
12 VDC
9
8
10S
4
3
WS002623B
C Pump contactor
CC Control circuit
L1 Caution light (leakage)
L2 Caution light (stator over-temperature)
P Pump main supply
R Reset switch

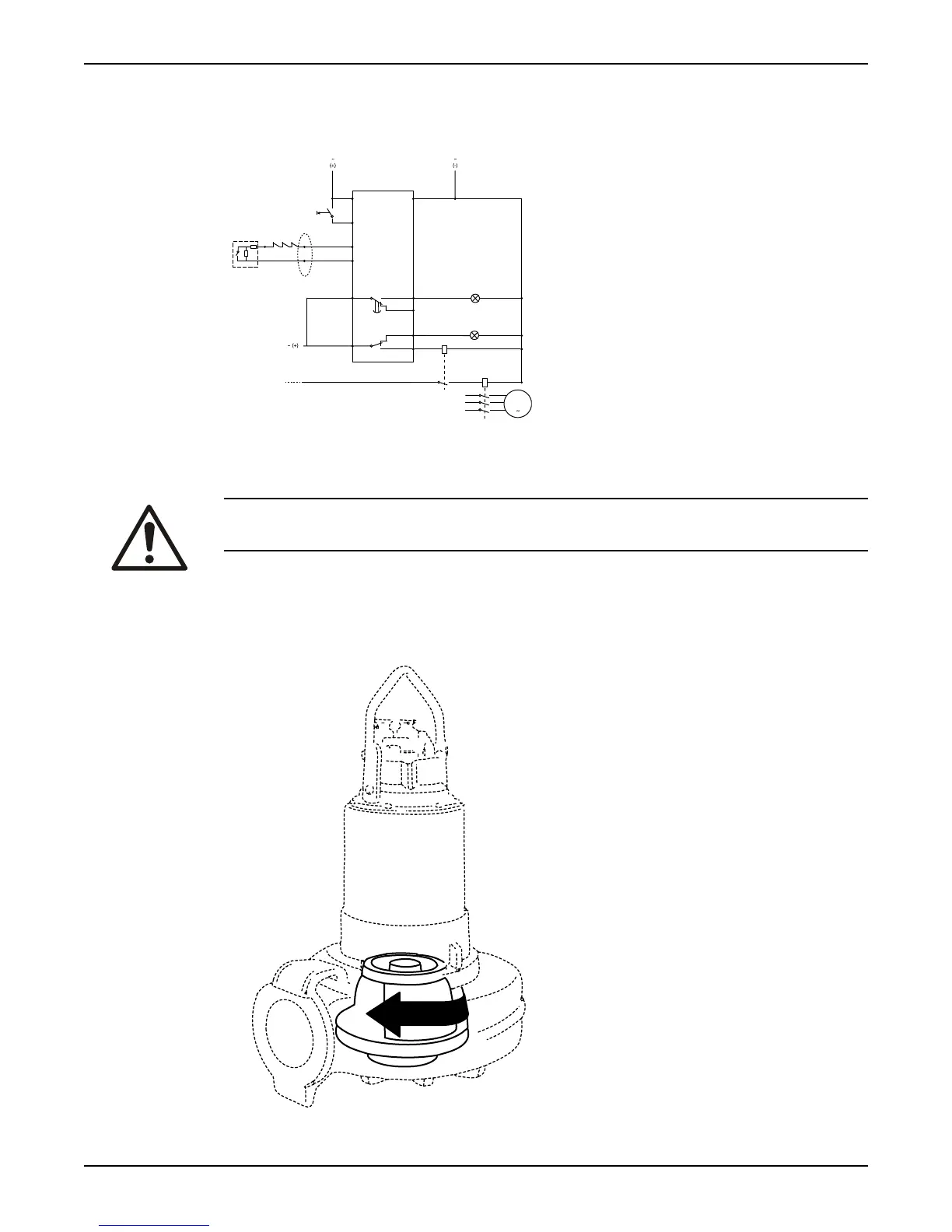

Check the impeller rotation
WARNING:
The starting jerk can be powerful.
1. Start the motor.
2.
Stop the motor after a few seconds.
3. Check that the impeller rotates according to this illustration.
WS006253A
