FLYGT 3153 - Replace the Impeller for Dry Installation

WS003730A
WS003731A

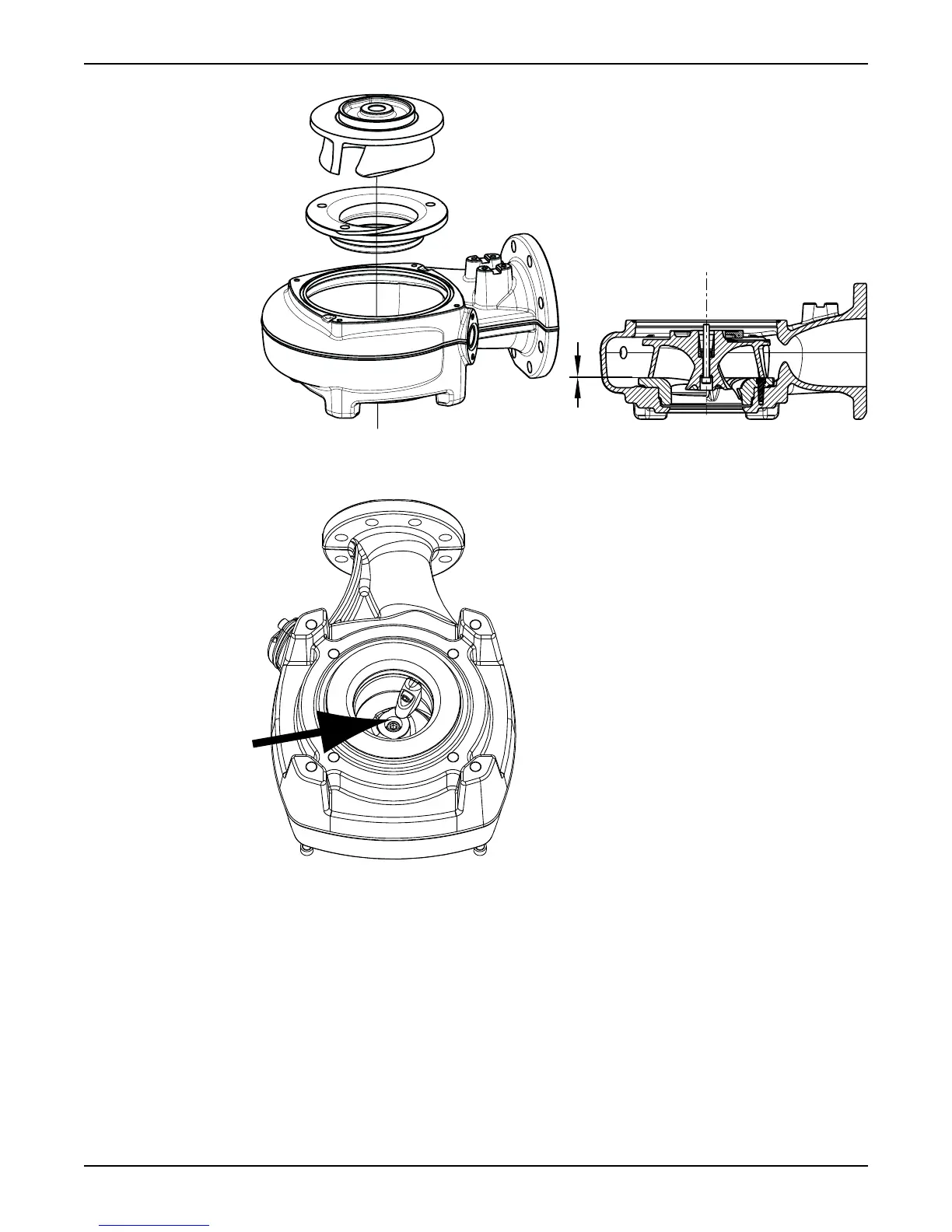

8. If applicable, adjust clearance to 0.1–0.5 mm (0.004–0.02 in.) between the guide pin
and the impeller.
WS001504A
Replace the impeller for dry installation
Remove the impeller: dry installation
1. Remove the drive unit from the pump housing:
a) Remove the pump housing screws.
Maintenance
52 Flygt 3153 Installation, Operation, and Maintenance Manual
