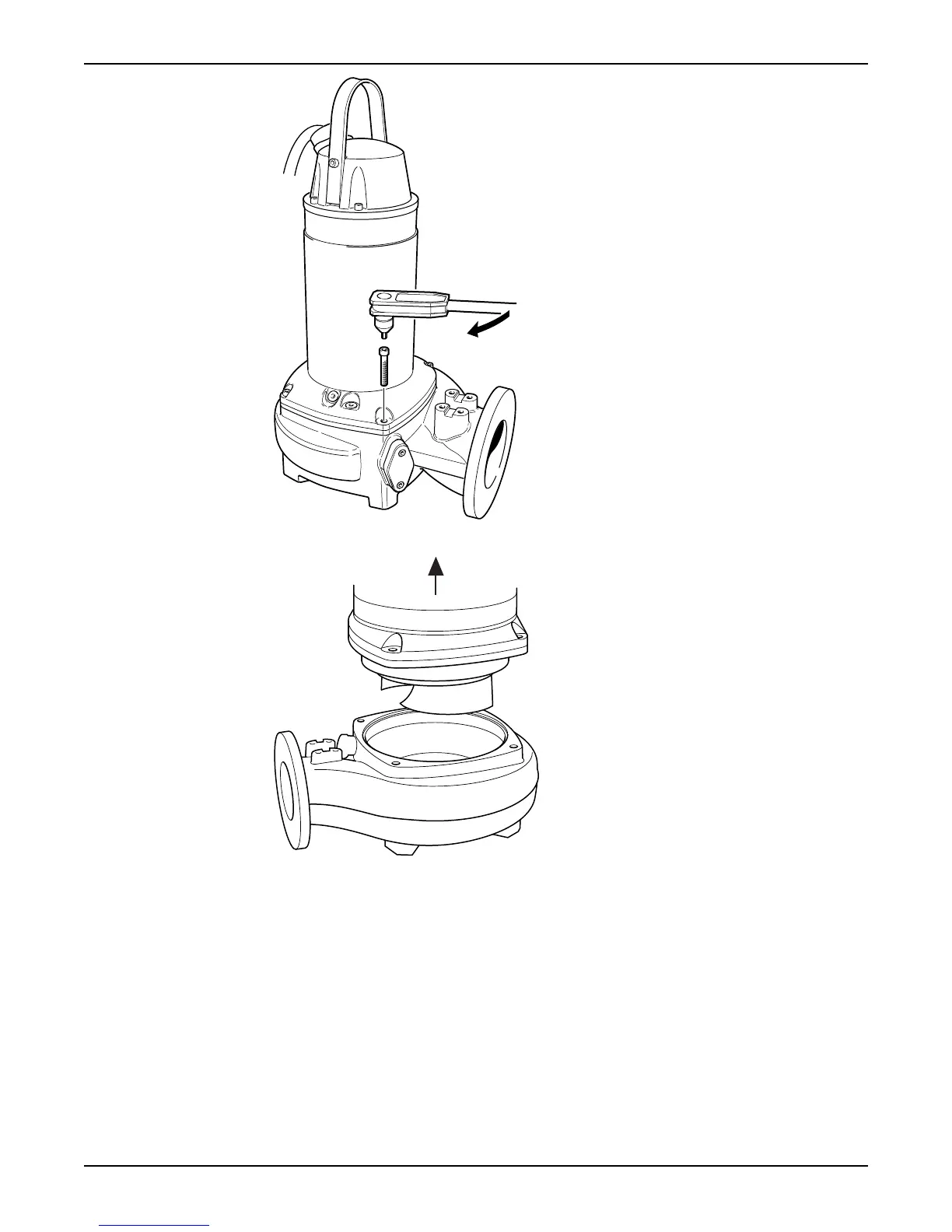

b) Remove the drive unit from the pump housing.
2. Remove the impeller:
a)
Place the drive unit horizontally.
b) Lock the impeller as shown in the figure.
c) Remove the impeller screw.
Maintenance
Flygt 3153 Installation, Operation, and Maintenance Manual 53
