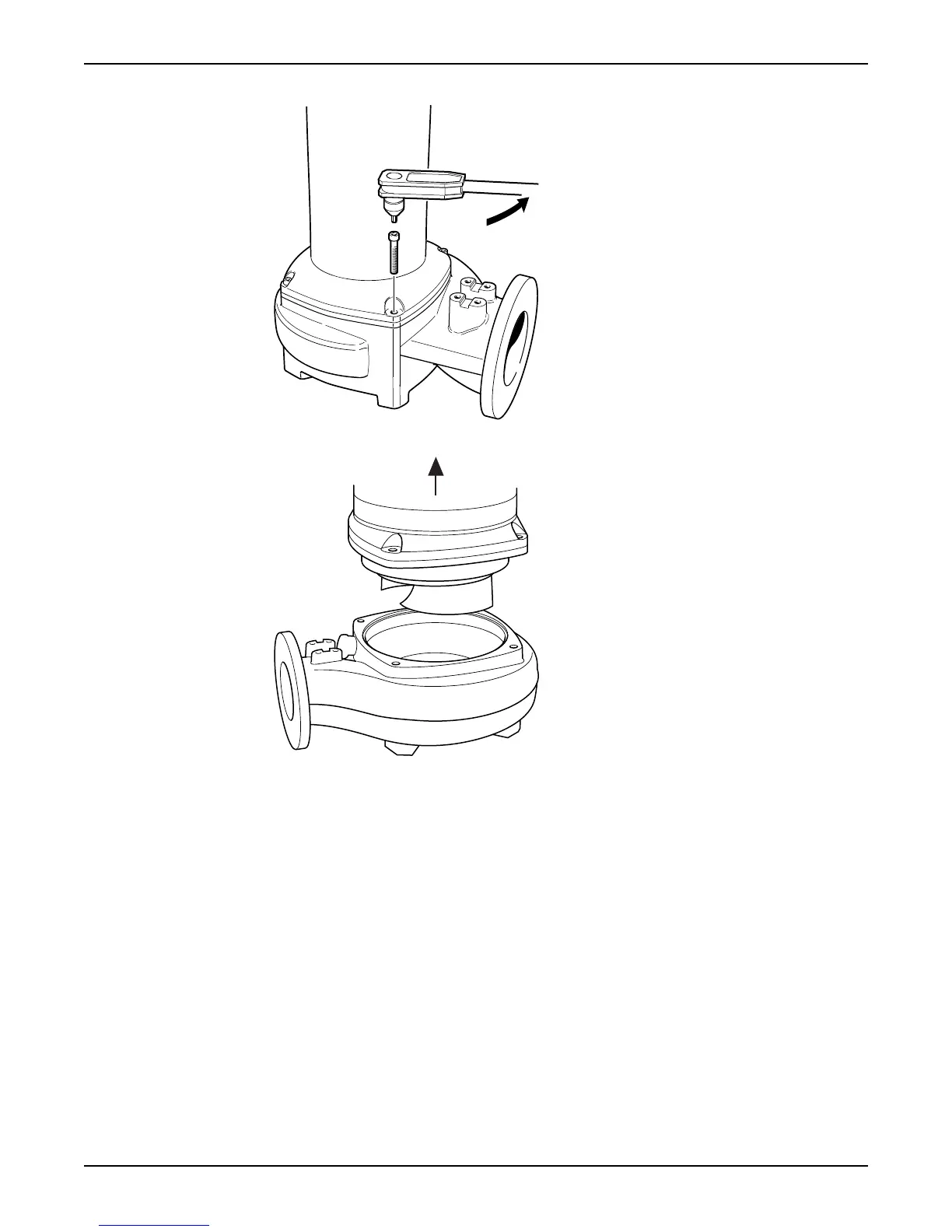

a)
Remove the pump housing screws.
WS006264A
b)
Remove the drive unit from the pump housing.
WS001477A
5.
Remove the impeller:
a)
Place the drive unit horizontally.
b)
Remove the impeller screw.
Maintenance
46
Flygt 3153 Installation, Operation, and Maintenance Manual
