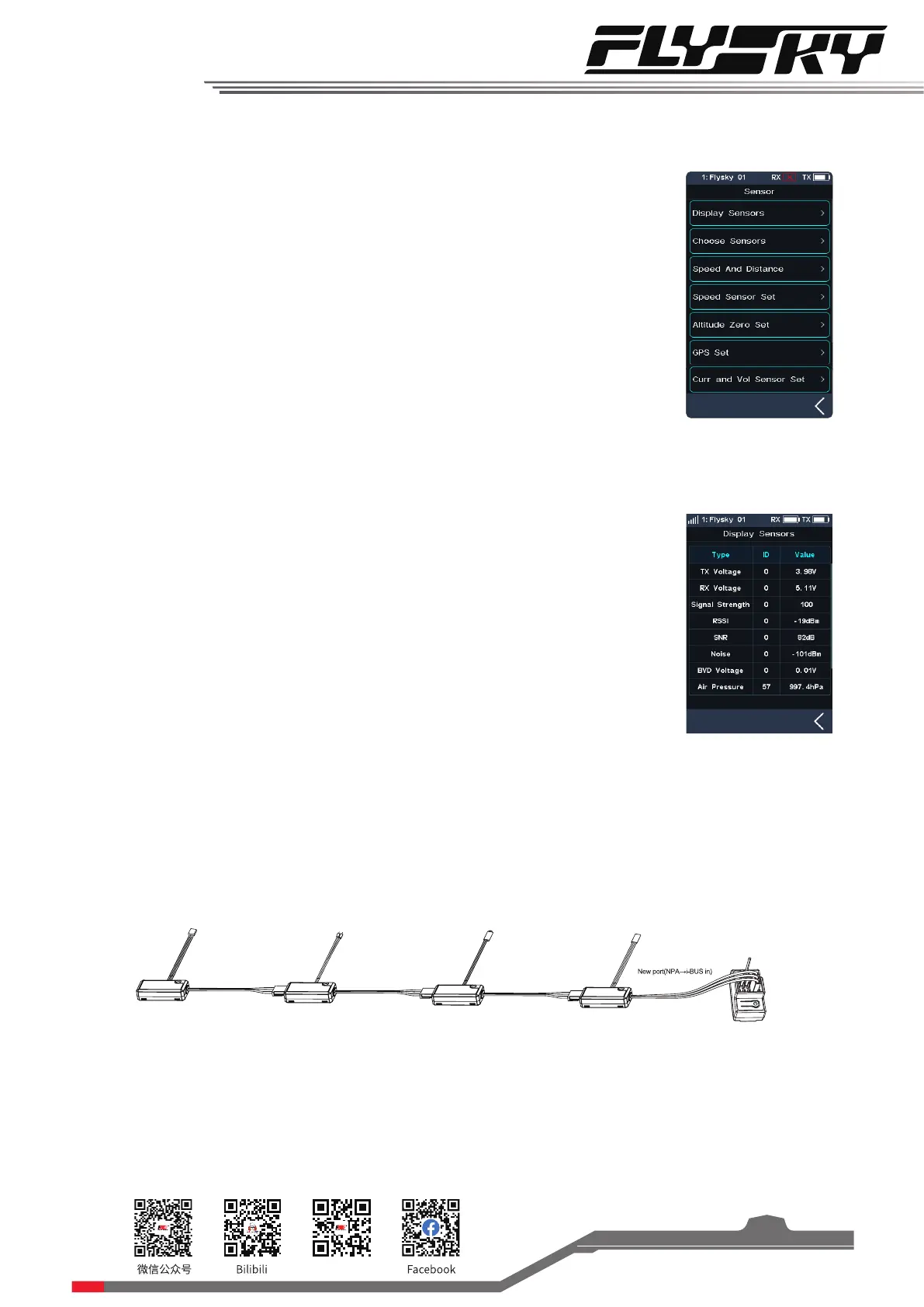

6.11SENSOR







DisplaySensors



󾖷



󽗉


󾖷


i-BUS series sensor connection diagram
FS-CPD02FS-CTM01FS-CVT01FS-CPD01
FGr4B
Notes:
1. If using the AFHDS 3 classic version receivers, you must select the [RX Interface Protocol] in the [RX SET]
menu and select [i-BUS], save and exit, then connect the sensor to the receiver's i-BUS port. All other steps
remain the same.
2. If you use an enhanced version receiver, you need to set the New Port interface to i-BUS in.
