Focus FS-T1001 - Rear View - Connections

Quick Start
FS-T1001 Media Recorder -
5

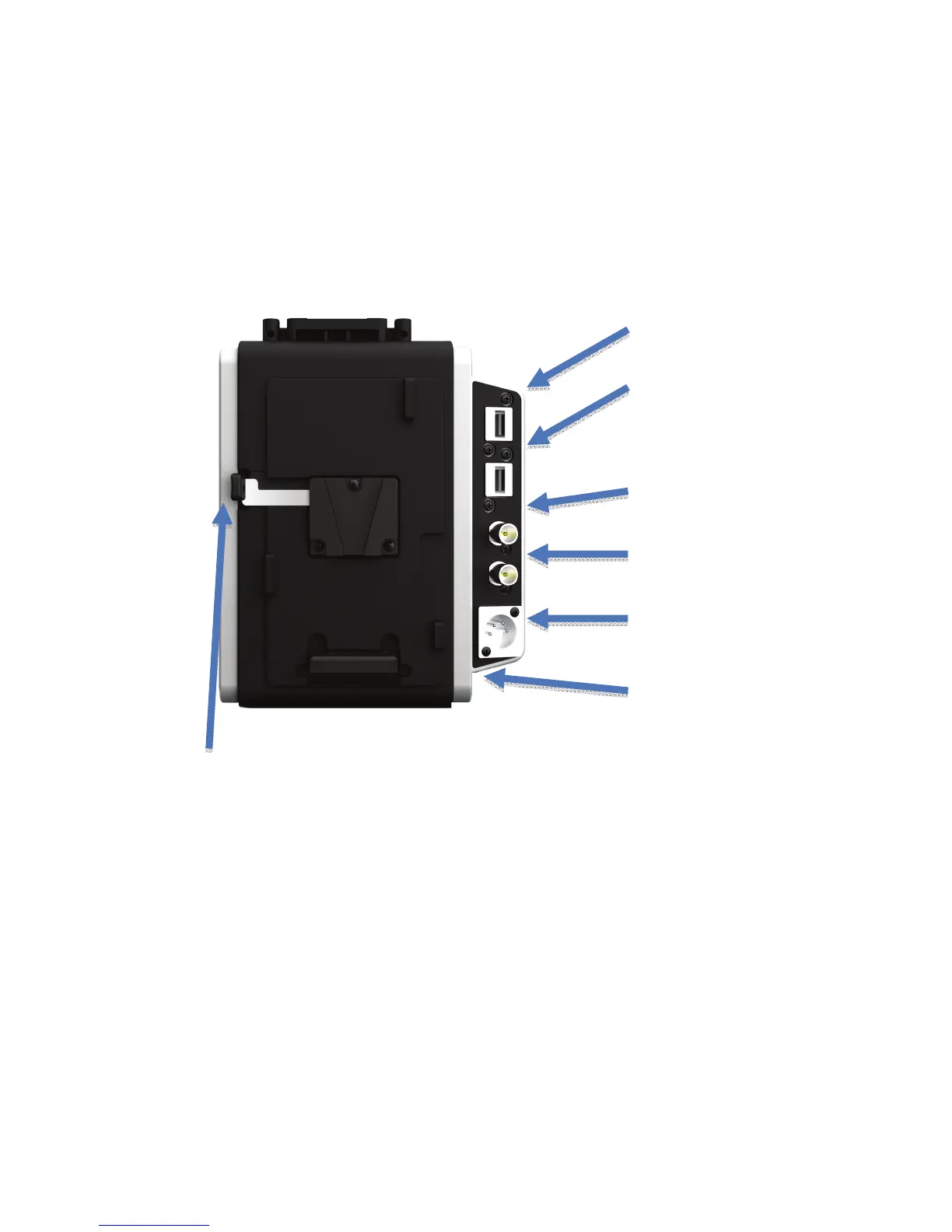

Rear View – Connections
Host / Accessory USB
Port
Computer USB Port
Use to mount an inserted
SxS card to a computer
HD-SDI input (BNC)
HD-SDI output / loop
through (BNC)
Power: 4-pin XLR DC
input (11-17V)
Cable routing latch.
Utilize the included
velcro cable strap to
restrain the SDI cable to
the FS-T1001 unit.
Battery V-lock Mount and Release Lever
