Focusrite Clarett 4Pre USB User Manual

10
Connecting Clarett 4Pre USB to loudspeakers
The 1/4” jack LINE OUTPUTS 1 and 2 on the rear panel will normally be used to drive monitoring
speakers. Self-powered monitors incorporate internal amplifiers, and may be connected directly.
Passive loudspeakers will require a separate stereo amplifier; in this case, the outputs should be
connected to the amplifier’s inputs.
Professional power amplifiers will generally have balanced inputs. If your amplifier or powered
speakers have balanced inputs, use 3-pole (TRS) ¼” jacks to connect them to the Clarett 4Pre USB.
All the line output connectors are 3-pole (TRS) ¼” jack sockets, and are electronically balanced.
Typical consumer (hi-fi) amplifiers and small powered monitors will have unbalanced inputs on RCA
sockets.

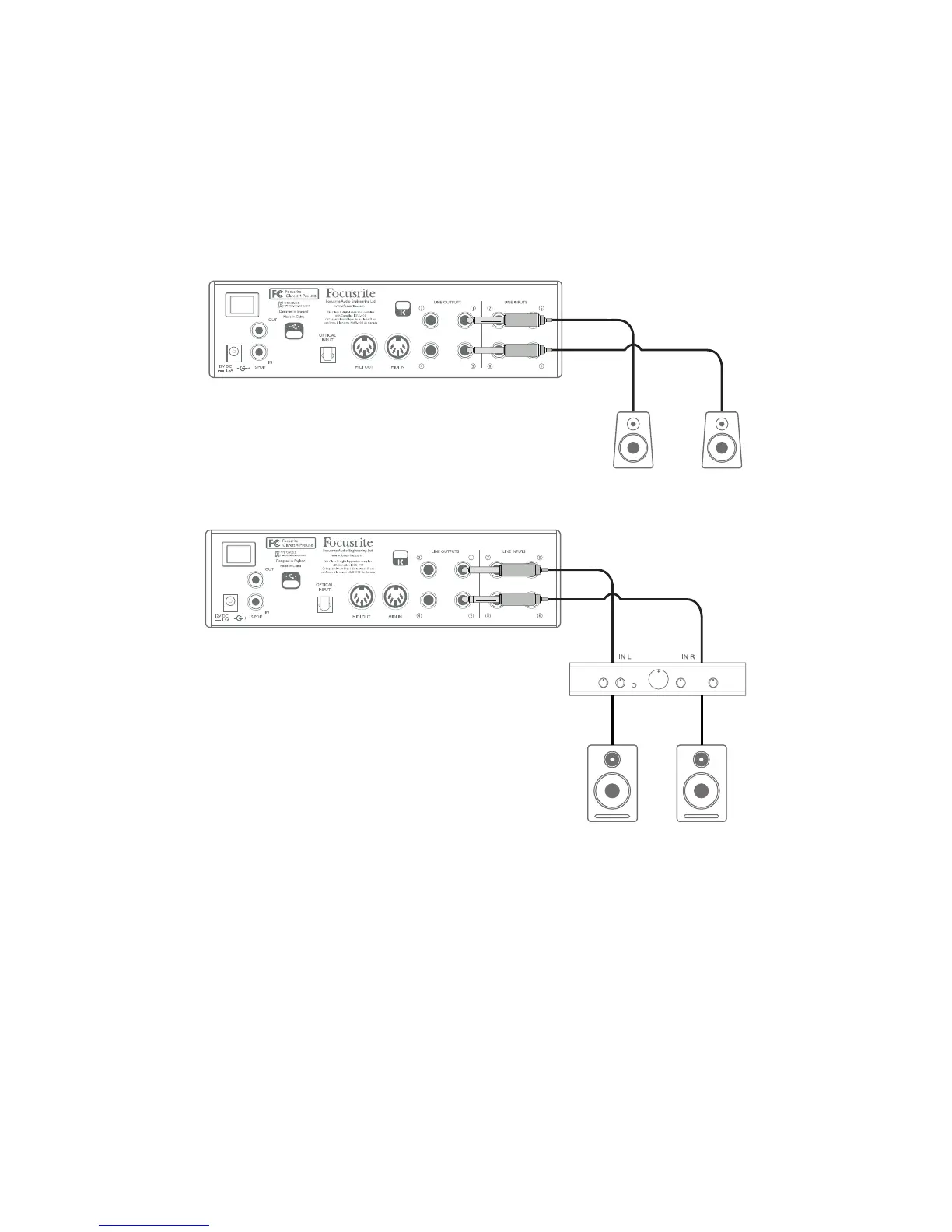

Connecting active speakers
Connecting passive speakers

Focusrite Clarett 4Pre USB Specifications

General

Gain	57 dB
Control type	Buttons, Rotary
Sample rates	44.1 - 192 kHz
On/off switch	Yes
Phantom power	48 V
Product color	Black
LED indicators	Power, Signal strength, USB
Frequency range	20 - 35000 Hz
Built-in display	No
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan
Total Harmonic Distortion (THD)	0.001 %
Windows operating systems supported	Windows 10, Windows 7, Windows 8.1
USB port type	USB Type-C
USB ports quantity	1
6.35 mm (1⁄4-inch) input	4
6.35 mm (1⁄4-inch) output	6
DC output voltage	12 V

Weight and Dimensions

Depth	192 mm
Width	222 mm
Height	63.5 mm
Weight	1350 g
