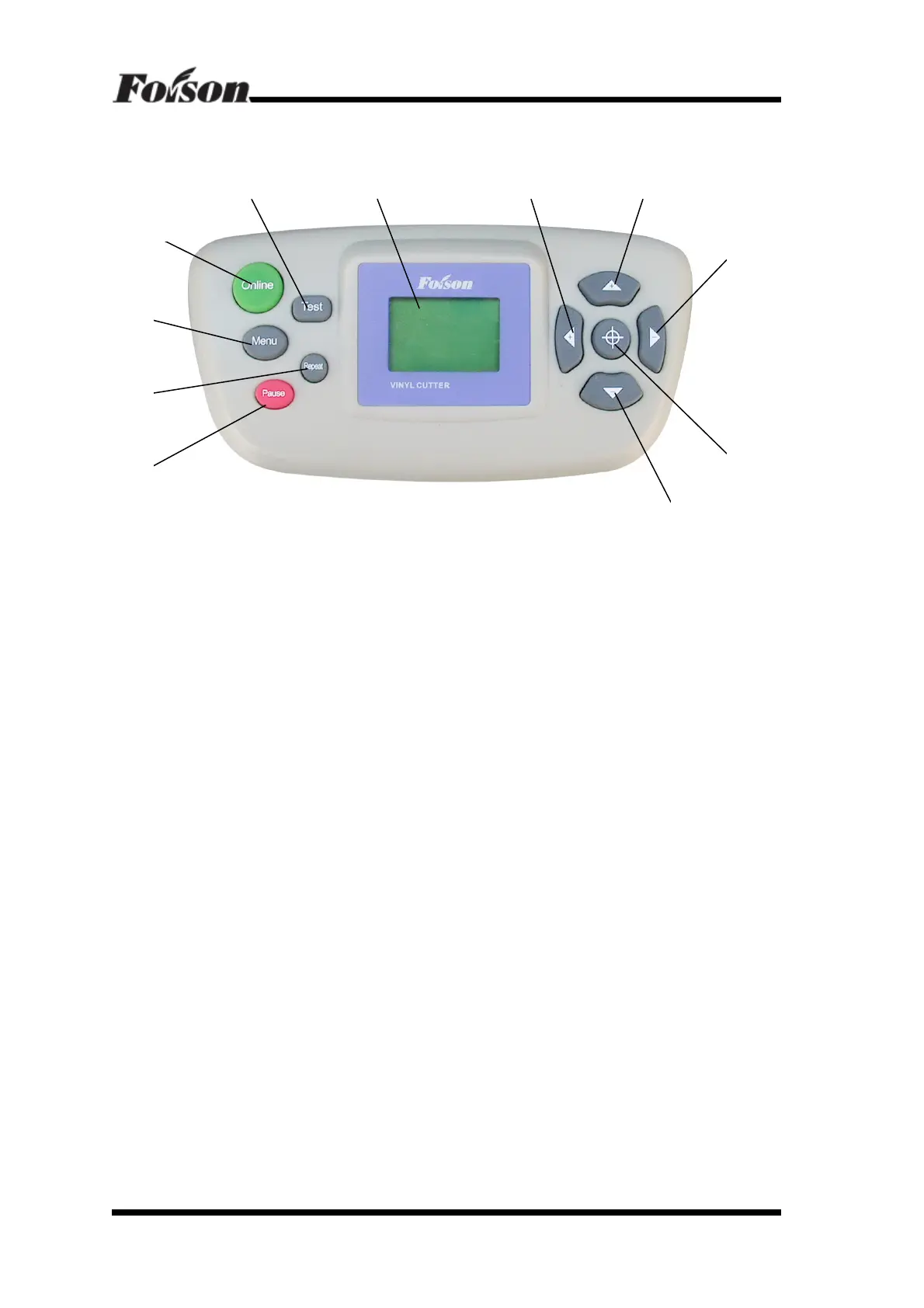

4.2 Control Panel
1、 LCD（LCD）Display
2、 Paper Feeding Button: it is X direction button under offline; it is value“－”under
parameter menu.
3、 Original Setting Button: Press such button to fix the coordinate point under offline.
Press more than 2 seconds under “Welcome” interface, the machine will
reinitialize, all data in buffer memory will be cleared. You could go back to the
default parameter.
4、 Rightward Button: it is Y direction button under offline; it is value“－”under
parameter menu.
5、 Paper Withdrawal Button: it is X direction button under offline; it is value “+”
under parameter menu.
6、 Leftward Button: it is Y direction button under offline; it is value “+” under
parameter menu.
7、 Pause Button: Switch to pause/resume model under online working.
8、 Repeat Button: to repeat last job.
9、 Menu Button: Switch to online and menu model.
10、Online Button: Switch to online and offline model.
11、Testing Button: (Press for a short time) to up and down the knife; or (press for a
long time) to test a rectangle itself.
