Foison C30 - Knife Drop;Raise Test; Test Rectangle Cutting Operation

C SERIES USER’S MANUAL
25
6.4.4 Knife drop/raise Test
Press Repeat to test knife drop/raise. Press once is knife drop and press once again knife
raise. Please refer to the media and examine the difference after changing the knife force.
Hints: the difference effect can be seen after using normal knife force.

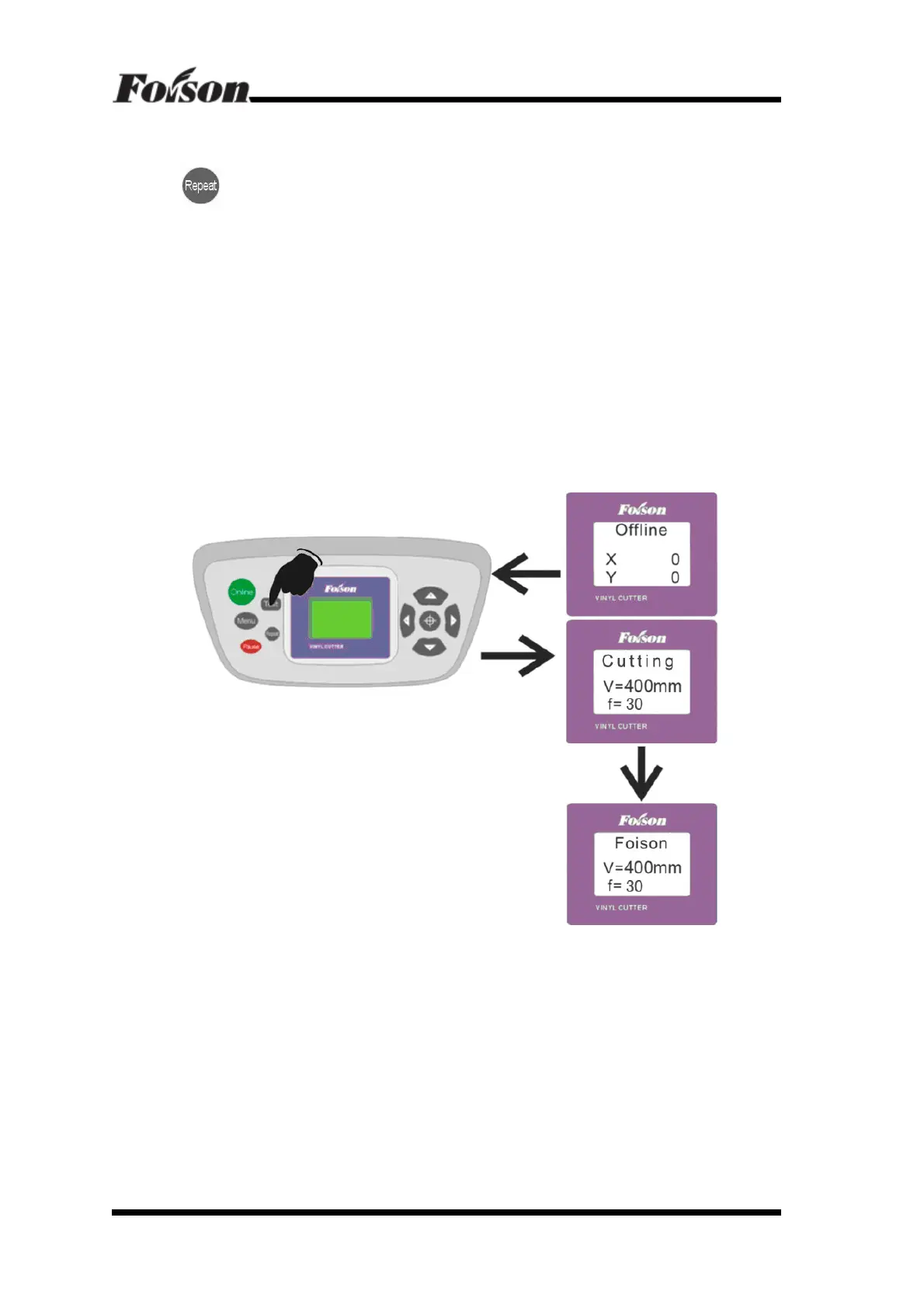

6.4.5 Test Rectangle Cutting Operation
In the Online situation to test the up and down of the knife. The first click is to drop the knife,
and click it again is to raise the knife.
Press Te st, the cutter will begin test. The Test button is effective only when the cutter is Offline.
When the cutter is working, the LCD will display Cutting. After it finishes working, the cuter
will turn back to online status, i.e.: display Foison. Shown as followings:
