20 01134592 – REF20/25 LB, PH, BB
10. Removing one at a time, transfer wiring from the original control
board to the replacement control board, ensuring each wire is
secured at the same location it was removed from.
11. Flip façade cover back into position on façade and reinstall 4
screws.
12. Remount façade to bayonet mounts.
13. Reconnect ground wire to grounding location on cabinet.
14. Reconnect all electrical and probe connections.
15. Plug in unit and power on, ensuring proper operation.
Reversing the door swing (requires a new door)
REF20/25 units ship standard with a non heated right hinged door. To
change to a left hinged conguration requires a new door. For heated door
options other parts may be required. If the unit has a heated door option
consult technical service by calling (877) 612-5086 or +1 (610) 252-7301.
Door gasket replacement

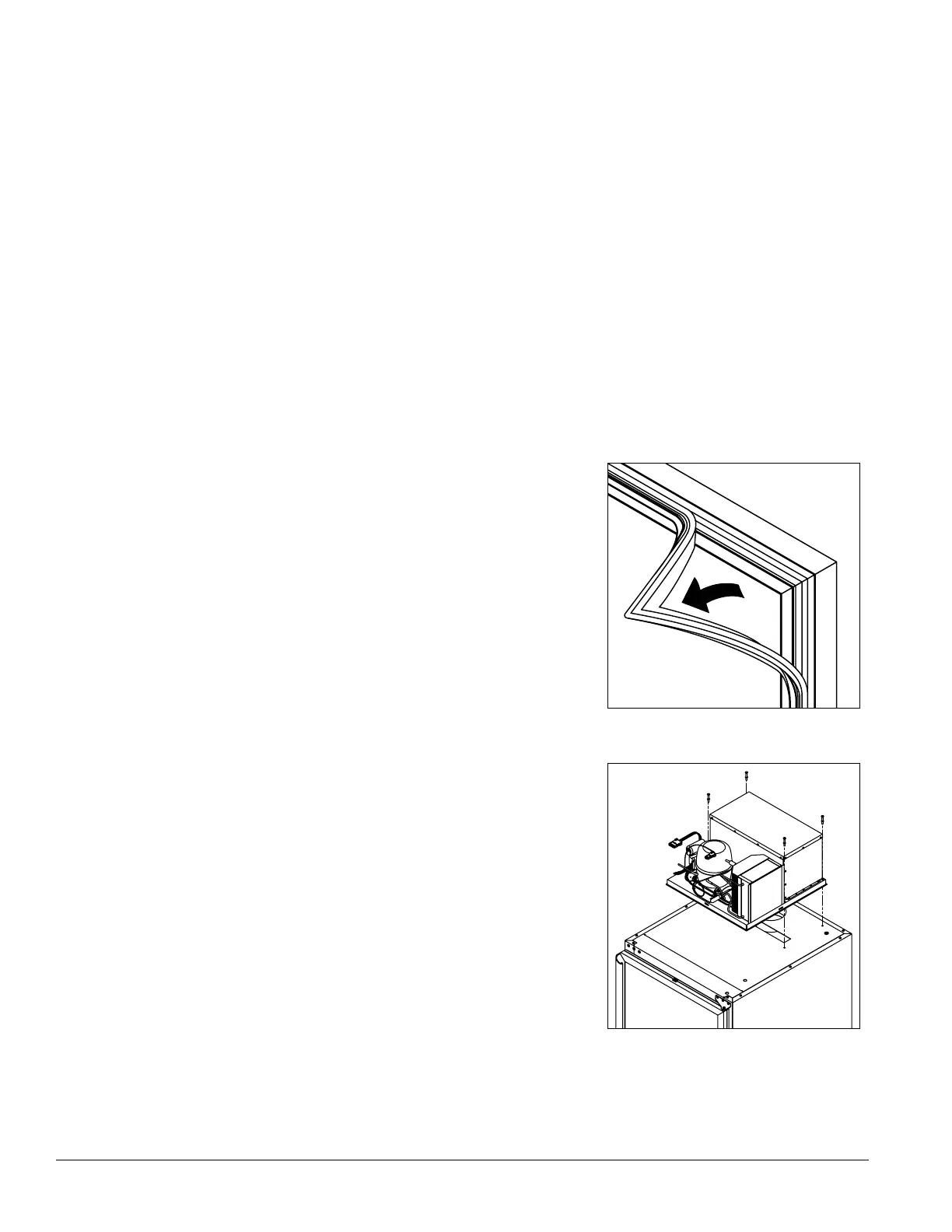

Fig. 34
1. Remove existing gasket from mounting track (Fig. 34).
2. Verify mounting track is free of any remaining gasket material.
3. Align new gasket with mounting track and press rmly in place.
4. Open and close door, checking for proper gasket seal without
pinching against refrigerator.
Slide-out unit cooler
Fig. 35
Follett’s slide-out refrigeration system allows technicians to remove the
entire unit from the refrigerator top.
1. If necessary remove facade and upper side panels.
2. Remove four bolts securing unit cooler to refrigerator top (Fig.35).
3. Gently lift off cooler.
