Installation
DANGER
• Do not tilt any unit further than 30° off vertical during uncrating or
installation
• Refrigeration module area contains mechanical, moving parts. Keep
hands and arms clear of this area at all times. If access to this area is
required, power to unit must be disconnected rst.

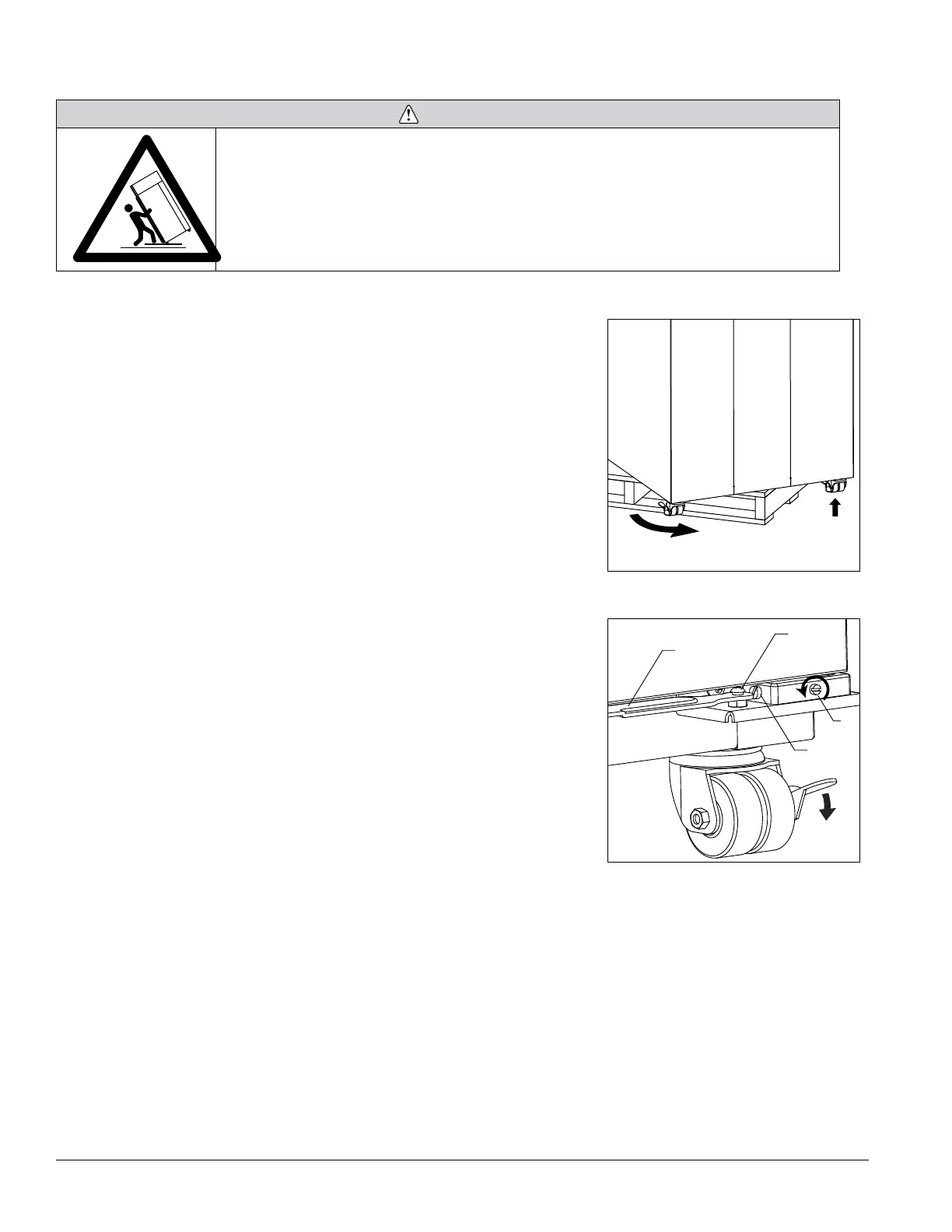

Fig. 1
1. Remove key taped to side of refrigerator cabinet and unlock door.
2. Remove casters from box packed inside refrigerator.
Note: California facilities requiring wall and oor anchors – refer to
wall anchor kit instructions (#00938241) packed with seismic kit
before proceeding with caster installation.
3. Unbolt refrigerator from pallet.
4. Rotate refrigerator on pallet to install casters (Fig. 1.1).
5. Install casters by hand one at a time using channel locks to tighten,
until caster meets against the bottom of cabinet (Fig. 1.2).
6. Peel protective lm from exterior walls of stainless cabinet.
Adjust self-closing door
Fig. 2
1. Roll refrigerator to desired location and lock as many casters as
possible (Fig 2.1).
2. If the door appears to be sagging, remove the philips screw
(Fig.2.2) holding the Hold Open Bracket to the Hinge Bracket to
gain access to the Sag Adjustment Screw (Fig. 2.3). Turn the Sag
Adjustment Screw to align the door squarely with the freezer cabinet.
When nished, reinstall the Hold Open Bracket.
3. Check door for closing tension and adjust if necessary. To
check closing tension, open door 1” and turn screw (Fig. 2.4)
counterclockwise until you achieve positive close. (Light will go out)
Then, turn another half turn counterclockwise.
1
2
2
1
3
Hold Open
Bracket
4
