Follett REFVAC4P - Refrigeration System Diagram; Compressor Information

REFVAC4P, REFVAC5P Undercounter Refrigerators 25

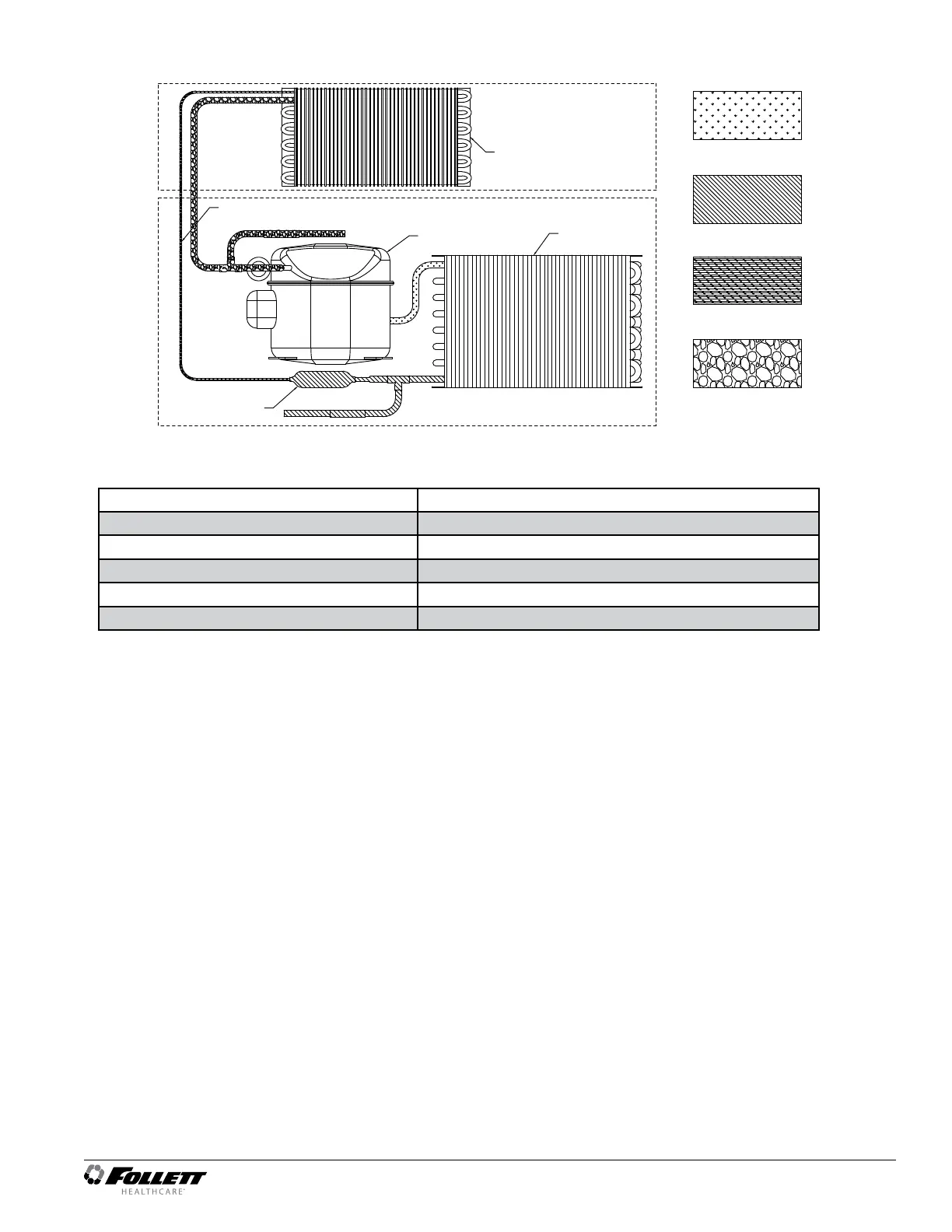

Refrigeration System Diagram
HIGH PRESSURE VAPOR
HIGH PRESSURE LIQUID
LOW PRESSURE LIQUID
LOW PRESSURE VAPOR
FILTER-DRIER
COMPRESSOR
EVAPORATOR
CAPILLARY TUBE
CONDENSER
Compressor Information
Compressor model NF6.1FX .2
Run load amps (RLA) 3.2
Lock rotor amps (LRA) 22.2
Ohms start winding to common 3.1
Ohms run winding to common 2.0
Ohms start winding to run winding 5.1
