Follett Symphony 25CI400A - Dispenser Parts - Lever Models; Chute and Splash Panel Parts (S;N D61292+)

25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 35

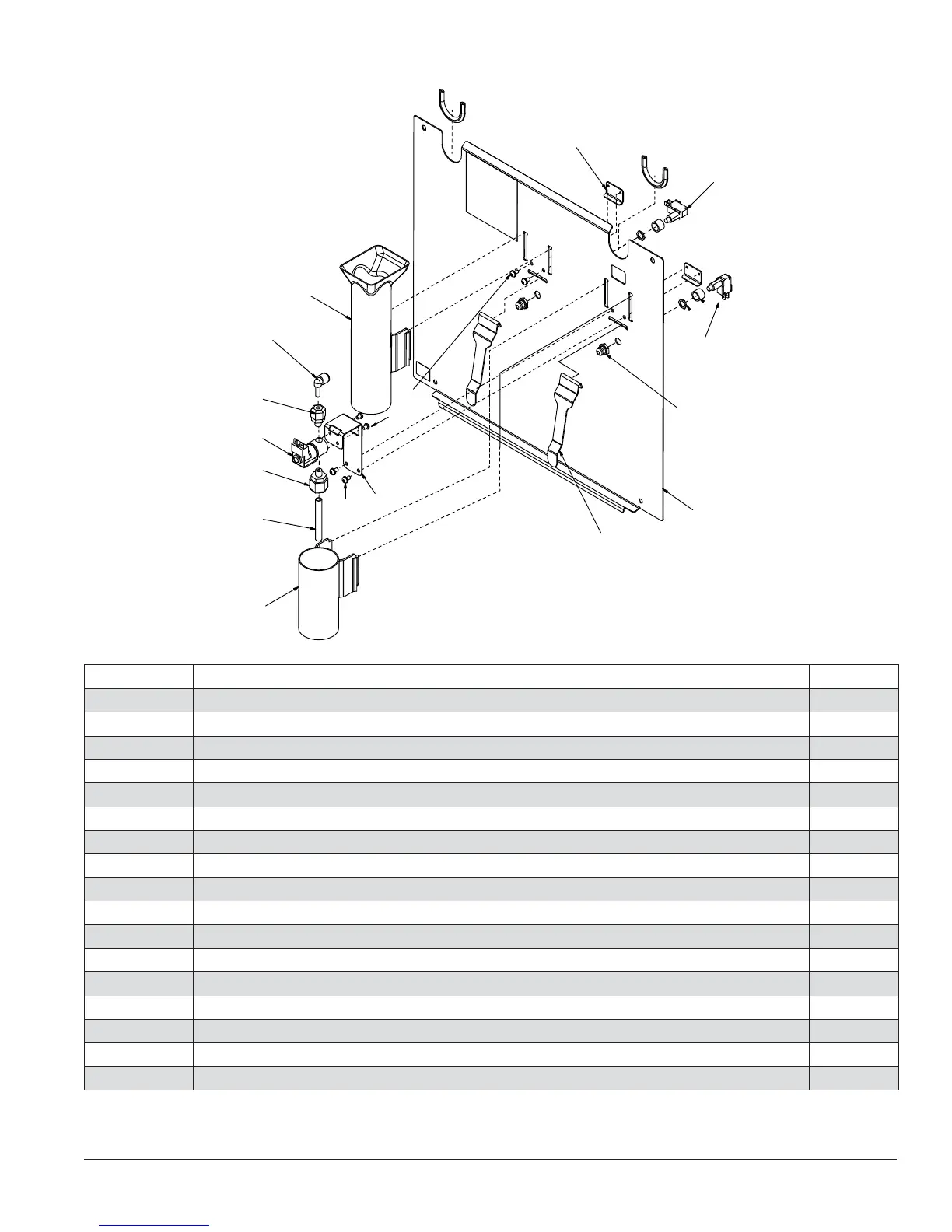

Dispense chute and splash panel areas (lever models) — Serial Number D61292 and above
13
3
1
8
12
9
10
14
6
7
5
2
9
4
11
3
15
Reference Description Part #
1 Boot, dispense switch button (mounts on 00981217 switch) 502418
2 Bracket, water solenoid 00987875
3 Switch, dispense, ice or water, lever actuated (includes boot) 00981217
4 Tube, water station 00187682
5 Fitting, outlet, 1/8" MPT x 3/8" comp 502262
6 Fitting, inlet, 1/8" MPT x 1/4" comp 502246
7 Solenoid valve, water, 120 V, 60Hz 502243
8 Splash panel, lever dispense 00981290
8 Splash panel, lever dispense, ice only 00981308
9 Screw, bracket 00982421
10 Chute, ice (with Agion
®
antimicrobial product protection
1
) 00984831
11 Chute, water (with Agion) 00984898
12 Lever, dispense 00976845
13 Bracket, lever 00958793
14 Elbow, 1/4" 00121699
15 Screw, valve 203227
Not shown Tubing, water station, thermoplastic, 1/4" OD (sold by the foot) 502079
1
Disclaimer: Antimicrobial protection is limited to the treated components and does not treat water or ice.
Agion is a registered trademark of Agion Technologies, Inc, Wake eld, MA, USA.
