The Alpha 600XJ series is using the receiving RF module to pair with each transmitter. That is, the
receiving RF module memorizes the system type and ID code of the transmitter. The receiving RF
module is receiving signals only when the system type and ID code received are identical to the ones
saved in the momery. If not, the signals will be objected.
1. One receiving RF module can only pair with one transmitter ID. Whenever a different transmitter
with different ID code is replaced, the procedure of receiving RF module pairing will need to be
started again.
2. If the spare transmitter and the original one are set with the same ID code, the spare transmitter can
be operated again without been pairing again.
3. The same transmitter can be paired with several receiving RF modules at the same time. That is,
the transmitter can work with all the receivers which have ever been paired.
Receiving RF Module LED Status Table
Receiving RF module
Priority
Red status LED
Pairing
button
Status instruction
1
Blink twice every second
Not
related
TX testing mode (for in-factory testing)
2
Flash (0.1 sec On/0.1 sec Off)
Press &
hold
Transmitter pairing successfully
3
Not lit
Press &
hold
Not yet paired to any transmitter
4
Not lit
No
pressed
No any transmitter pairing records
5
Quick flash (0.05 sec On/0.05
sec Off)
No
pressed
Receiving signals for transmitter paired
6
Slow flash (1 sec On/1 Sec
Off)
No
pressed
Transmitter paired, waiting to be operated.

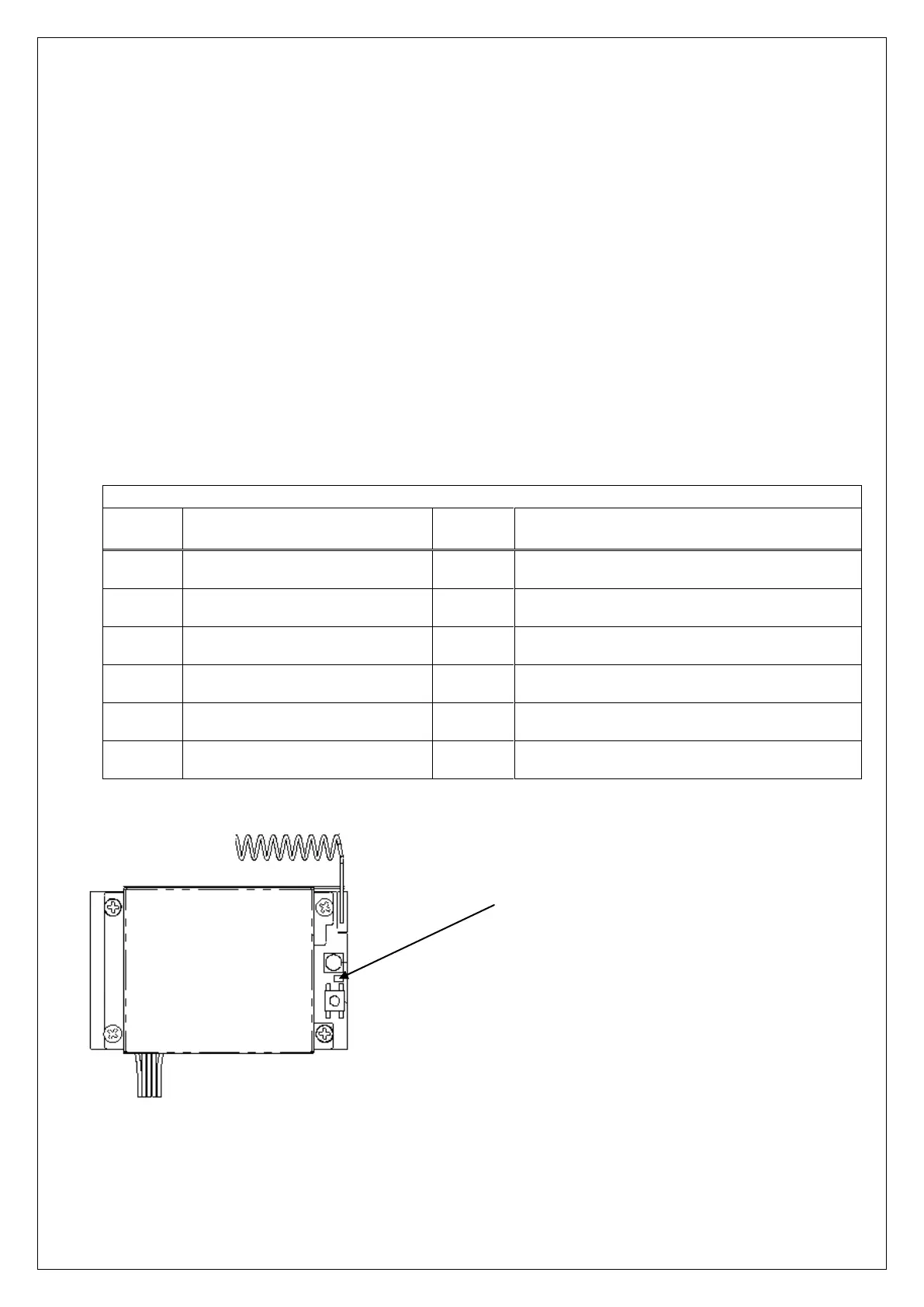

Receiving RF module LED
α604 refer to 4.1.2 (10) receiving RF mode red status LED
α607/8 refer to 4.1.3 (12) receiving RF mode red status LED
α612 refer to 4.2.2 (16) receiving RF mode red status LED
