Fomotech FHSS Series - Α612 Receiver Voltage Settings; Frequency (RF) Range

- 35 -
7.5.4 Alpha 612 Receiver Voltage Settings
1. Select the voltage of the place where the receiver is installed.
2. Select the position of the “Y” terminal base on the label marked on the transformer.
If the default voltage setting is different from the place where the receiver is installed, please
change the setting base on below steps:

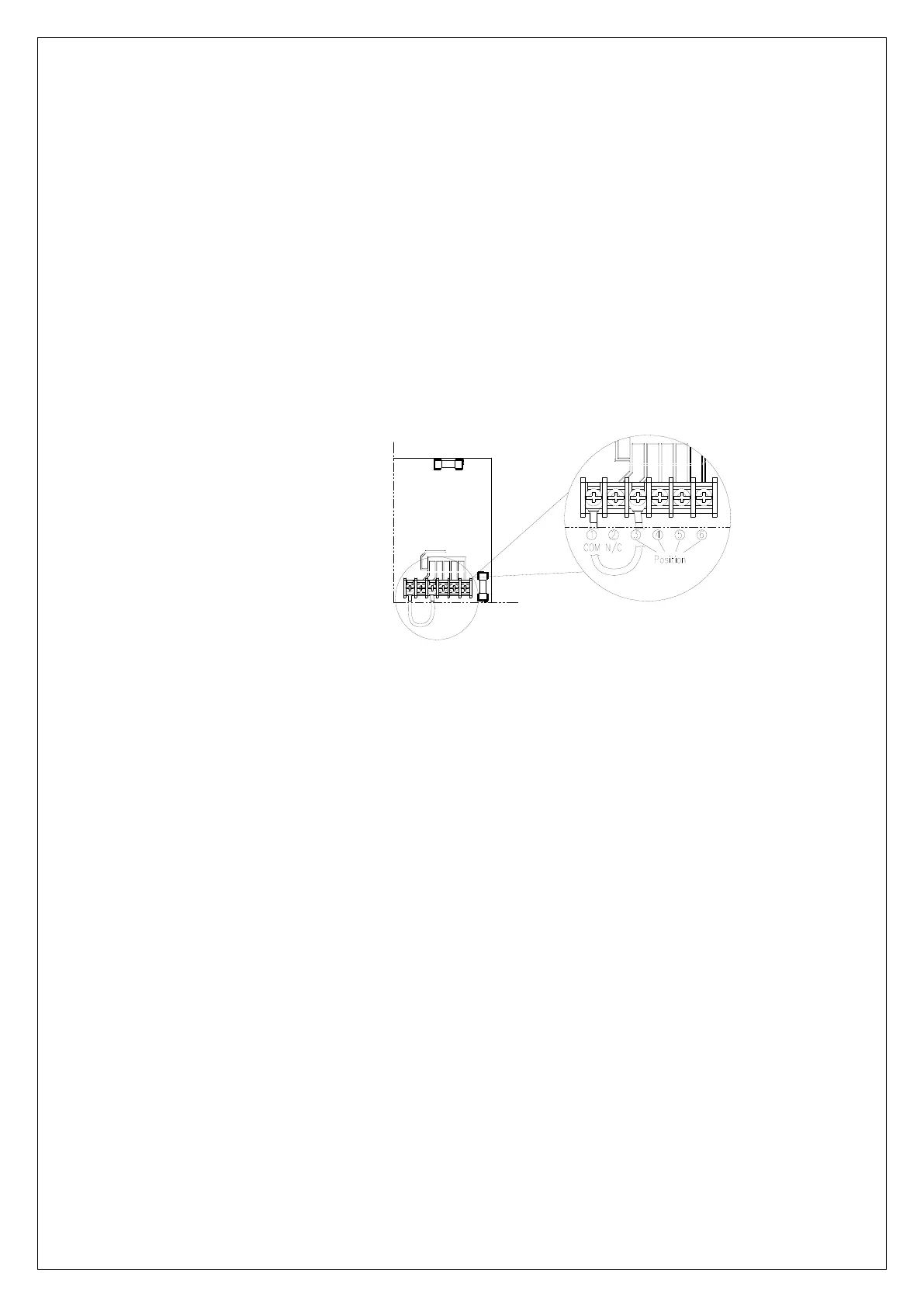

2.1 Please first refer to below figure. Keep the “COM” end of the wire in
the position as it is, remove the “Y” terminal from the other end of the wire,
then screw the position originally with “Y” terminal tightly.
2.2 Select the voltage needed base on the label of the transformer. Unscrew the positi
on selected, put the “Y” terminal into the position selected and screw it tightly.
Transformer type no. ：
K-2367
․Position ③ AC 110V → AC 100V ~ AC 125V
․Position ④ AC 240V → AC 200V ~ AC 240V
Transformer type no.：
K-2368
․Position ⑤ AC 380V → AC 350V ~ AC 380V
․Position ⑥ AC 460V → AC 400V ~ AC 460V
Transformer type no.：
SSB-2665
․Position ③ AC 25 V
․Position ④ AC 36 V
․Position ⑤ AC 42 V
․Position ⑥ AC 50 V
3. Please make sure that the wire and the 5 screws are securely screwed.
7
7
.
.
6
6
F
F
r
r
e
e
q
q
u
u
e
e
n
n
c
c
y
y
(
(
R
R
F
F
)
)
R
R
a
a
n
n
g
g
e
e
The frequency range of Alpha 600XJ group channel series is 902~928MHz. Please refer to 6.2.2 for
more details.
