Fomotech FHSS Series - Α612 Receiver Function Settings; Α612 Models Dip-Switch Function Table

- 33 -
JP1
JP2
JP3 JP4
JP5
JP6 JP7

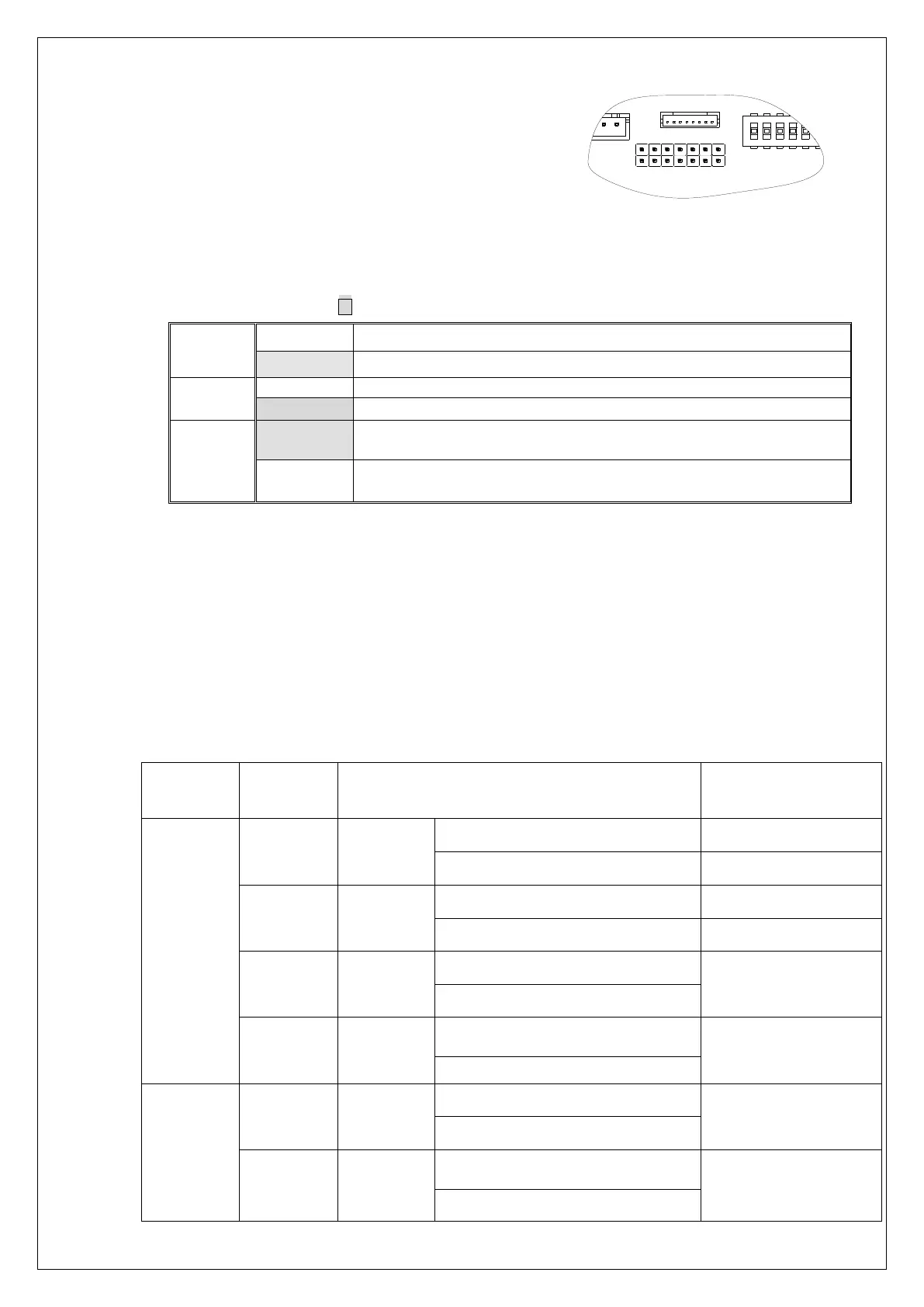

7.5.2 α612 Receiver Function Settings
7.5.2.1 Set by the programming tool
Set from programming port CN5.
7.5.2.2 Adjust Jumper setting function on decoder board
R
R
e
e
c
c
e
e
i
i
v
v
e
e
r
r
f
f
u
u
n
n
c
c
t
t
i
i
o
o
n
n
s
s
e
e
t
t
t
t
i
i
n
n
g
g
:
:
Jumper Set Table: In-plant setting (default).
JP1
Open
Not available
Short
Transmitter power switch start (when MAIN is off)
JP2
Open
No function
Short
No function
JP3
Open
When the transmitter voltage is low, LV relay activates/deactivates
every second.
Short
When either relay of pushbutton 1~8 is activated, LV relay will also
be activated.
“Start” means: MAIN relay unlatches and then latches. JP1/JP2 is for Mode 0, Alpha 600-J series
is for Mode 1 only:
JP1 setting is not available. Please proceed setting only when power is off.
JP2 No function
※ Open → No jumper Short → Put Jumper
7.5.3 Alpha 612 Models Dip-Switch Function Table
※
※
In-plant all set as “0”
Model
Pushbutton
Dip-Switch Setting
Description
612AJ
1 & 2
3 & 4
5 & 6
DIP 1
→ 1
Not Interlocked
→ 0
Interlocked
7 & 8
DIP 2
→ 1
Not Interlocked
→ 0
Interlocked
7 & 8
DIP 3
→ 1
Latching/toggle relay contact
DIP2 set at “1”
→ 0
Momentary relay contact
9 & 10
DIP 4
→ 1
Not Interlocked
→ 0
Interlocked
612BJ
9
DIP 5
→ 1
Latching/toggle relay contact
DIP4 Set at “1”
→ 0
Momentary relay contact
10
DIP 6
→ 1
Latching/toggle relay contact
DIP4 Set at “1”
→ 0
Momentary relay contact
