Fomotech FHSS Series - Battery Charger LED Status Light

- 43 -
Charging
Charging completed
Charging failed
:
:
:
POWER

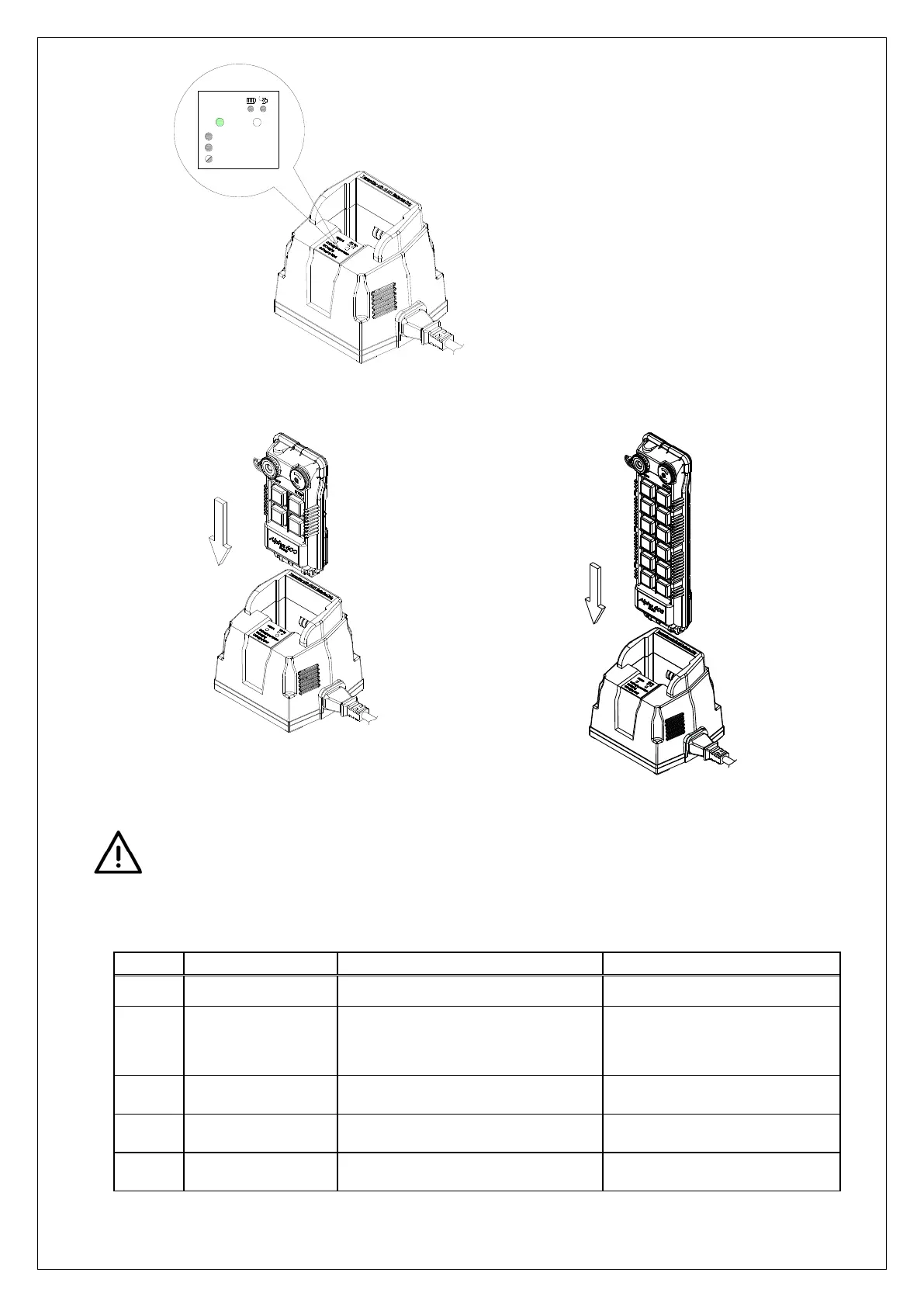

Slide-in transmitter into battery charger (transmitter vinyl protective cover has to be taken off)
α604
α612
THE RECHARGEABLE BATTERIES HAVE TO BE RECHARGED
WITHIN 6 MONTHS AFTER THE MANUFACTURING DATE.
10.2 Battery Charger LED Status Light
Item
Status
Condition
Status Light
1
Startup check
Within 2 seconds after power is on
Red + Green LED for 2 sec
2
Charging failed
No battery inside transmitter battery
holder or non-rechargeable battery is
used.
Red LED OFF_0.1/ON_1.9 sec
3
Charging
Charging procedure is normal
Red LED ON
4
Charging completed
Charging procedure is completed
Green LED ON
5
Standby
No transmitter in the charger
Not lit
