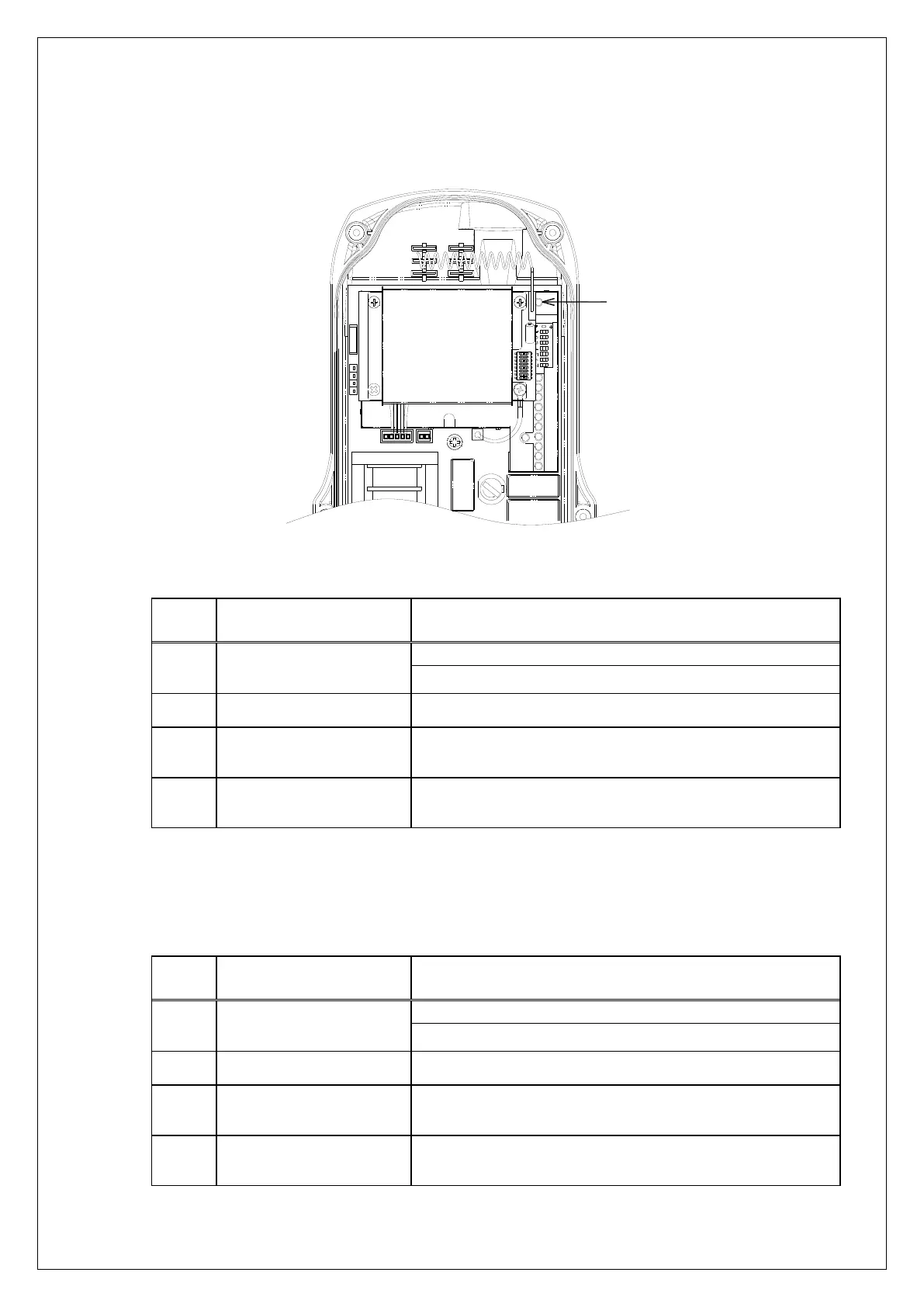

9.4.1. α604/607/608 Receiver System LED Display
FUSE
α604/607/608 Receiver system LED Display
Type
LED Indication
Problem and Solution
1
Constant flash red light.
EEPROM error – reprogramming required.
Transmitter ON: Receiving signals from transmitter normally.
2
Dim or no light.
Under-voltage, check the MAIN relay power-supply.
3
ON → 2.0 seconds
OFF → 0.1 second
MAIN contact relay jammed or defective.
4
ON → 0.1 second
OFF → 2.0 seconds
Receiver under standby status.
9.4.2. α612 Receiver System LED Display
Receiver system LED Display
Type
LED Indication
Problem and Solution
1
Constant flash red light.
EEPROM error – reprogramming required.
Transmitter ON: Receiving signals from transmitter normally.
2
Dim or no light.
Under-voltage, check the MAIN relay power-supply.
3
ON → 2.0 seconds
OFF → 0.1 second
MAIN contact relay jammed or defective.
4
ON → 0.1 second
OFF → 2.0 seconds
Receiver under standby status.
Status Light
