Fomotech FHSS Series - Transmitter Status Light

- 37 -
Under high temperature protection: Press every pushbutton will send null commands and the
corresponding pushbutton relay will be unlatched. In case of high temperature protection functions,
please keep the transmitter away from high temperature environment and shut off transmitter power.
High temperature protection won’t be deactivated only after transmitter is back to operating
temperature -10 ~ +60℃ and restarted.
8. To operation normally, the battery power must over 2.2V. If the voltage is lower than 2.2V, the
system cannot be started and low voltage will be showed until the MAIN is completely shutdown.
9. If the power voltage is lower than 2.2V when transmitter is operated, the LV code will be “1” and low
voltage status light will be shown. For standard version, the transmitter will stop sending signals
when voltage is lower than 2.0V.

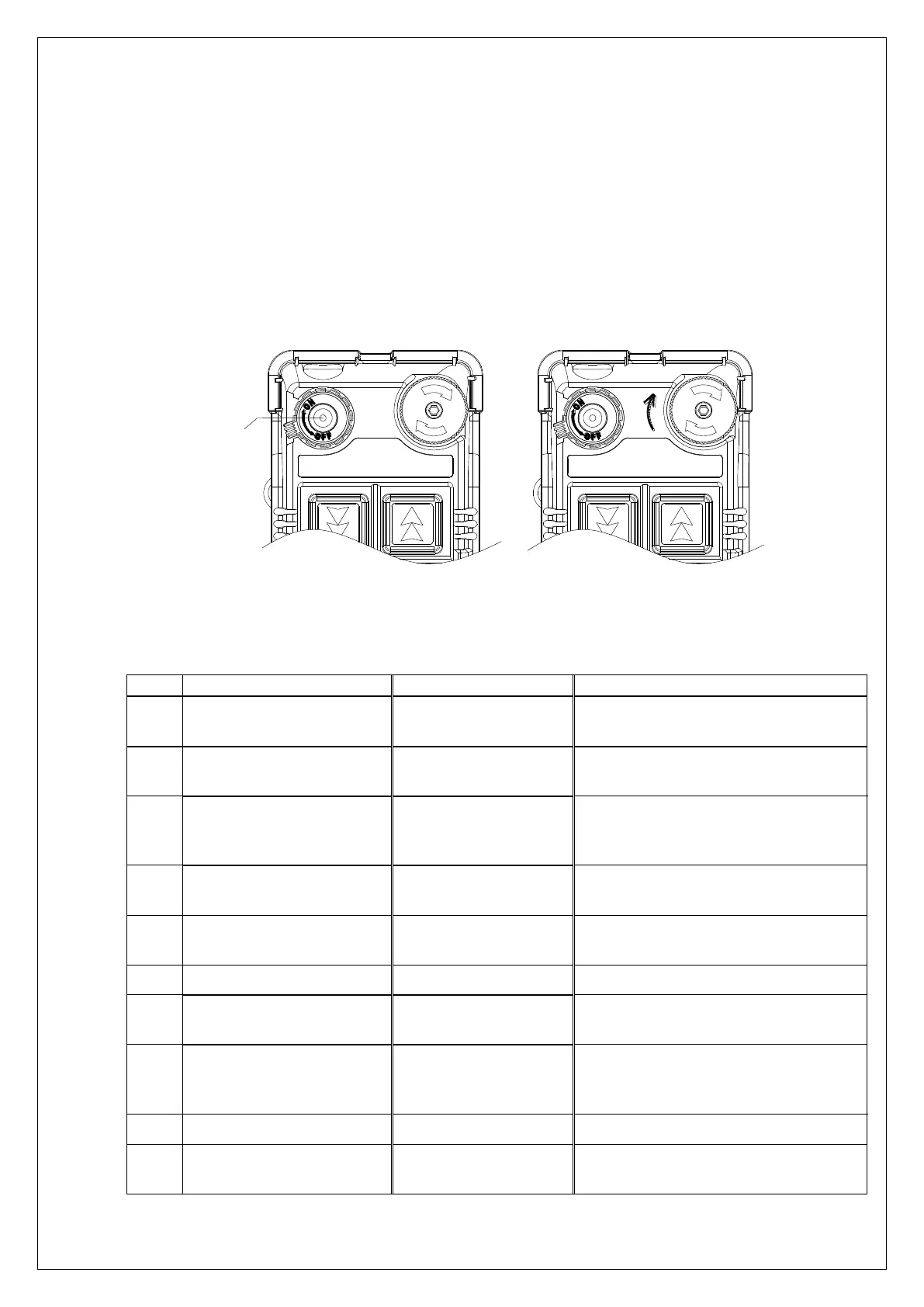

STOPPOWER STOPPOWER
STOP: press → lock (emergency stop) STOP: Elevate clockwise → reset (Turn on the transmitter at any time)
8.2 Transmitter Status Light
Type
Status
Problem
LED Indication
1
Charging
Place transmitter into
charger
Constant red light ON
2
Power on when voltage is
low
BATT<2.2V
Blinking red light flash
ON_0.1/OFF_1.9 sec (until power off)
3
Setting failed or invalided
Set data by using
JUMPER & dip-switch
without following rules
Fast blinking on
Red light ON_0.1/OFF_0.1 sec
4
Setting completed
JP1 or JP2 inserted
Constant green light ON until transmitter
power shuts off.
5
EEPROM ID error
EEPROM ID code does
not match CPU data
Constant red light ON until transmitter
power shuts off
6
RF module abnormal
PLL UNLOCK
Red light ON_0.1/OFF_0.1 sec
7
Pushbutton locked
Power on pushbutton
connected
Red light ON_1.9/OFF_0.1 sec (until
power off)
8
Normal power on
BATT>=2.2V and all the
pushbuttons are not
depressed
All the lights ON_2 sec
9
STOP status
STOP button is pressed
MODE 1: all the lights OFF
10
Low voltage during
operation
BATT<2.2V and press
pushbutton
Red light flash ON_0.1/OFF_1.9sec
Power status light
