If feed becomes jammed:
1. Stop the engine and remove ignition key.
2. Open engine and chipping chamber covers.
3. Release feed roller spring tension on both sides by slackening off the eye bolt
nuts and remove if necessary.
4. Insert feed lift tool and lift top feed roller to fully open.
5. Insert M12 screw into side of feed chamber and screw completely in. Lower
top feed roller onto the screw to secure in the open position.
6. There should now be access to the feed chamber. Beware that this is the
machines cutting zone. The top and bottom feed rollers have sharp teeth and
the flywheel cutting blades are not far from them. DO NOT PUT HANDS
INTO THIS AREA. Wearing protective gloves and using a piece of wood,
carefully clear jammed material inside feed chamber.
7. When clear, lift top feed roller via lifting tool, remove top feed M12 securing
screw, lower top feed roller and remove lifting tool.
8. Re-assemble feed tensioner springs and replace covers.

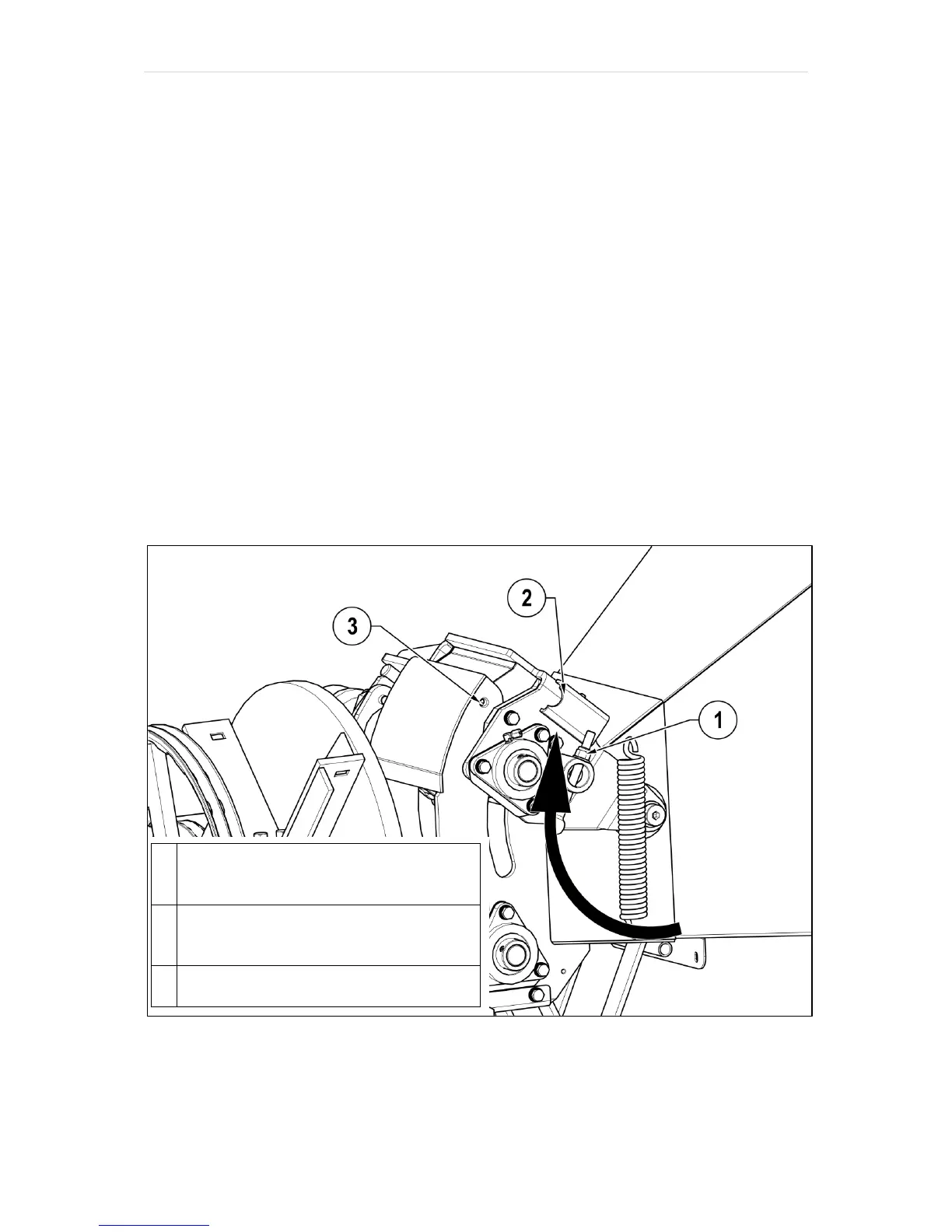

Figure 5
