FORST PT6 - PTO Assembly Parts

P a g e | 35

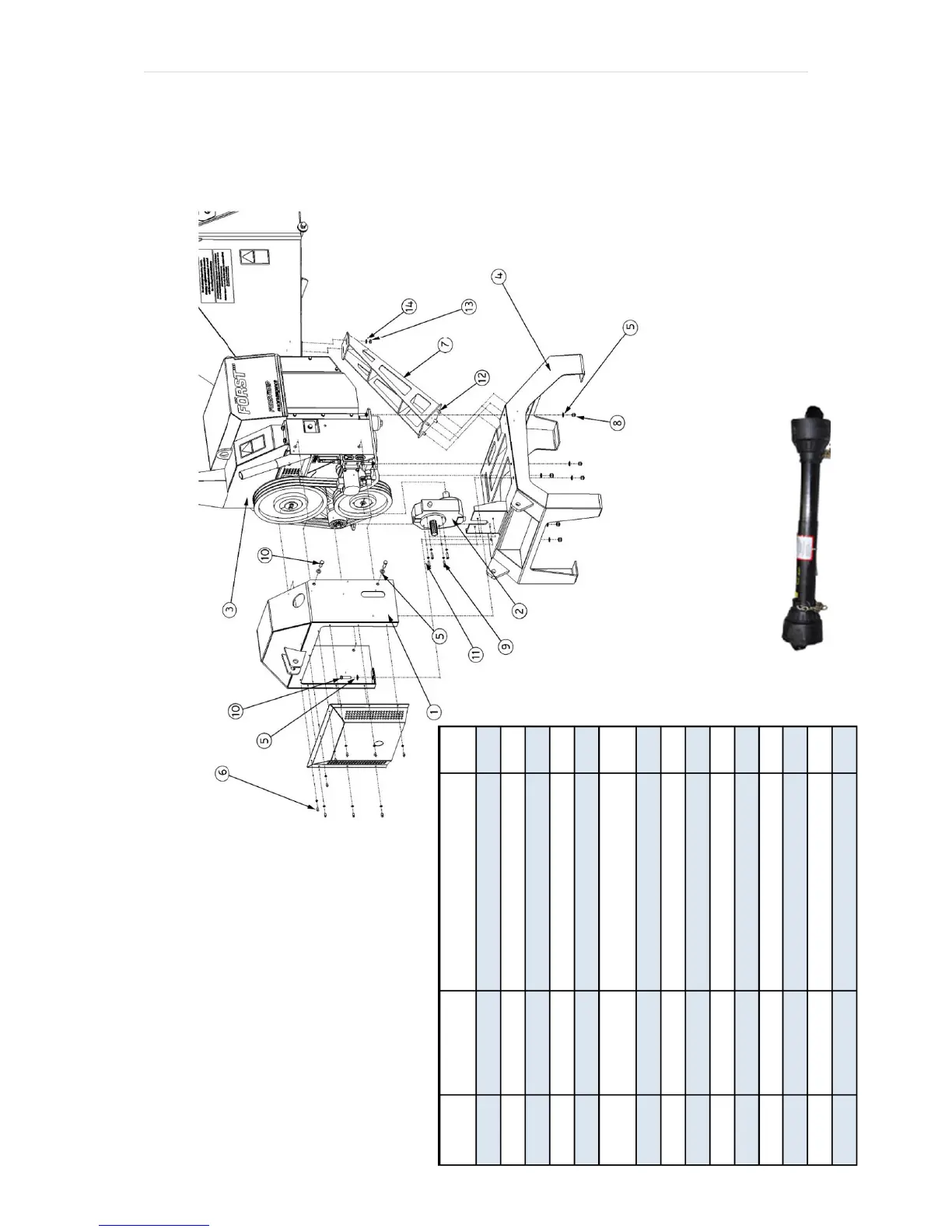

PTO Assembly parts drawing
ITEM
NO.
PART NO.
PART DESCRIPTION
QTY
1
20-19-006
Structural Top Subassembly
1
2
16-10-010
Gearbox
1
3
20-A-000
Chipper Assembly
1
4
20-19-004
Base Subassembly
1
5
12-14-003
M12 Washer
16
6
12-12-303
M6 x 16 Socket Button Head Screw
9
7
20-19-005
Feed Brace Subassembly
1
8
12-13-003
M12 nyloc nut
6
9
12-12-306
M6x30 Cap Head
4
10
12-12-601
M12 x 50 8.8 Hex Head screw
10
11
12-14-017
M6 Washer
13
12
12-12-506
M10x30 Hex Head
4
13
12-13-010
M10 Nyloc Nut
6
14
12-14-009
M10 Washer
10
15
16-10-011
PTO Shaft
1
