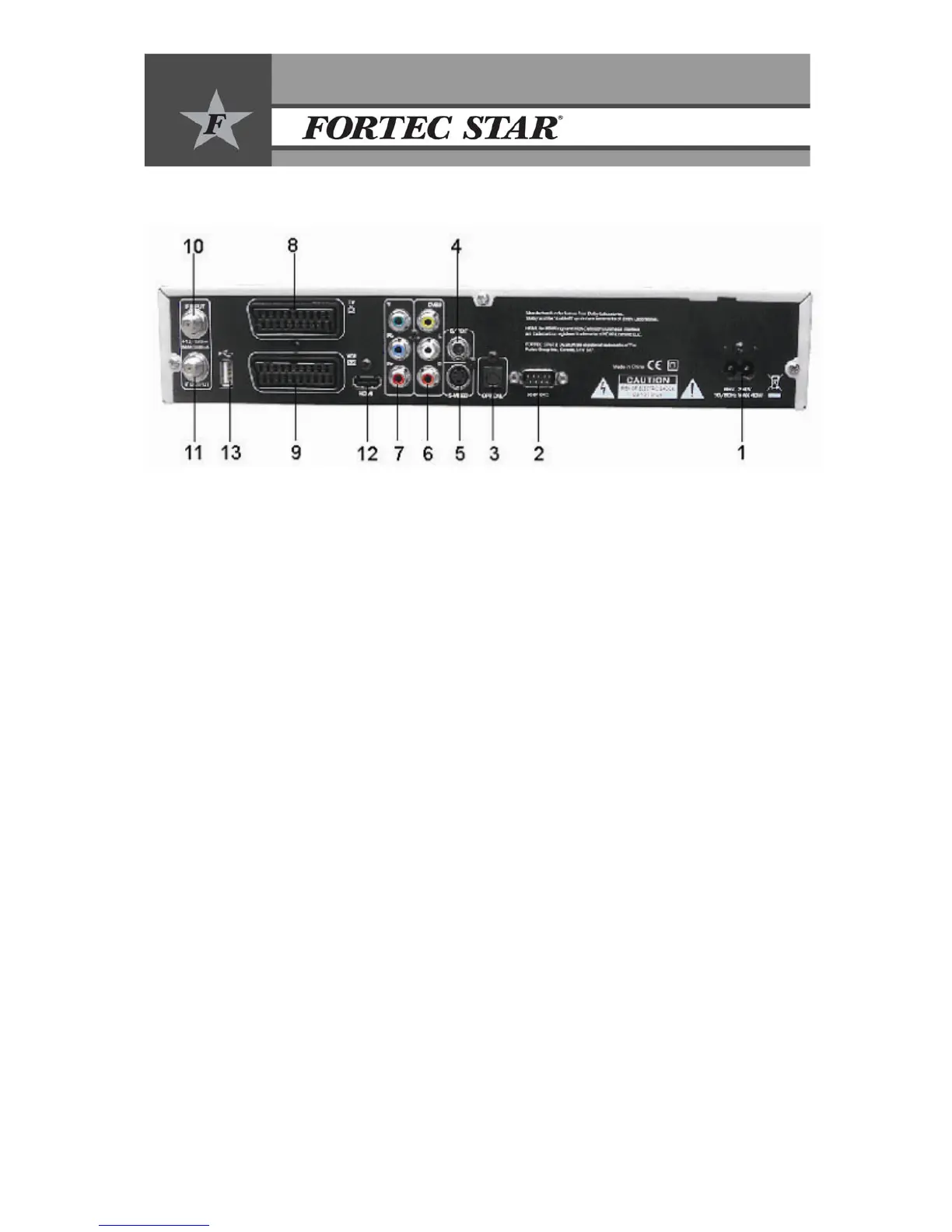

6.3 Rear Panel Connections
1. AC Main Connection: The input AC voltage range is 95V to 250V, 50/60Hz supply.
2. RS-232 Data Interface: Connection to a PC or other receiver for software update and channel
list data transfer.
3. Digital Audio Output (Optical): Optical digital audio output for connection to a Home
Theatre System with integrated audio digital decoder (Dolby Digital).
4. SPDIF: Digital audio output (Coaxial).
5. S-Video Output: Super Video output to TV.
6. CVBS / Audio (L) / Audio (R): Composite video, audio (L, R) output.
7. Component Video Output (Y/Pb/Pr): Y/Pb/Pr (Green, Blue, Red) connection to a TV or
VCR that accepts HD component video input.
8. SCART Connector (TV): Connection for audio and video signals to the TV set.
9. SCART Connector (VCR): Connection for audio and video signals to a VCR.
10. LNB Input: Connects the coaxial cable from the LNB.
11. LNB Loop-Through Output: If you have another satellite receiver and you wish to use the
same LNB, you can connect it to this "LNB loop-through" output jack.
12. HDMI
13. USB Rear Connection: To connect external USB memory for software update, play A/V
files and record (connect USB hard drive)
Note: Selectable from USB Front or USB Rear.
