19

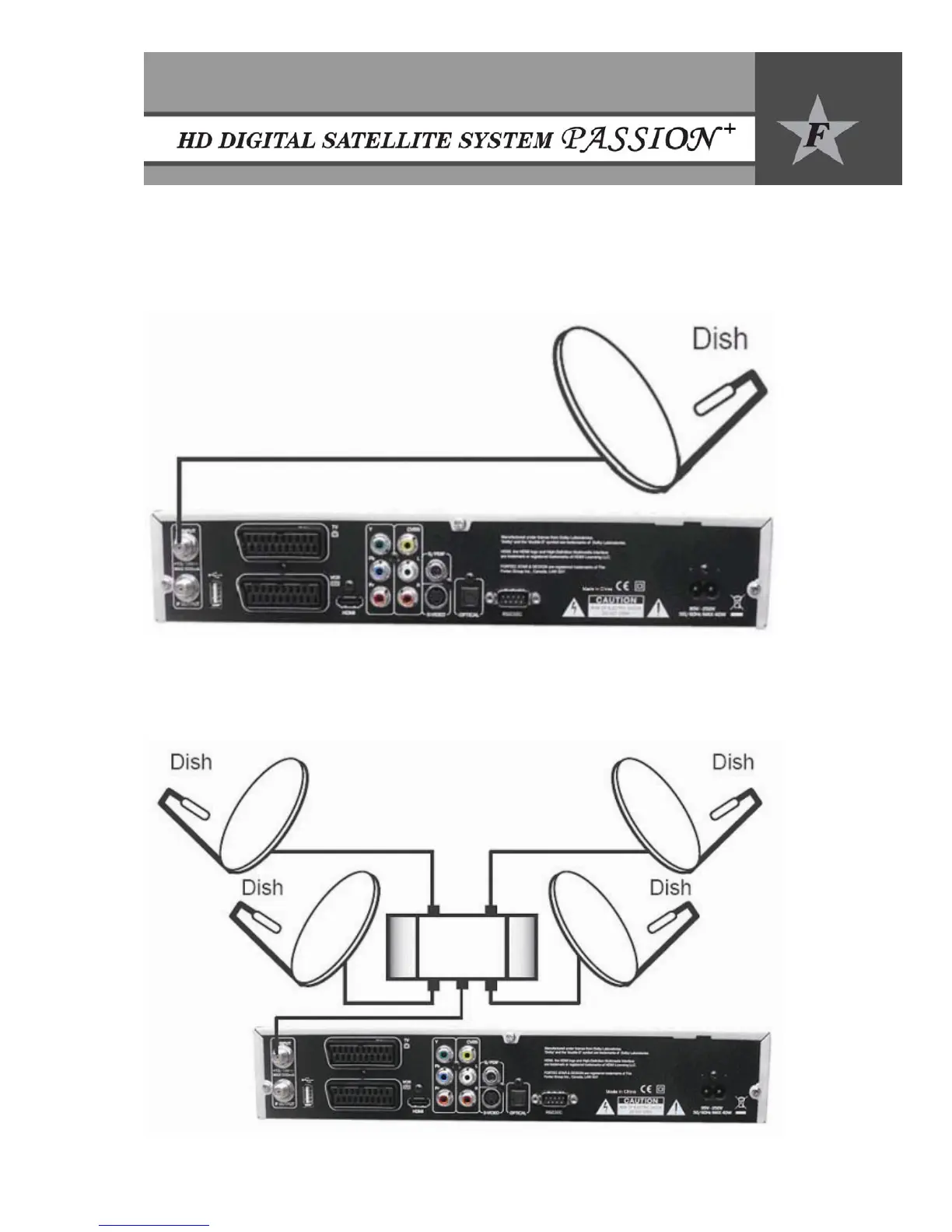

7.2 Connect your STB to Dish
7.2.1 Single Dish
• Connect the satellite antenna cable to IF Input port on your STB.
7.2.2 DiSEqC 1.0 Connection
• If you want to use a DiSEqC switch for more than one satellite, connect the LNB OUT from the
satellite dishes to the DiSEqC switch IN connectors, and connect the DiSEqC switch OUT
connector to the LNB IN of your receiver.
