RPS5-AC and RPS5-DC Power Supplies
The RPS5-AC and RPS5-DC power supplies are supported in the following devices:
• FES2402
• FES4802
• FES9604
• FES12GCF
The RPS5-AC and RPS5-DC power supplies are 100VAC @ 3.5A, 240 VAC @ 1.5A, 50-60Hz, and are auto-
sensing and auto-switching.
Figure 2.11 shows a rear view of a FastIron Stackable device containing one AC power supply. Figure 2.12 shows
a rear view of a FastIron Stackable device containing one DC power supply. The supplies are standard for all four
models. In addition, the supplies are the same as the ones used in the FastIron 4802, so you can exchange
supplies with the FastIron 4802 as well.

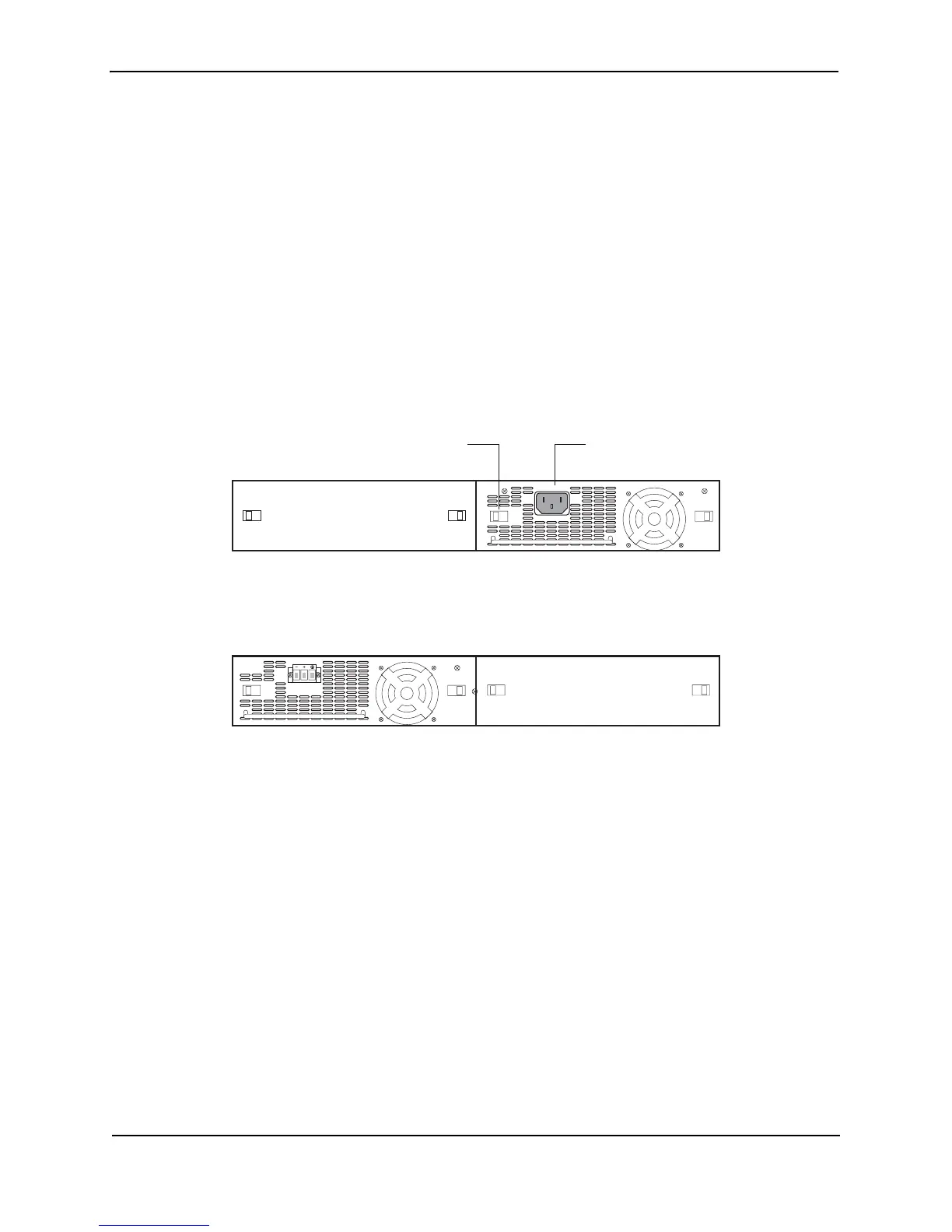

Figure 2.11 RPS5-AC power supply
Figure 2.12 RPS5-DC power supply
RPSX-424-AC and RPS-X424-DC Power Supplies
The RPSX-424-AC and RPS-X424-DC power supplies are supported in the following devices:
• FESX424
• FESX624
• FWSX424
• FESX424HF
The power supplies are 100VAC @ 3.5A, 240 VAC @ 1.5A, 50-60Hz, and are auto-sensing and auto-switching.
Plastic Latch
AC Power
Connector
Power Supply (standard)
