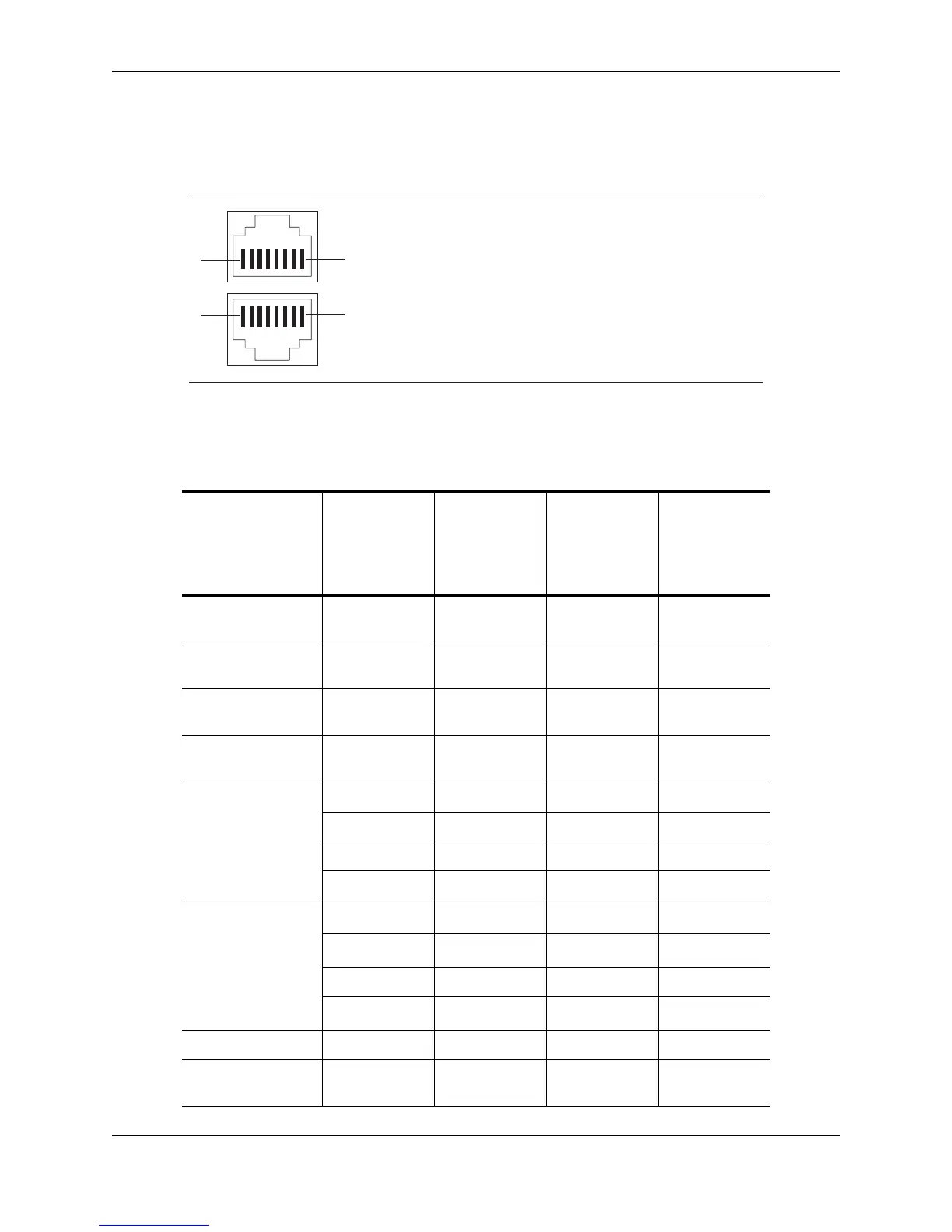

Figure 7.3 Pin assignment and signalling for 10/100BaseTX and 1000BaseT ports
Cable Specifications
Table 7.6: Cable length summary table
Fiber Type Core
Diameter
(microns)
Modal
Bandwidth
(MHz*km) or
Wavelength
(nm)
Range
(meters)
10Base-T/
100Base-TX
n/a n/a n/a 100 meters
1000Base-BX10 SMF 9 n/a 2 – 10000
(10km)
1000Base-LHA SMF 9 n/a 2 – 70000
(70km)
1000Base-LHB SMF 9 n/a 2 – 150000
(150km)
1000Base-LX MMF 62.5 500 2 – 550
MMF 50 400 2 – 550
MMF 50 500 2 – 550
SMF 9 n/a 2 – 5000
1000Base-SX MMF 62.5 160
2 – 200
a
MMF 62.5 200
2 – 275
b
MMF 50 400 2 – 500
MMF 50 500
2 – 550
c
1000Base-T N/A n/a n/a 100
10GBase-ZR SMF 1550 nm up to 80000
(80 km)
Pin Assignment Pin Number
1
2
3
4
5
6
7
8
Pin Number
1
2
3
4
5
6
7
8
8
1
1
8
MDI-X ports
RD+
RD-
TD+
Not used
TD-
Not used
Not used
Not used
100BaseTX and 1000BaseT
10BaseT
MDI-X ports
RD+
RD-
TD+
CMT
TD-
CMT
CMT
CMT
