Figure 2.13 shows a rear view of a FastIron Stackable device containing one AC power supply.
Figure 2.13 RPSX-242-AC power supply
Figure 2.14 shows a rear view of a FastIron Stackable device containing one DC power supply.
Figure 2.14 RPS-X424-DC power supply
RPS8-AC and RPSX-448-AC Power Supplies
The RPS8-AC power supplies are supported in the following devices:
• FES2402-POE
• FES4802-POE
The RPSX-448-AC power supplies are supported in the following devices:
• FESX448
• FESX648
• FWSX448
The RPS8-AC and RPSX-448-AC power supplies are auto-sensing and auto-switching. The supplies provide 600
watts of total output power, including +12VDC @ 10A to the system and -48VDC @ 10 A for Power over Ethernet
applications. The supplies provide 100-240 VAC input, 50-60Hz @ 9A to 3.2A.

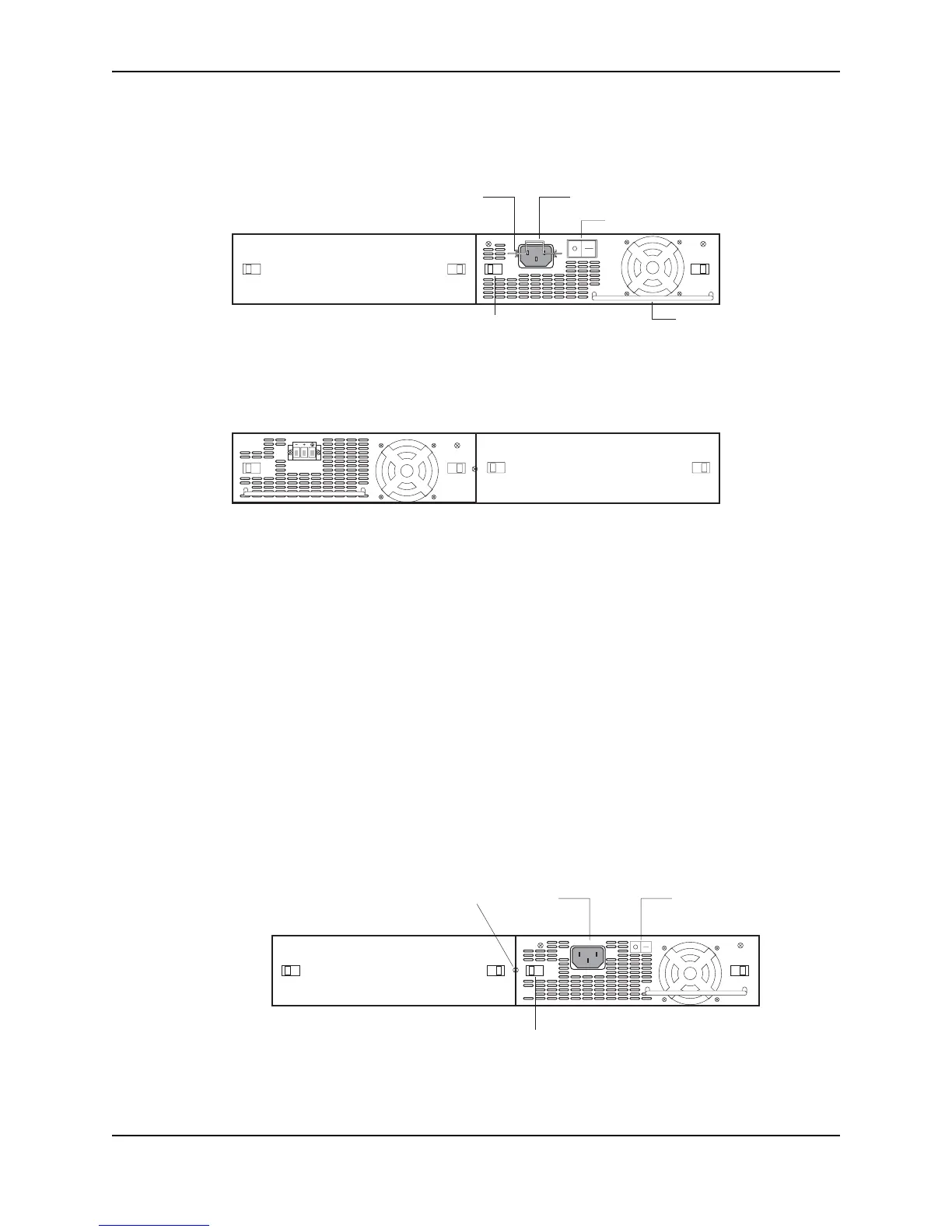

Figure 2.15 shows a rear view of a FastIron Stackable device containing one AC power supply.
Figure 2.15 RPS8-AC and RPSX-448-AC power supplies
Plastic Latch
AC Power
Connector
On/Off Switch
AC Cable
Retainer
Handle
Plastic Latch
AC Power
Connector
Power Supply (POE)
Power SwitchPower Supply locking screw
