Fourgroup Full-App 2 - Page 41

41

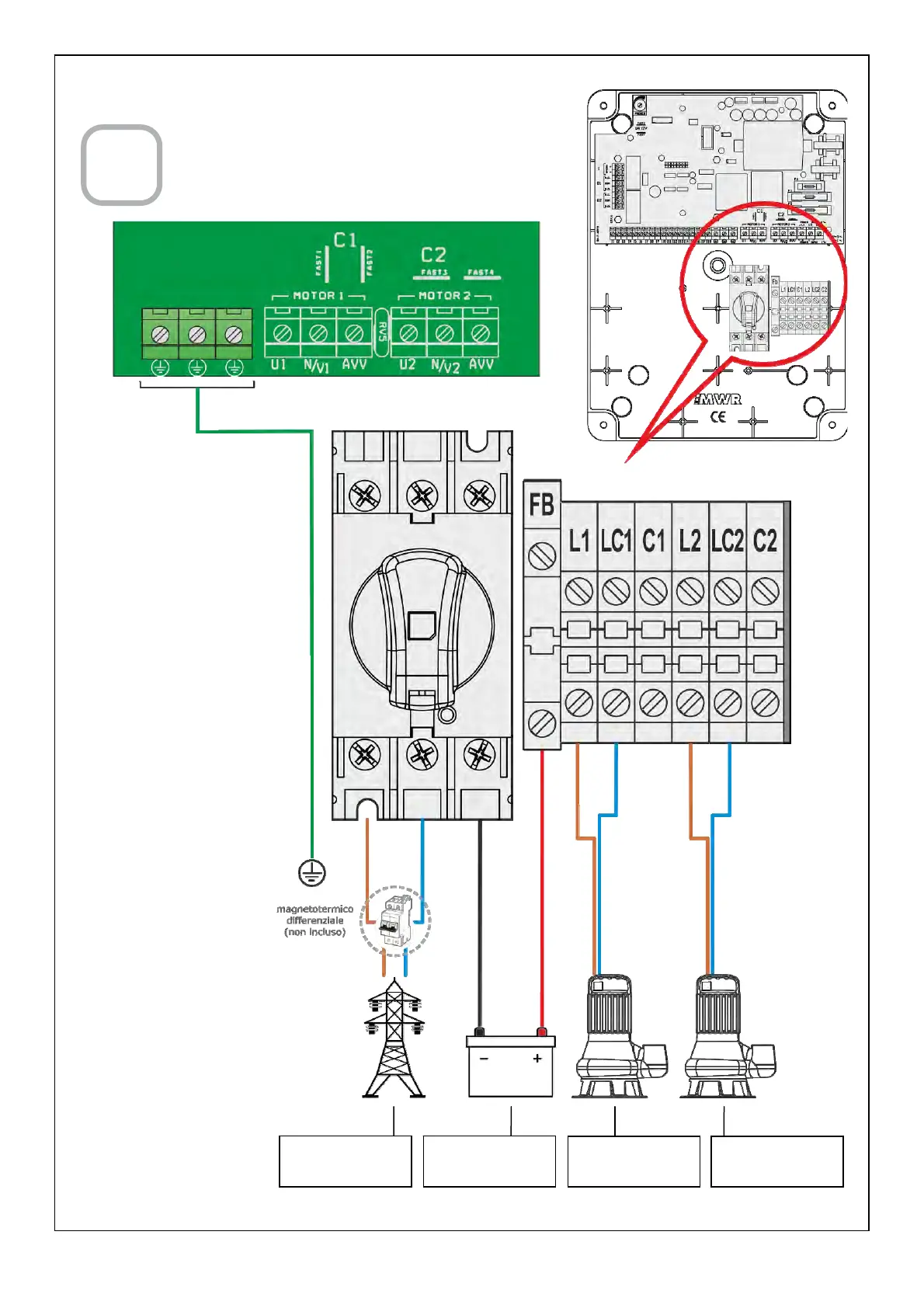

Connection of the power supply and single-phase pumps with
internal capacitor (embedded)
1~
PUMP 2
OUTPUT
1~230V
PUMP 1
OUTPUT
1~230V
12V BATTERY
GSM INPUT
(if present)
POWER
SUPPLY INPUT
1~230V
differential
magnetotermic
switch
(not included)
