7

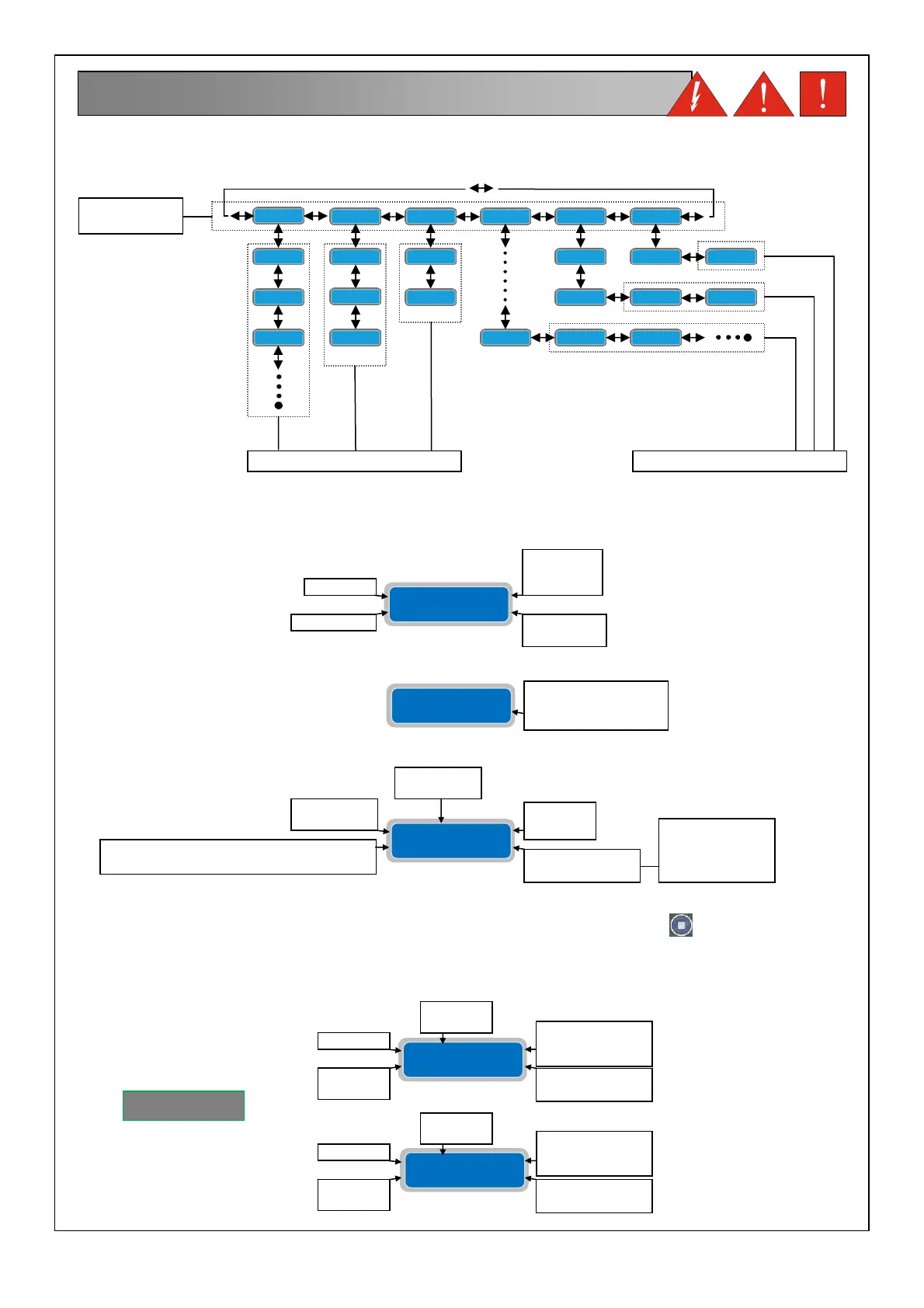

The overall menu settings are composed of a series of horizontal menus that allows access to sets of horizontal and
verticals parameters. As the following flowchart example:
NOTE: on the next page shows the complete flow chart programming
When the panel is turned on the display will light up:
Subsequently the start-up routine will execute:
At the end of the start-up routine the display will show following default main display:
The main default display shows the current working parameters. By pressing the button
is possible to move to
different screens and show the working parameter of the pumps (one screen for every pump; therefore, for the full-app 2,
there will be 2 screens to display the parameters of each pump):
7. DISPLAYS
HORIZONTAL
MENU’
VERTICAL PARAMETERS HORIZONTAL PARAMETERS
SOFTWARE
REVISION
YEAR
SOFTWARE
REVISION
MODEL
LANGUAGE
WAIT TIMER DELAY
RETURN POWER
Full.app³ 2015
(I) Rev.XX
Full.app³ 2015
(I) WaitXXsec
XXXV 50Hz gsm
Lev 0.00m Dig
GSM
PRESENCE
OPERATING
MODE
MAINS
VOLTAGE
P1 X.XA St XXX
Cosø X.XX h XXX
NUMBER OF
STARTS
HOURS OF
OPERATION
PUMP 1
COSø
MEASURED
P2 X.XA St XXX
Cosø X.XX h XXX
CURRENT
MEASURED
NUMBER OF
STARTS
HOURS OF
OPERATION
PUMP 2
COSø
MEASURED
CURRENT
MEASURED
FULL-APP²
Cln= CLEAN
drk= DARK
Dig= DIGIT
mlt= MULTITANK
UNIT OF SENSOR 4-20mA (if activated)
Lev 0.00m Or Lev 0.00bar
MAINS
FREQUENCY
To Next Page
