Fix the control panel for a stable support with screws and screw anchor using the holes arranged in the box (fig. 1) or the
fixing bracket if present.
To fix the cables in their terminals use a tool of the proper size to avoid the damaging of the screws or of their seat. If use
an electric screwier pay attention not to spoil the thread or the screws.
After the fixing, remove every plastic or metallic surplus (ex. Pieces of copper of the cables or plastic shavings of the box)
inside the box before suppling power.

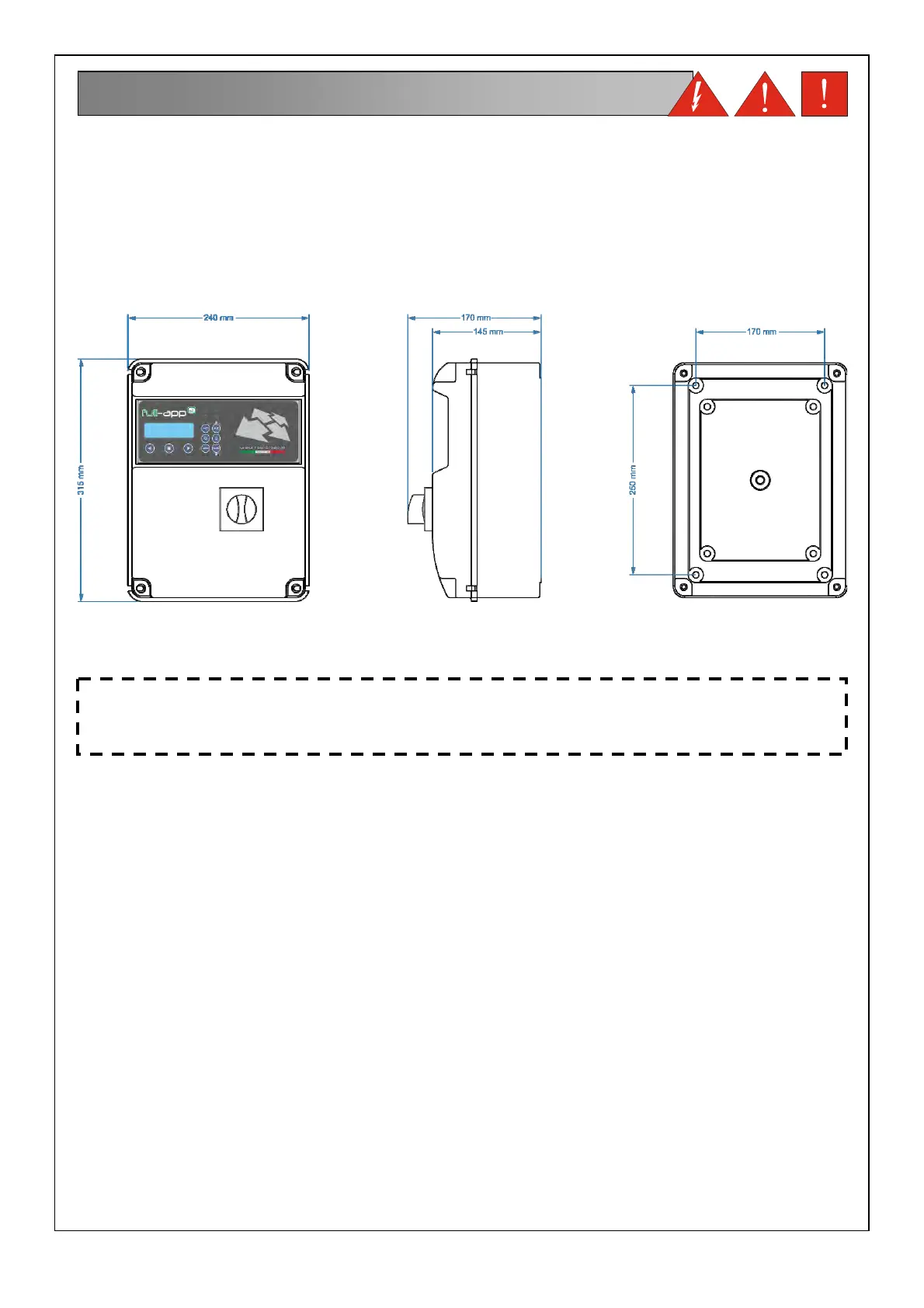

Fig.1
NOTE: do not install the control panel close to objects in contact with flammable liquids, water or gas.
Line of supply current
Connect the unit at ground before carrying out any other operation.
The voltage input corresponds to the data written on the panel and on the pumps:
( 400V ± 10% 50/60Hz x il FULL APP 2-T)
( 230V ± 10% 50/60Hz x il FULL APP 2-M).
Make sure that the power-supply-cable can bear the nominal current and connect it to the terminals of the general switch
of the control panel.
If the cables are exposed, they must be appropriately protected.
The line must be protected with a differential magnetotermic switch measured in accordance with the regulations locally in
force.
Line of motor power supply
Connect the unit at ground before carrying out any other operation.
The voltage input corresponds to the data written on the motors:
(400V±10% 50/60Hz three-phase)
(230V±10% 50/60Hz single-phase).
Doing some starting make sure that the motors respect the right direction of rotation usually indicated by an arrow
printed on the motors.
5. INSTALLATION
ATTENTION: the display / sinoptic located on the cover of the control panel is connected through one or
more cables (even cable type flat) to electronic control unit installed on the bottom of the control panel.
Pay utmost attention and care by opening the electric panel.
Once opened the control panel, support the cover so as not to damage / tear the connection cables.
