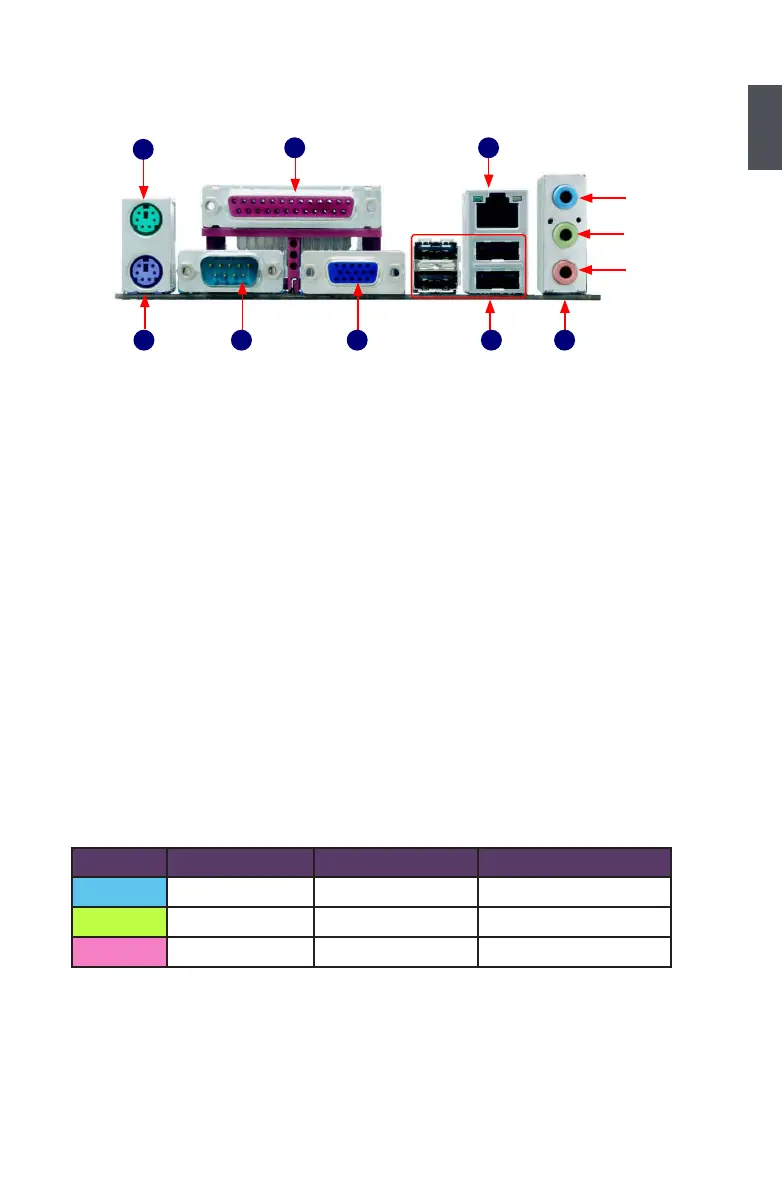

1-3 Back Panel Connectors
1. PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse.
2. PS/2 Keyboard Port
Use the lower port (purple) to connect a PS/2 keyboard.
3. Serial Port
This is output of RS232 COM1 port.
4. Parallel Port
This connector provides printer port interface.
5. VGA Port
To connect with external display devices, such as monitor or LCD display.
6. USB Ports
7. Audio Ports
* : Please refer to Chapter 4, and install the Realtek audio driver (in CD) to assign the audio
output ports for different applications of 2/4/5.1 channels. The fundamental audio outputs are
depicted in the table above.
VGA Port
LAN Port
PS/2 Keyboard
Port
PS/2 Mouse Port
Line Out
Microphone In
Line In
1
7 5 6
2
8
USB Port
Audio Ports
Port 2-channel 4-channel 5.1-channel
Blue Line In Rear Speaker Out* Rear Speaker Out*
Green Line Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Center/Subwoofer Out*
Serial Port
3
Parallel Port
4
