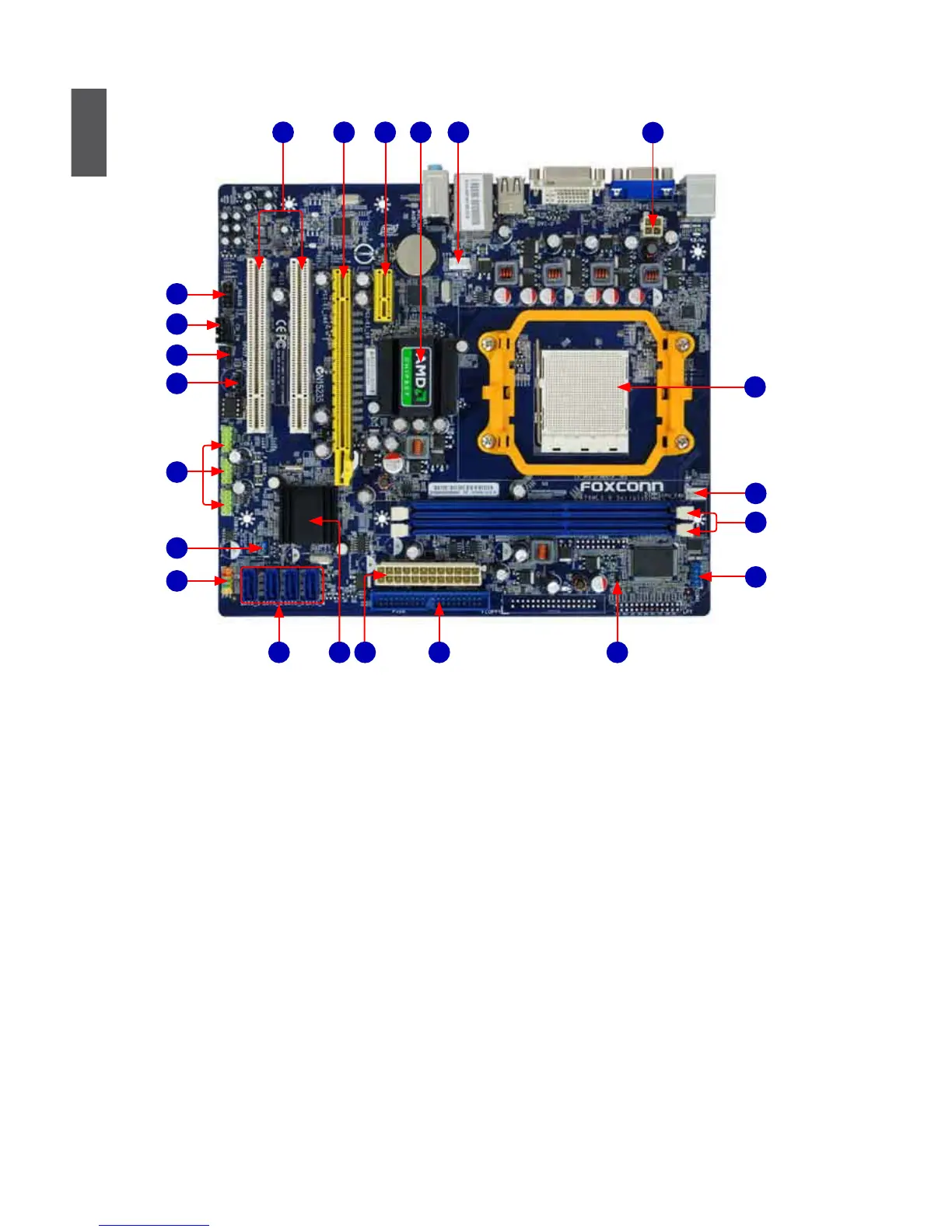

1-2 Layout
1. 4-pin ATX 12V Power Connector
2. SYS_FAN Header
3. North Bridge: AMD RS740G
4. PCI Express x1 Slot
5. PCI Express x16 Slot
6. PCI Slots
7. Front Audio Connector
8. CD_IN Connector
9. S/PDIF Out Connector
10. Speaker Connector
11. Front USB Connectors
12. Clear CMOS Jumper
13. Front Panel Connector
14. SATA Connectors
15. South Bridge: AMD SB710
16. 24-pin ATX Power Connector
17. IDE Connector
18. Chassis Intrusion Alarm Header
19. COM1 Header
20. DDR3 DIMM Slots
21. CPU_FAN Header
22. CPU Socket
Note : The above motherboard layout is for reference only, please refer to the physical mother-
board for detail.
