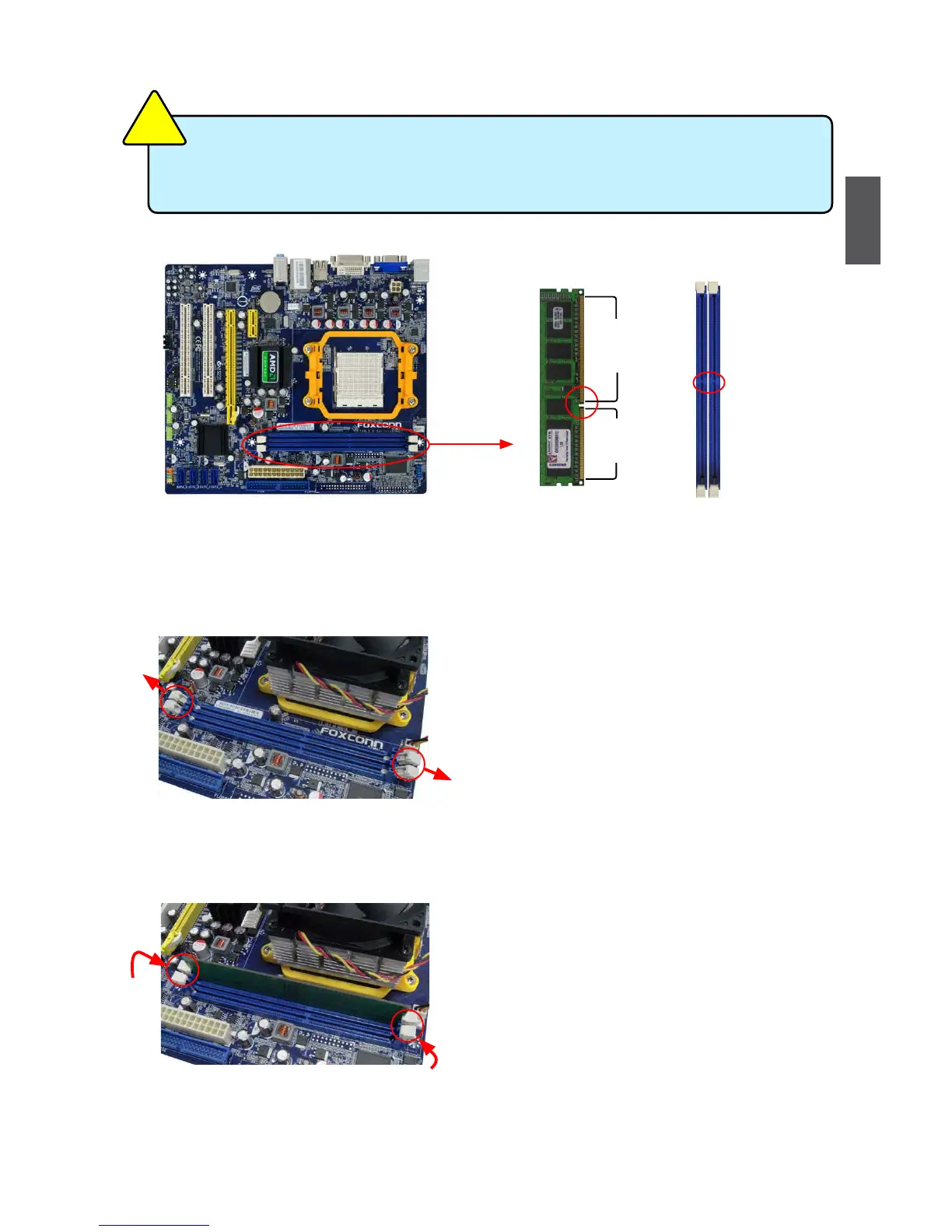

Installing a Memory
If you take a look at front side of memory module, it has asymmetric pin counts on both sides separated
by a notch in the middle, so it can only t in one direction. Follow the steps below to correctly install
your memory modules into the sockets.
Step 1:
Spread the clips at both ends of the memory socket.
Place the memory module onto the socket, then put
your ngers on top edge of the module, and push
it down rmly and seat it vertically into the memory
socket.
Step 2:
The clips at both ends of the socket will snap into place
when the memory module is securely inserted.
Before installing a memory module, make sure to turn off the computer and unplug the
power cord from the power outlet to prevent damage to the memory module. Be sure
to install DDR3 DIMMs on this motherboard.
C
A
U
T
I
O
N
!
144-Pin
96-Pin
Notch

Foxconn A74ML 3.0 Series Specifications

General

Form Factor	Micro ATX
Memory Type	DDR3
Memory Slots	2 x DIMM
Maximum Memory	8 GB
Storage Interface	4 x SATA 3Gb/s
PS/2	1 x PS/2 Keyboard, 1 x PS/2 Mouse
Video Ports	1 x VGA
Dimensions	244mm x 244mm
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	Realtek ALC662 6-channel HD Audio
LAN	10/100 Ethernet
Power Pin	24-pin ATX, 4-pin ATX 12V
Expansion Slots	1 x PCIe x16, 1 x PCIe x1
